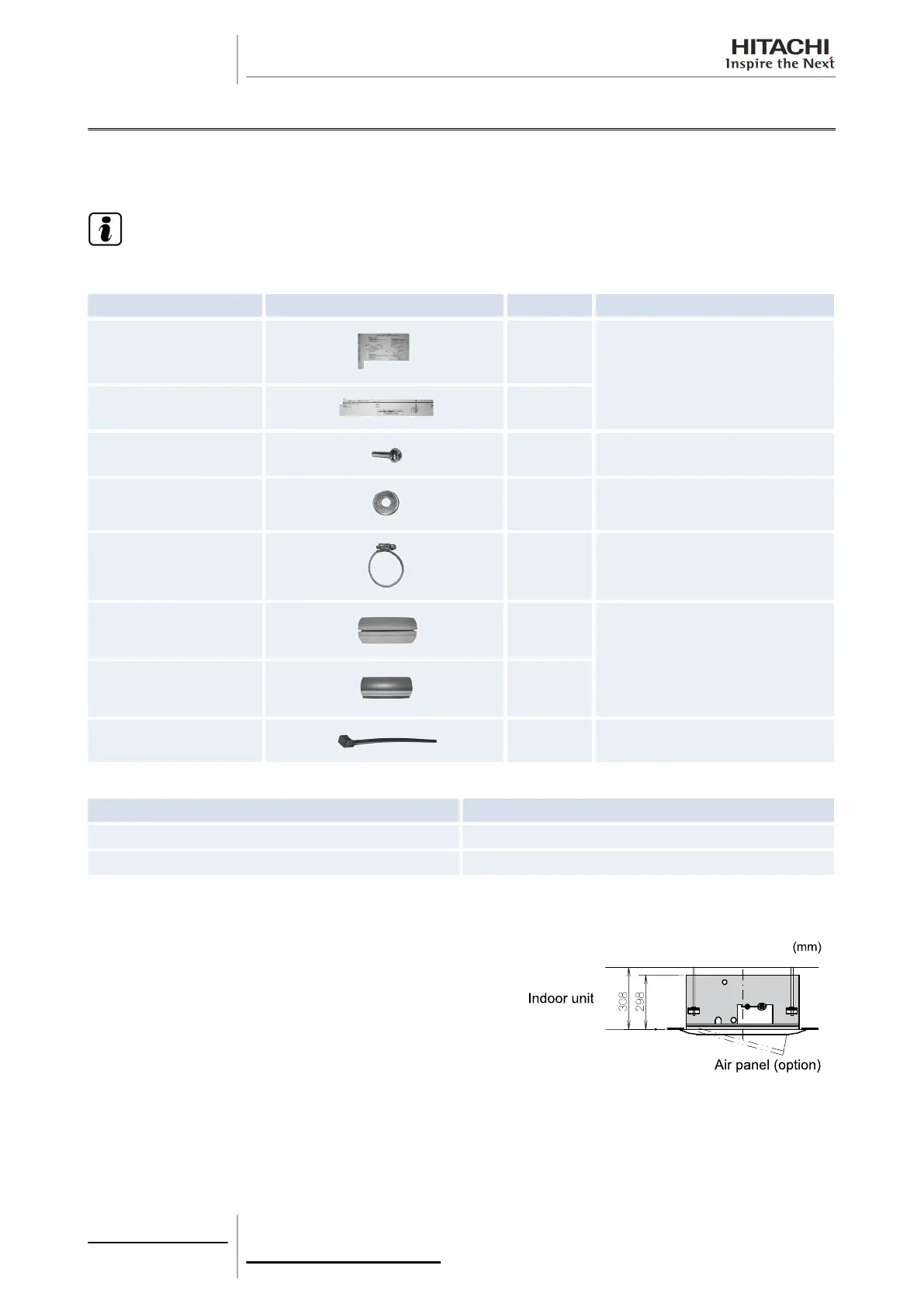

2.3 RCD - 2-way cassette
2.3.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Template 1
To define the position of the unit and
adjust the necessary opening in the
false ceiling.
Scale 1
Philips head screw 6 To adjust the template.
Flat washer 8 For unit suspension.
Wire clamp 1 For the drain hose connection.
Insulation (26ID x 100 mm) 1
For the gas refrigerant pipe
connection.
Insulation (26ID x 85 mm) 1
Clamp 8
To attach the gas refrigerant pipe
insulation
Applicable air panel
Indoor unit
Applicable air panel
RCIM-(1.0-3.0) P-N23DNA
RCIM-(4.0-5.0) P-N26DNA
2.3.2 Unit installation
Initial checks
Check that there is enough space between the false ceiling and the
ceiling of the room to house the unit. Its height must be less than
the measured distance. Consult the corresponding chapter of the
Technical Catalogue for information on the unit measurements.
Before starting installation, plan the direction of the pipes and wiring required. Also bear in mind that there must be enough
space around the unit for installation and maintenance.
Install a service hatch near the pipe connection area and electrical junction box for installation and maintenance work.
2 Unit installation
30
SMGB0063 rev. 1 - 10/2010
