2.7 RPK - FSN2M Wall mounted
2.7.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.

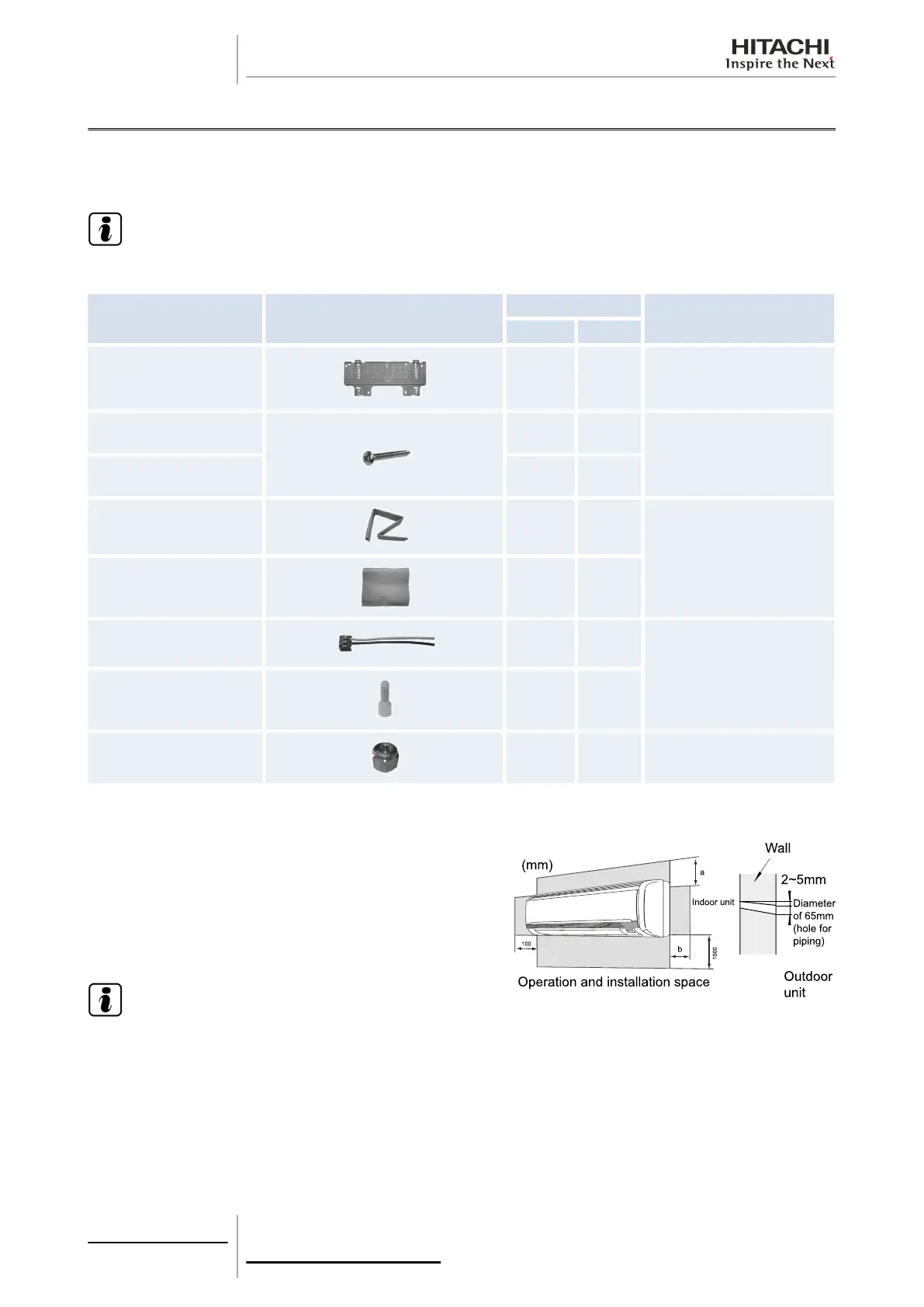

Accessory Appearance
Quantity
Purpose
(1.5-2.0) (2.5-4.0)
Mounting bracket 1 1 For unit suspension.
Philips head screw
Ø4.1 x 25 mm
6 8
For bracket suspension.
Philips head screw
Ø4.1 x 40 mm
2 4
Insulation piping 1 1
For the gas refrigerant pipe
connection.
Insulation 1 1
Cable bundle with
connector
1 –
Cable for the PC-ART system
Connector 2 –
Nut 1 1 For pipe installation
2.7.2 Unit installation
Initial checks
Check that there is enough space around the unit. Consult the
corresponding chapter of the Technical Manual for information on
the unit measurements.
Before starting installation, plan the direction of the pipes and wiring
required. Also bear in mind that there must be enough space
around the unit for installation and maintenance.
N O T E
Bear in mind the air distribution from the unit to the room and select a suitable place for an even air temperature
in the room.
Check that the drain hose can be installed maintaining the necessary down-slope.
2 Unit installation
50
SMGB0063 rev. 1 - 10/2010
