10.3.8 Removal of the drain pan
Remove the air inlet grille as indicated in chapter Removal of the
long-lasting filter and the air inlet grille, see on page 287.
Disconnect the cable between the indoor and outdoor unit and
separate all of the connectors from the electrical box.
Remove the fan duct and the fan as indicated in chapter Removal
of the fan duct and the fan, see on page 288
Empty the pan of water by removing the rubber plug.
C A U T I O N
• The plug is sealed with silicone but can be easily removed
by pulling on the bottom of it.
• Do not use a knife or similar to remove the rubber plug, as
this could damage it.
• Do not remove or damage the lower plug insulation when
refitting.
Check that the drainage hole is not blocked.

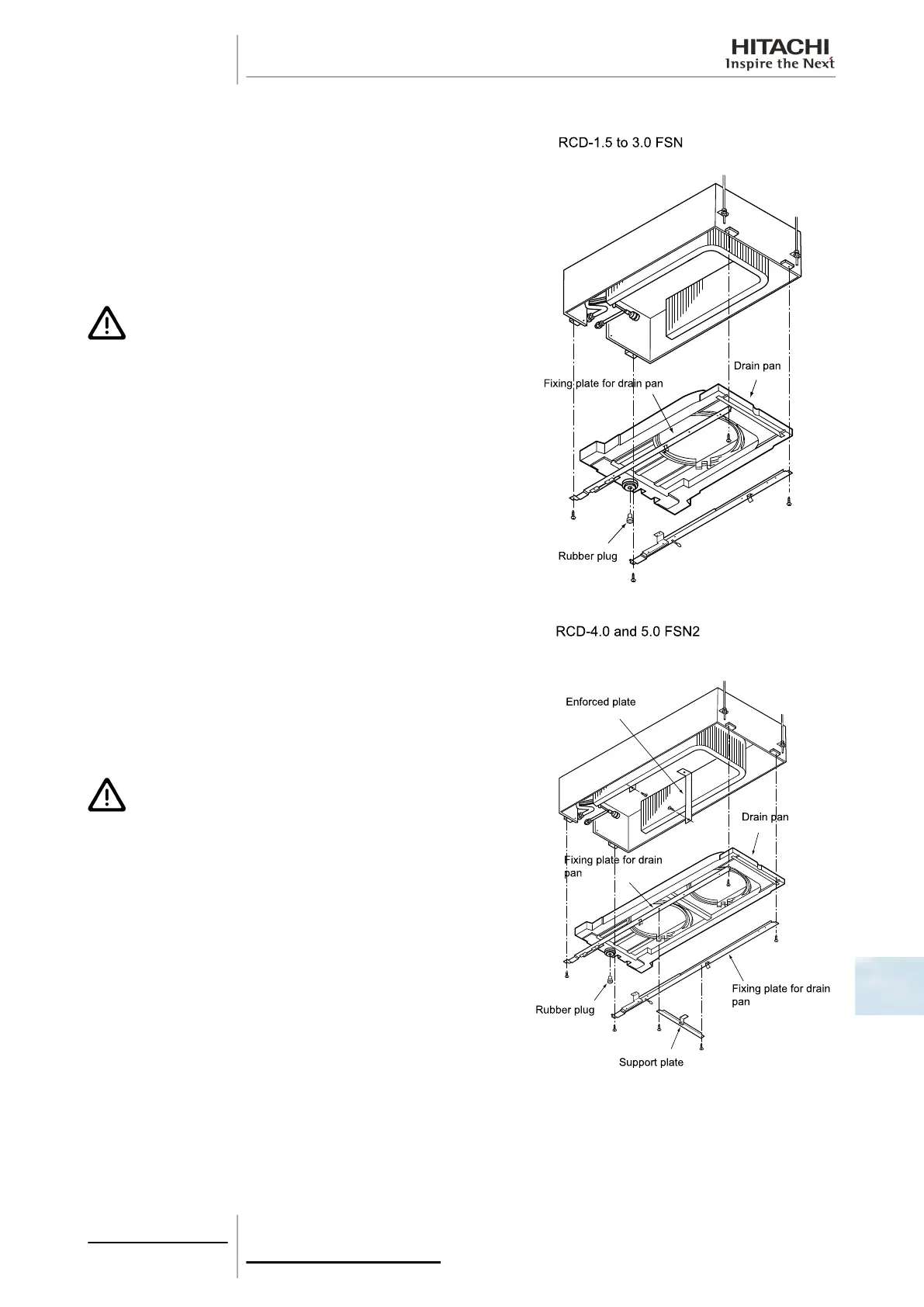

RCD-(1.0-3.0)FSN2: remove the two screws securing the
reinforcement plate to the drain pan securing plate.
RCD-(4.0/5.0)FSN2: remove the two screws securing the support
plate to the drain pan securing plate and remove it.
Remove the two drain pan securing plates and remove it.
C A U T I O N
Do not use a sharp tool, such as a screwdriver, to fit the rubber
plug, as this could damage it.
