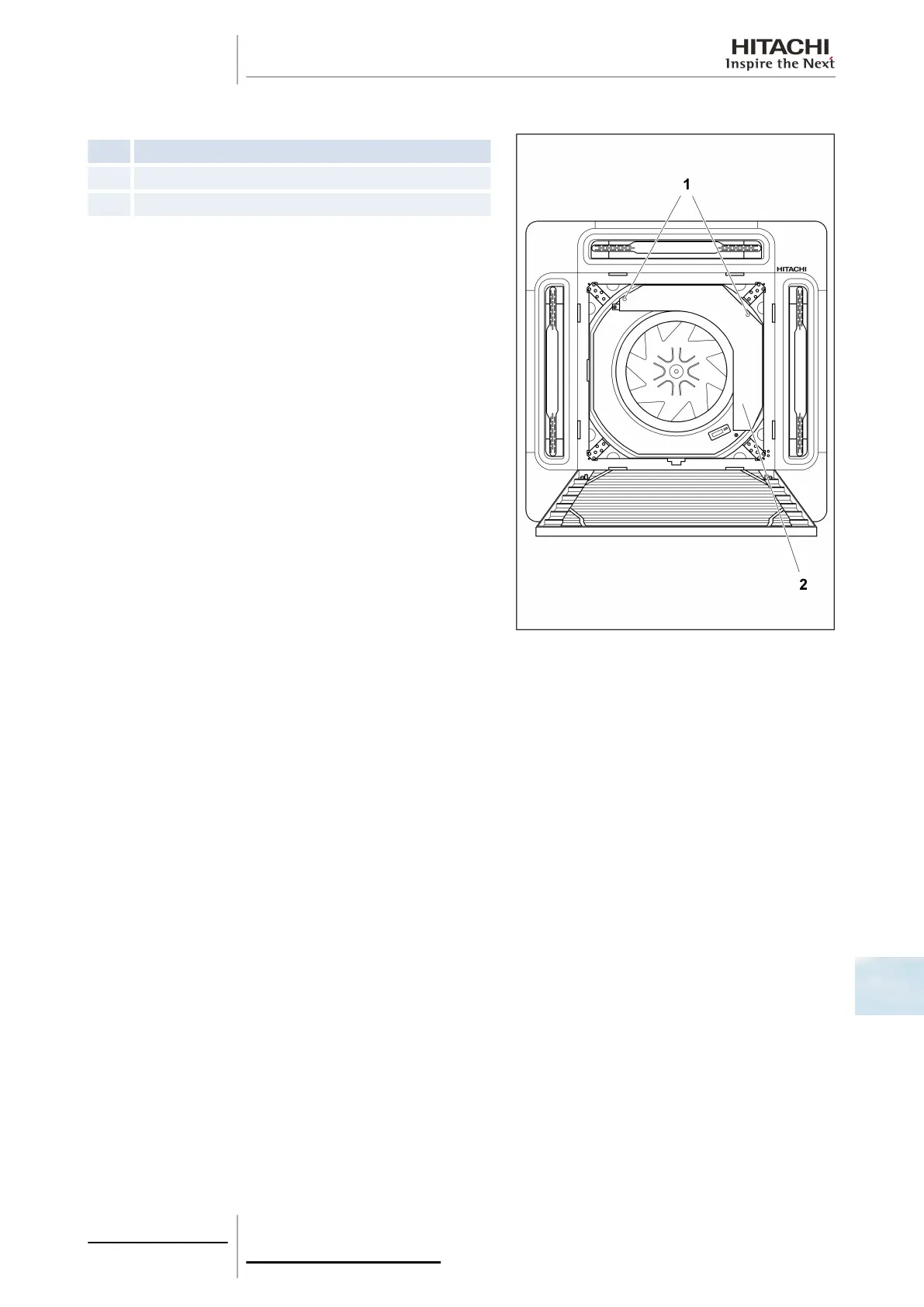

10.1.3 Removal of the electrical box cover
Nº
Part
1
Screws
2
Electrical box cover
The electrical box can be removed by opening the air inlet grille.
Remove
the
two
set
screws
from
the
electrical
box
cover
and
remove it.
10 Servicing
269
SMGB0063 rev. 1 - 10/2010
10
280
282
