the
lower
side
of
the
right
cover
and
release
the
upper
side
lock.

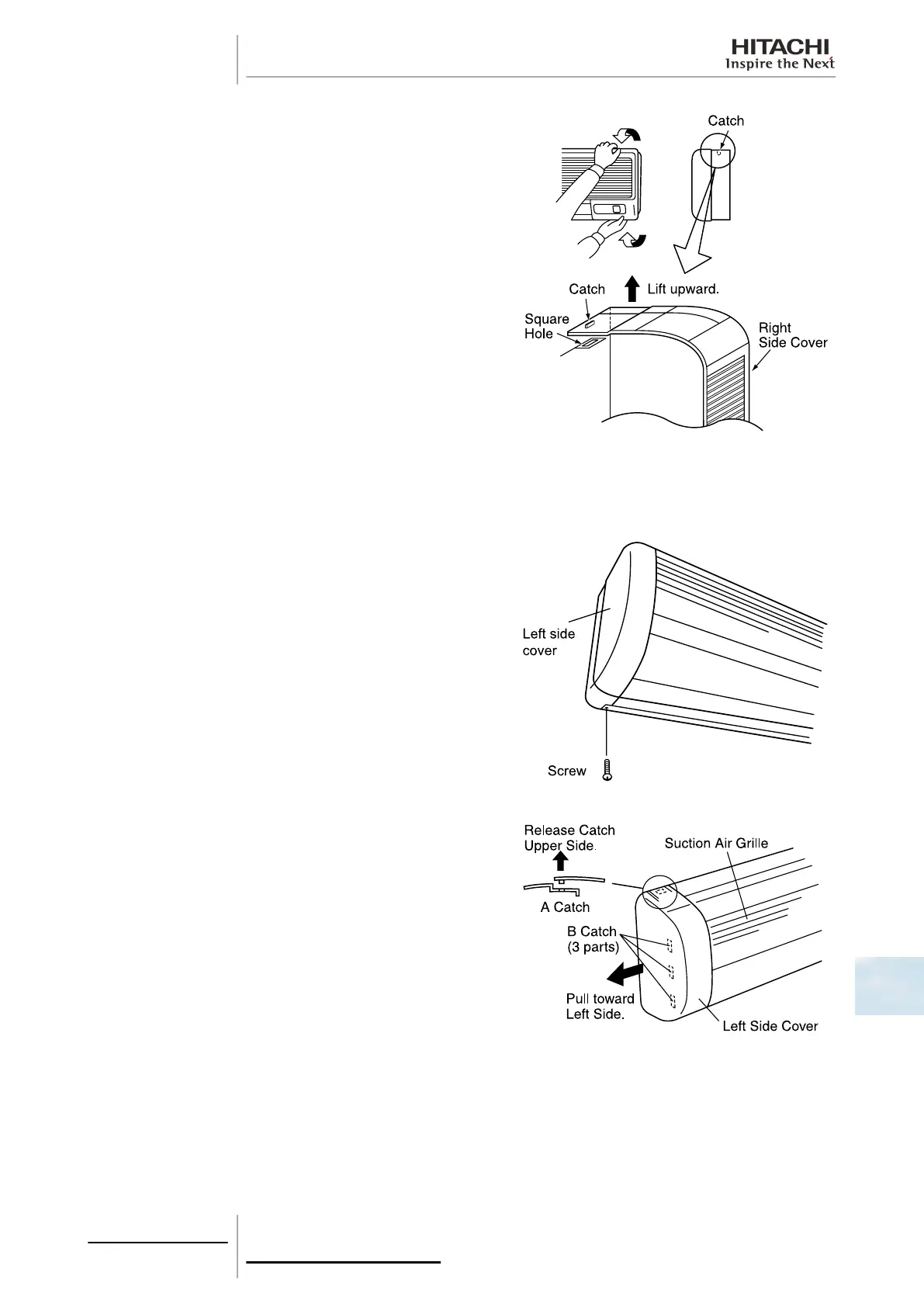

10.8.4 Removal of the suction air grille (only RPK-(2.5-4.0)FSN2M)
Remove the front panel as indicated in Section
Removal of the front panel
, see on page
323
.
Remove the screw from the left cover.
Release the latches -A- and -B- on the left cover.
10 Servicing
327
SMGB0063 rev. 1 - 10/2010
10
338
340
