N O T E

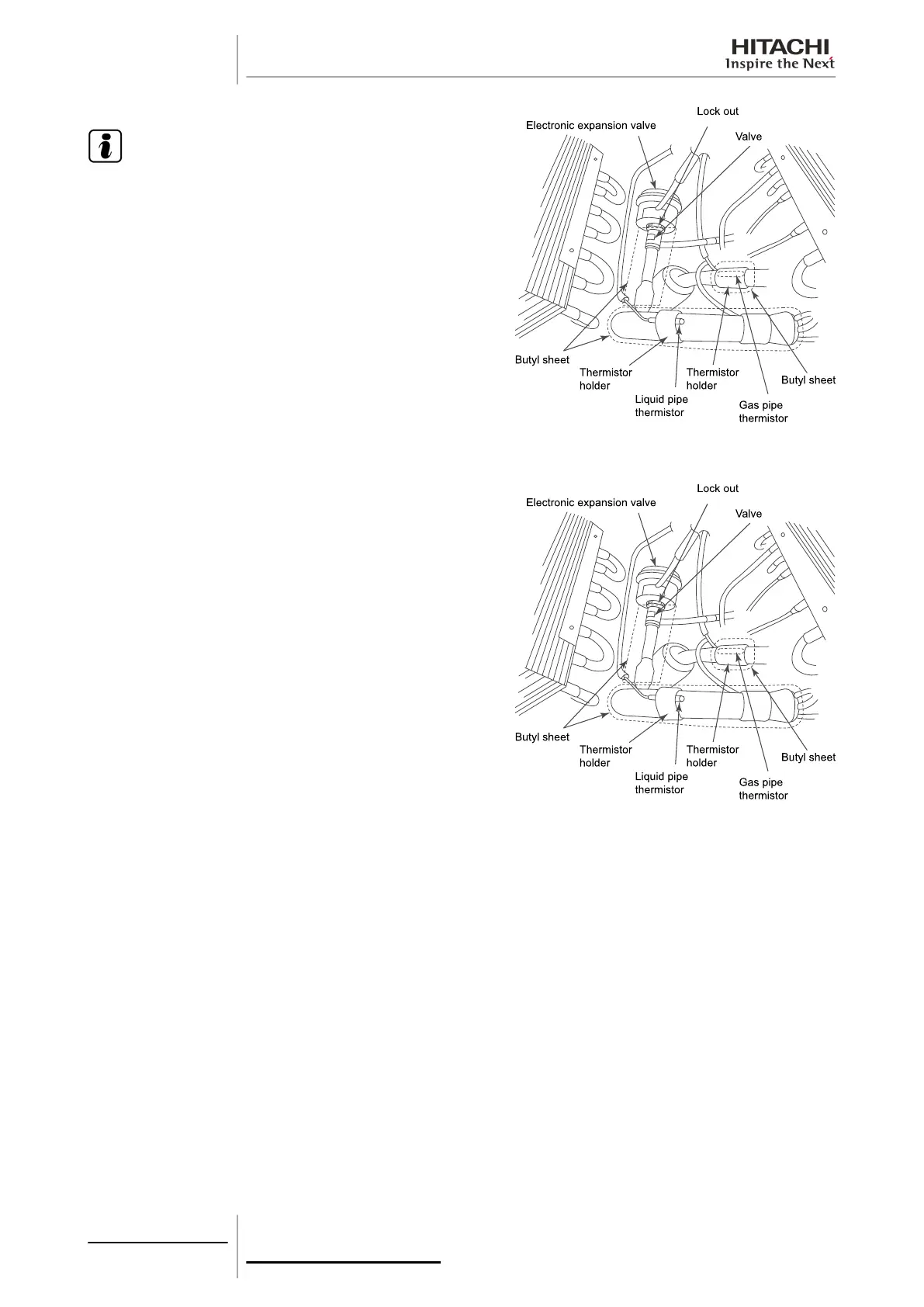

• The thermistor protection and securing system is the
same on the gas and liquid pipe.
• The thermistors are secured with brackets.
10.2.12 Removal of the electronic expansion valve coil
Remove the optional air panel in line with the instructions given in
chapter Removal of the optional air panel, see on page 278.
Remove the fan duct and the fan as indicated in chapter Removal
of the fan duct and the fan, see on page 280.
Remove the drain pan as indicated in chapter Removal of the drain
pan, see on page 281.
Remove the electronic expansion valve butyl sheet.
Secure the body of the valve using an appropriate wrench and
loosen the nut with another wrench, turning it anti-clockwise.
10 Servicing
284
SMGB0063 rev. 1 - 10/2010
