Hitachi RCI User Manual

RPK-(2.5-4.0)FSN2M
RPK-(2.5-4.0)FSN2M

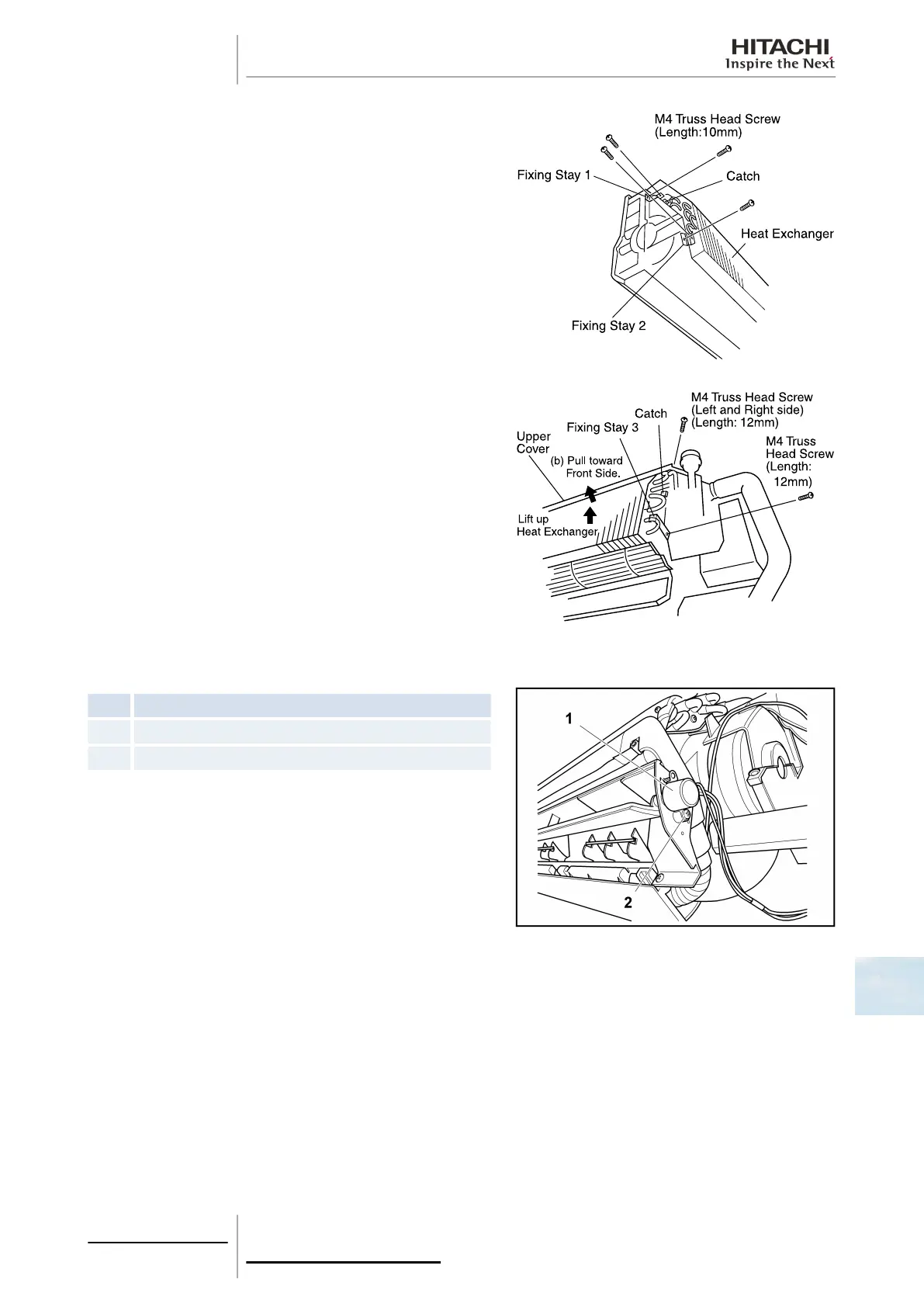

10.8.10 Removal of the AS motor
Nº
Part
1 AS motor
2 AS motor set screw
Remove the front panel as indicated in Section Removal of the front
panel, see on page 323.
Remove the electrical box as indicated in section Remove the
electrical box panel, see on page 329.
Remove the screws securing the AS motor.
Remove the AS motor sideways to remove it from the louver shaft.
To fit the AS motor, insert the motor shaft into the D-shaped
grooves in the louver, following the removal procedure in reverse
order.
10 Servicing
339
SMGB0063 rev. 1 - 10/2010
10
