10.2 RCIM - 4-way cassette (1.0-2.0)FSN2 (compact)

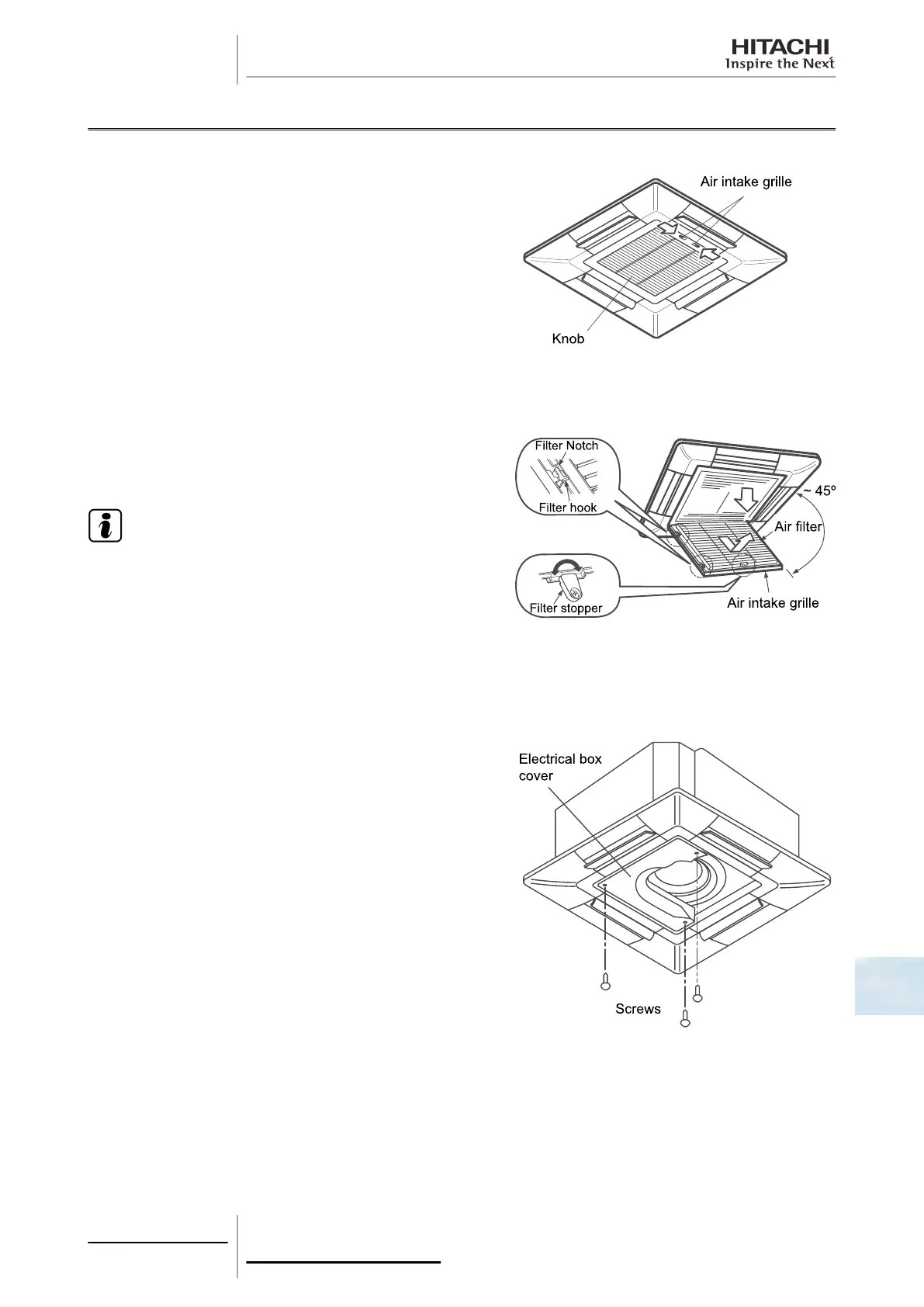

10.2.1 Removal of the air filter
The long-lasting filter is located inside the air inlet grille.
Press the buttons in the direction indicated by the arrows and open
the air inlet grille.
Remove the filter from the grille by holding onto the lower part of
the grille and the filter and detaching the blocked part.
10.2.2 Removal of the air inlet grille
Lift the grille approximately 45° and release the securing chain.
Remove the grille by sliding it upwards and forwards.
N O T E
• If the chain is released and the grille angle is at 90°, the
grille cannot be removed. Furthermore, the plastic
supports could break.
• If the louvers are to be moved, for example for cleaning
purposes, select automatic swing mode to move the four
louvers to the same position.
10.2.3 Removal of the electrical box cover
The electrical box can be removed by opening the air inlet grille.
Remove the three set screws from the electrical box cover and
remove it.
10 Servicing
277
SMGB0063 rev. 1 - 10/2010
10
