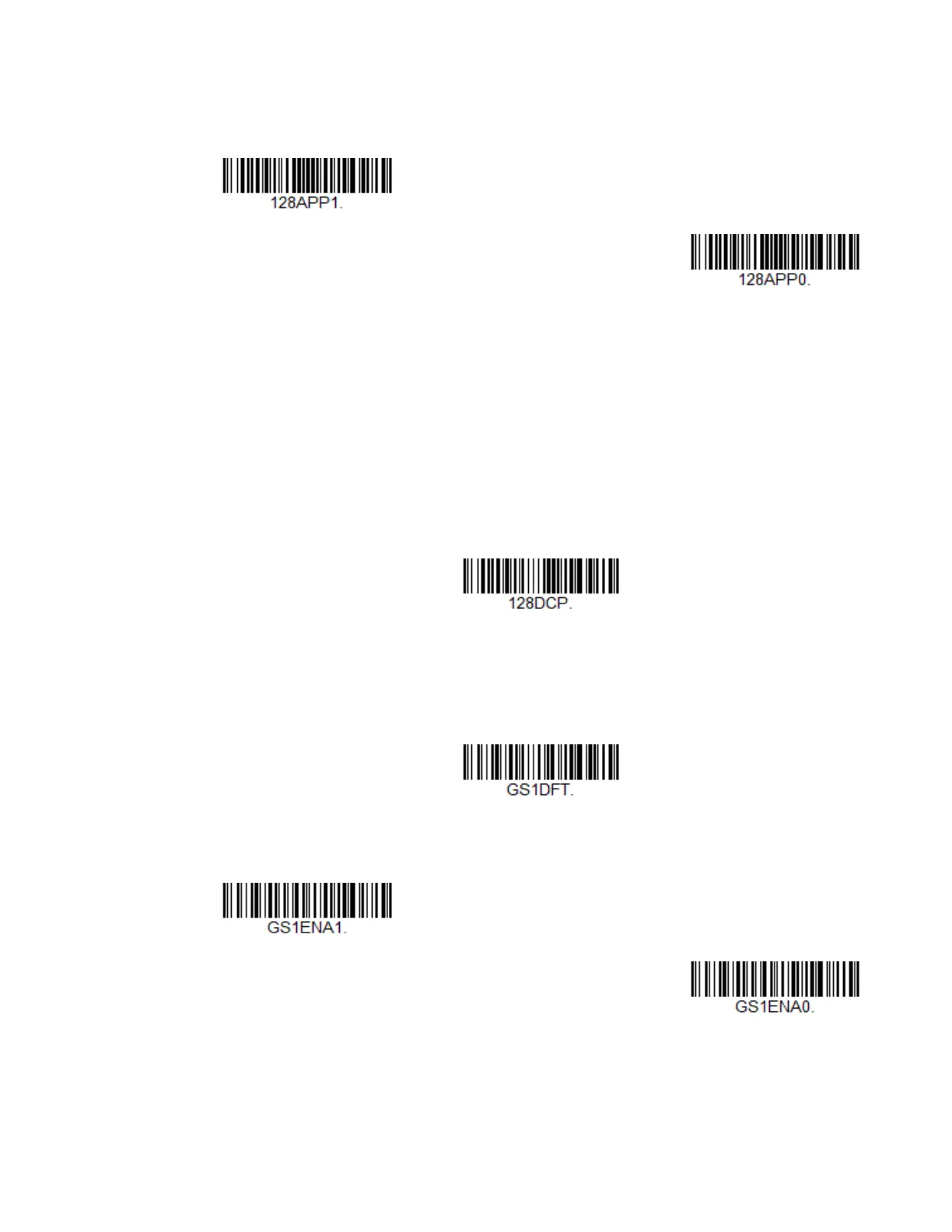

8680i User Guide 111
bar codes until it reads a Code 128 bar code that does not have the append trigger.
The data is then transmitted in the order in which the bar codes were read (FIFO).
Default = Off.
Code 128 Code Page
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the one
the host program is expecting. If this is the case, scan the bar code below, select
the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 228), and scan the value and the Save bar code
from the Programming Chart, beginning on page 235. The data characters should
then appear properly.
GS1-128
<Default All GS1-128 Settings>
GS1-128 On/Off
To Next Page
