Honeywell 8680i User Manual

8680i User Guide 27
8680i Is Out of Range
The 8680i is in communication with its host, even when it is not transmitting bar
code data. Whenever the 8680i can’t communicate with the host for a few seconds,
it is out of range. If the 8680i is out of range and you scan a bar code, the 8680i
issues an error tone indicating that there was no communication with the host.
Refer to Out-of-Range Alarm,page 28 and Auto Reconnect Mode,page 24.
8680i Is Moved Back Into Range
The 8680i relinks if the 8680i or the host have been reset, or the 8680i comes back
into range. If the 8680i relinks, you will hear a single chirp when the relinking pro-
cess (uploading of the parameter table) is complete. Refer to Out-of-Range Alarm
on page 28 and Auto Reconnect Mode, page 24 for further information.

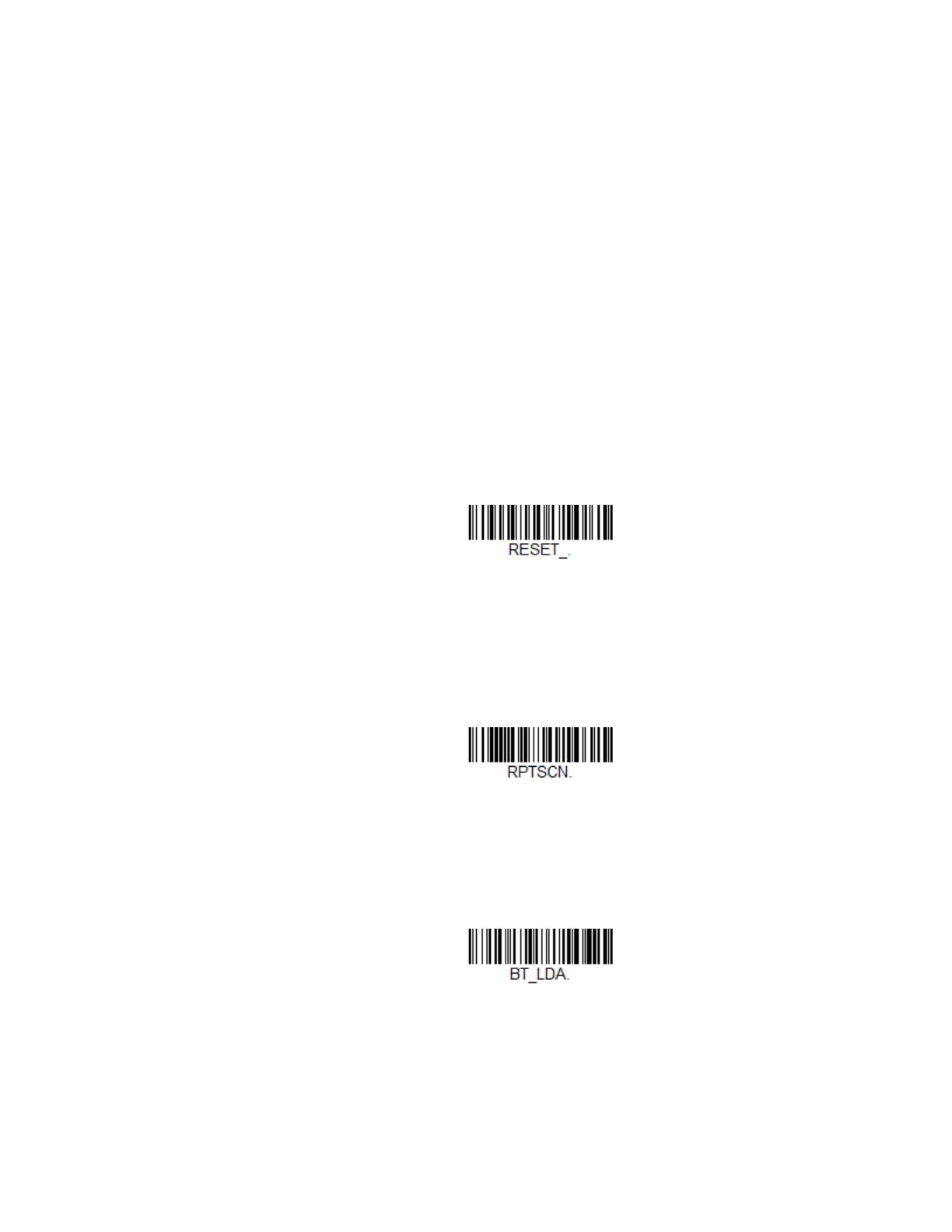

Reset Scanner
Scanning this bar code reboots the 8680i and causes it to relink with the host.
Scanner Report
Scan the bar code below to generate a report for the connected 8680is. The report
indicates the port, 8680i name, and address. To assign a name to your 8680i, refer
to Device Name,page 37.
Scanner Address
Scan the bar code below to determine the address of the 8680i you are using.
Reset Scanner
Scanner Report
Scanner Address

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g

Summary

Chapter 1 - Get Started

8680i Overview and Attachment

Details the 8680i components and how to attach it to a triggered ring wearable accessory.

Battery and Charging

Covers battery replacement, recommendations, disposal, and charging procedures.

Connecting to Networks and Devices

Instructions for connecting the 8680i to various Bluetooth devices and networks.

Configuration Defaults

Guides on setting and resetting custom default configurations for the scanner.

Chapter 2 - Wireless System Operation

Chapter 5 - Data Format

Data Format Management

Procedures for adding, clearing, and saving data formats.

Chapter 6 - Symbologies

Chapter 7 - Imaging Commands

Image Snap and Modifiers

Capturing images with options for imaging style, beeper, trigger, and LEDs.

Image Ship and Modifiers

Sending captured images with options for filters, compensation, and pixel depth.

Intelligent Signature Capture (IMGBOX)

Configuring signature capture area size, location, and image parameters.

Chapter 8 - Utilities

Reset Factory Defaults

Procedure to erase settings and restore the 8680i to original factory defaults.

Chapter 9 - Serial Programming Commands

Reset Custom Defaults

Restores the 8680i to custom default settings or factory defaults.

Chapter 11 - Product Specifications

8680i Mobile Computer Specifications

Detailed mechanical and electrical specifications for the 8680i scanner.

Chapter 12 - Maintenance and Troubleshooting

Troubleshooting Common Issues

Guidance on resolving issues like symbol reading errors and data entry problems.
