8680i User Guide 69
Clear One or All Prefixes or Suffixes
You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbology.
If you have been entering prefixes and suffixes for single symbologies, you can use
Clear One Prefix (Suffix) to delete a specific character from a symbology. When
you Clear All Prefixes (Suffixes), all the prefixes or suffixes for a symbology are
deleted.
Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.
Step 2. Determine the 2 digit hex value from the Symbology Chart (included in
the Symbology Charts, beginning on page 221) for the symbology from
which you want to clear the prefix or suffix.
Step 3. Scan the 2 digit hex value from the Programming Chart, beginning on
page 235, or scan 9, 9 for all symbologies.
Your change is automatically saved.
Add a Carriage Return Suffix to All Symbologies
Scan the following bar code if you wish to add a carriage return suffix to all symbol-
ogies at once. This action first clears all current suffixes, then programs a carriage
return suffix for all symbologies.

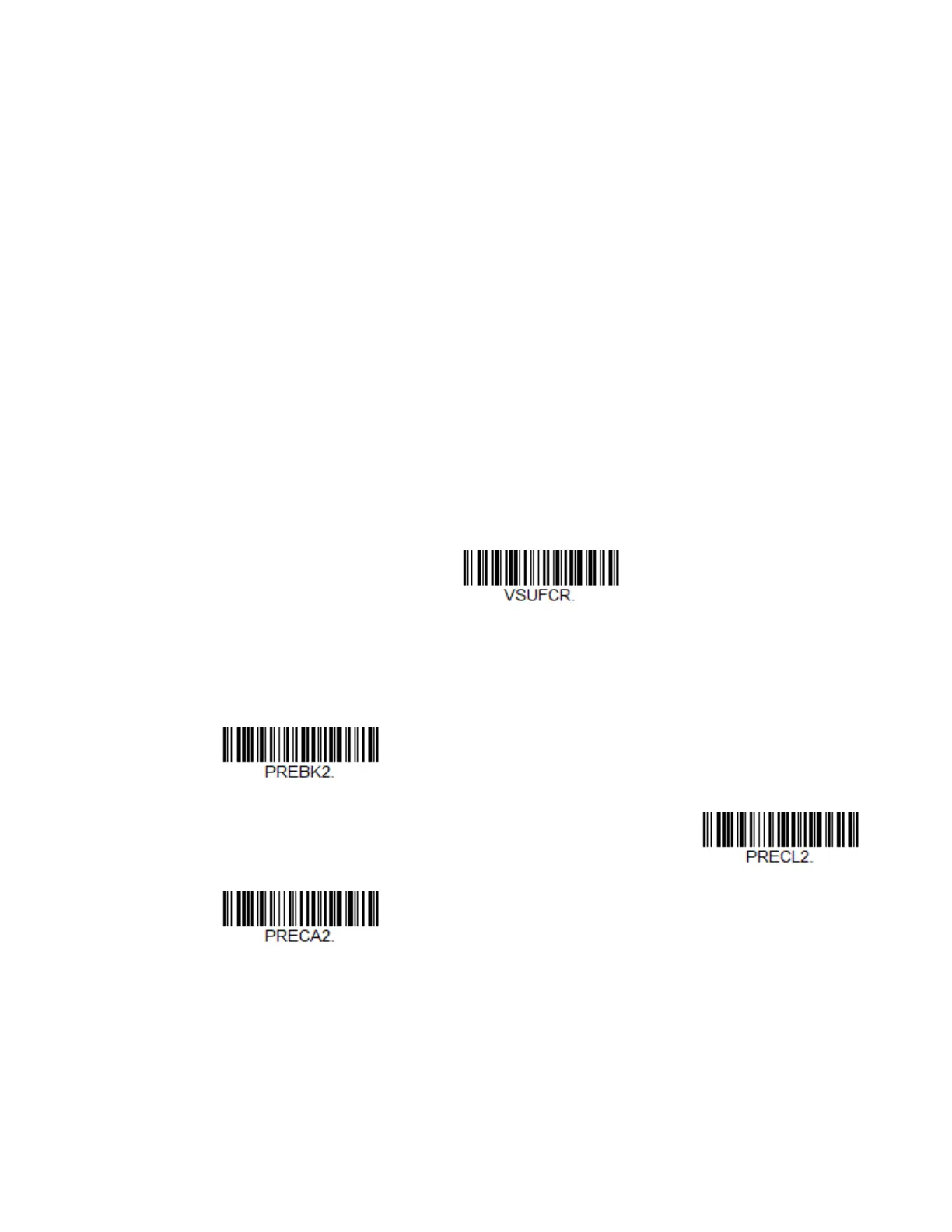

Prefix Selections
Add CR Suffix
All Symbologies
Add Prefix
Clear One Prefix
Clear All Prefixes

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g

Summary

Chapter 1 - Get Started

8680i Overview and Attachment

Details the 8680i components and how to attach it to a triggered ring wearable accessory.

Battery and Charging

Covers battery replacement, recommendations, disposal, and charging procedures.

Connecting to Networks and Devices

Instructions for connecting the 8680i to various Bluetooth devices and networks.

Configuration Defaults

Guides on setting and resetting custom default configurations for the scanner.

Chapter 2 - Wireless System Operation

Chapter 5 - Data Format

Data Format Management

Procedures for adding, clearing, and saving data formats.

Chapter 6 - Symbologies

Chapter 7 - Imaging Commands

Image Snap and Modifiers

Capturing images with options for imaging style, beeper, trigger, and LEDs.

Image Ship and Modifiers

Sending captured images with options for filters, compensation, and pixel depth.

Intelligent Signature Capture (IMGBOX)

Configuring signature capture area size, location, and image parameters.

Chapter 8 - Utilities

Reset Factory Defaults

Procedure to erase settings and restore the 8680i to original factory defaults.

Chapter 9 - Serial Programming Commands

Reset Custom Defaults

Restores the 8680i to custom default settings or factory defaults.

Chapter 11 - Product Specifications

8680i Mobile Computer Specifications

Detailed mechanical and electrical specifications for the 8680i scanner.

Chapter 12 - Maintenance and Troubleshooting

Troubleshooting Common Issues

Guidance on resolving issues like symbol reading errors and data entry problems.
