Honeywell 8680i User Manual

112 8680i User Guide

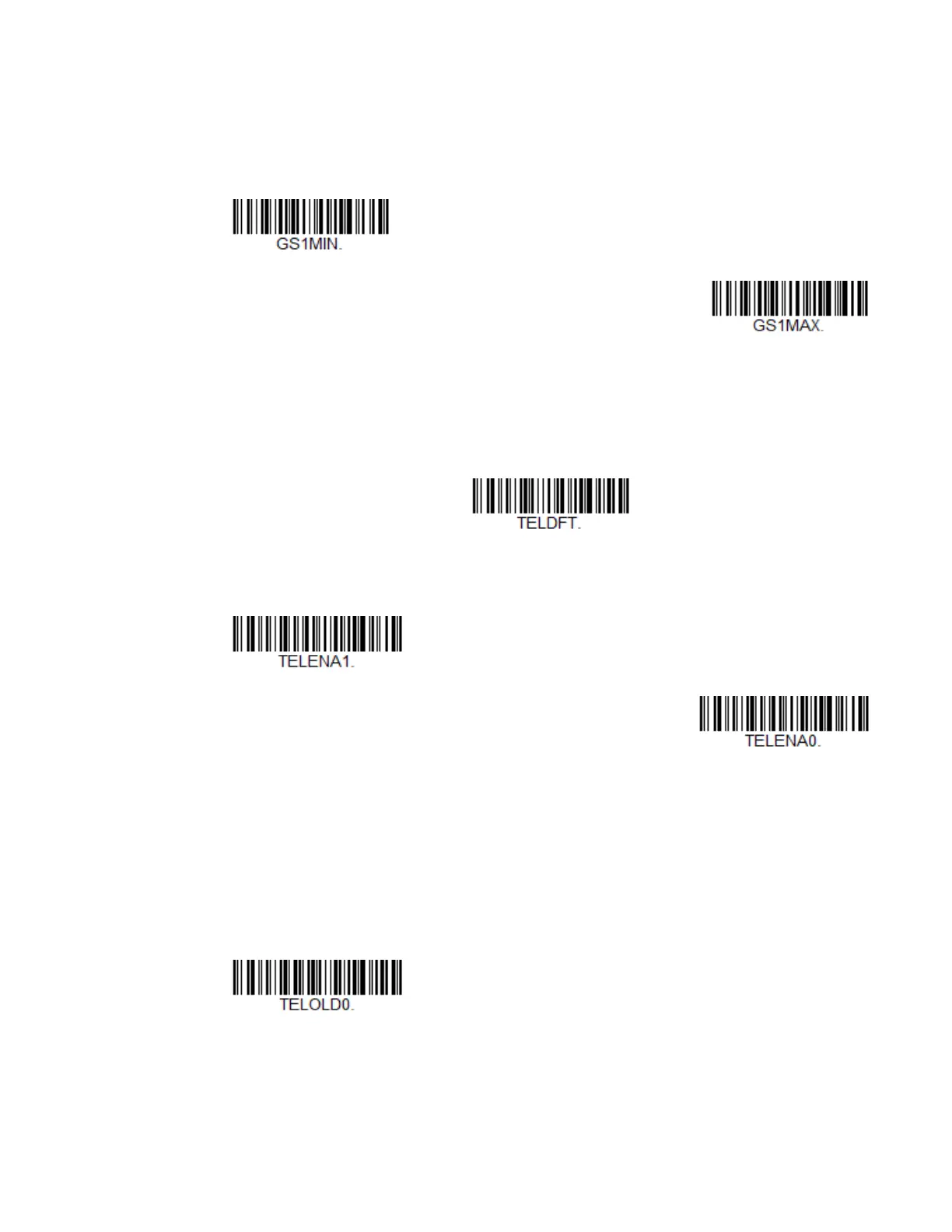

GS1-128 Message Length
Scan the bar codes below to change the message length. Refer to Message Length
Description (page 94) for additional information. Minimum and Maximum
lengths = 1-80. Minimum Default = 1, Maximum Default = 80.
Telepen
<Default All Telepen Settings>
Telepen On/Off
Telepen Output
Using AIM Telepen Output, the 8680i reads symbols with start/stop pattern 1 and
decodes them as standard full ASCII (start/stop pattern 1). When Original Telepen
Output is selected, the 8680i reads symbols with start/stop pattern 1 and decodes
them as compressed numeric with optional full ASCII (start/stop pattern 2).
Default = AIM Telepen Output.
Minimum Message Length
Maximum Message Length
On
* Off
* AIM Telepen Output

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g
