20 8680i User Guide

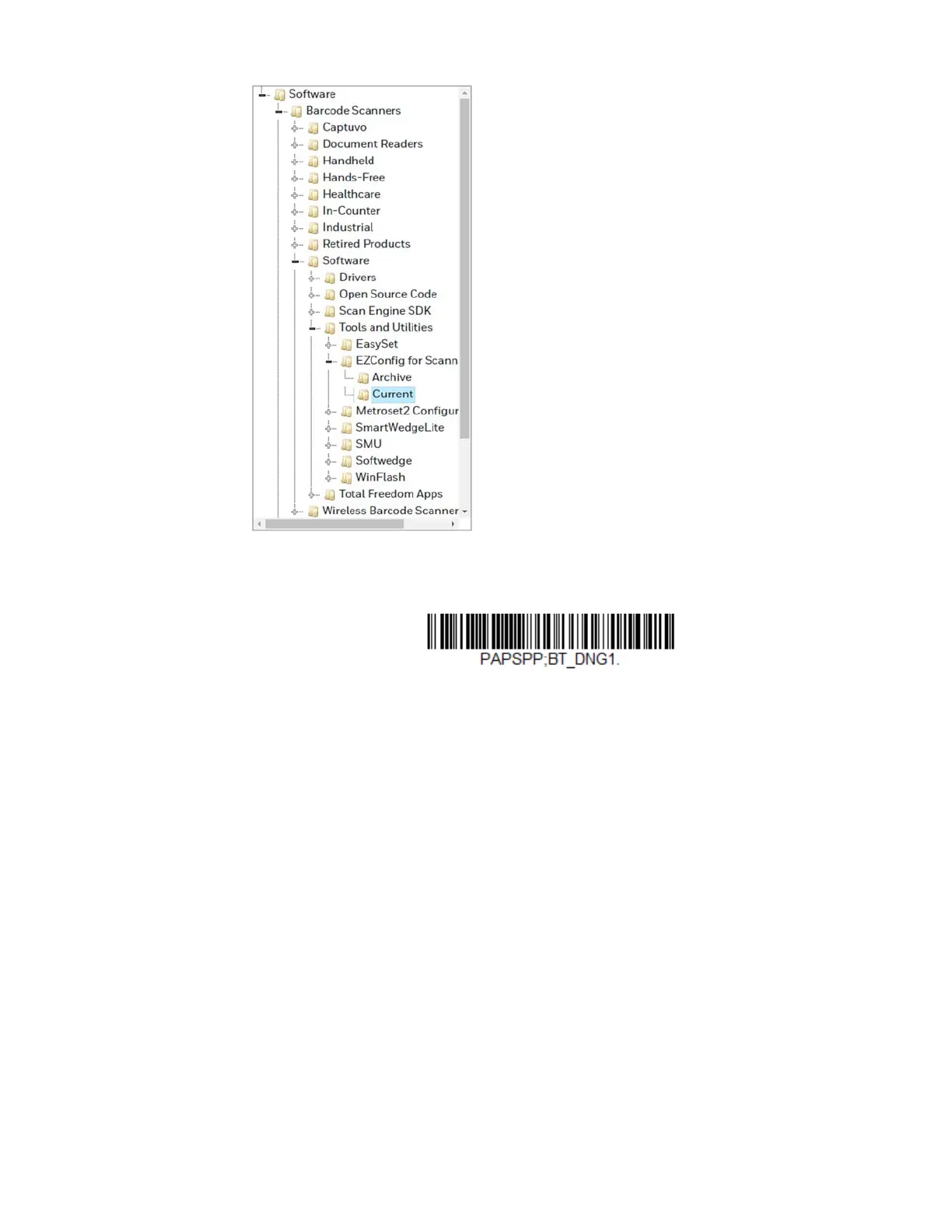

3. Download the Setup version of EZConfig for Scanning.
4. Once EZConfig is installed, scan the Bluetooth Connect - EZCS bar code
below.
5. Open EZConfig to configure your 8680i.
Connect the 8680i to WiFi
Note: WiFi capability is only supported by the advanced version of the 8680i.
The 8680i goes into sleep mode when there is no activity for 10 seconds. It must be
awake to connect to WiFi. Press the trigger to make sure it is awake for this process.
The 8680i can be configured for WiFi networks using EZConfig for Scanning.
1. Open EZConfig for Scanning after connecting via Bluetooth (page 19.)
2. Select the Scan Data Window tab, then the Create WiFi Bar Code tab.
3. Access the WiFi settings on your PC.
4. When your WiFi list appears, select the network to which you want to connect
the 8680i and click on Properties.
Bluetooth Connect - EZCS

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g
