Single Code Centering
Scan Single Code Centering to target the bar code closest to the center of the
image. Singling out a bar code in this manner increases scanning accuracy when
there are multiple bar codes close together.
Custom Centering Settings
Use the following settings to customize your centering window. If a bar code is not
touched by a predefined window, it will not be decoded or output by the 8680i. If
centering is turned on by scanning Centering On, the 8680i only reads codes that
pass through the centering window you specify using the Top of Centering Win-
dow, Bottom of Centering Window, Left, and Right of Centering Window bar
codes.

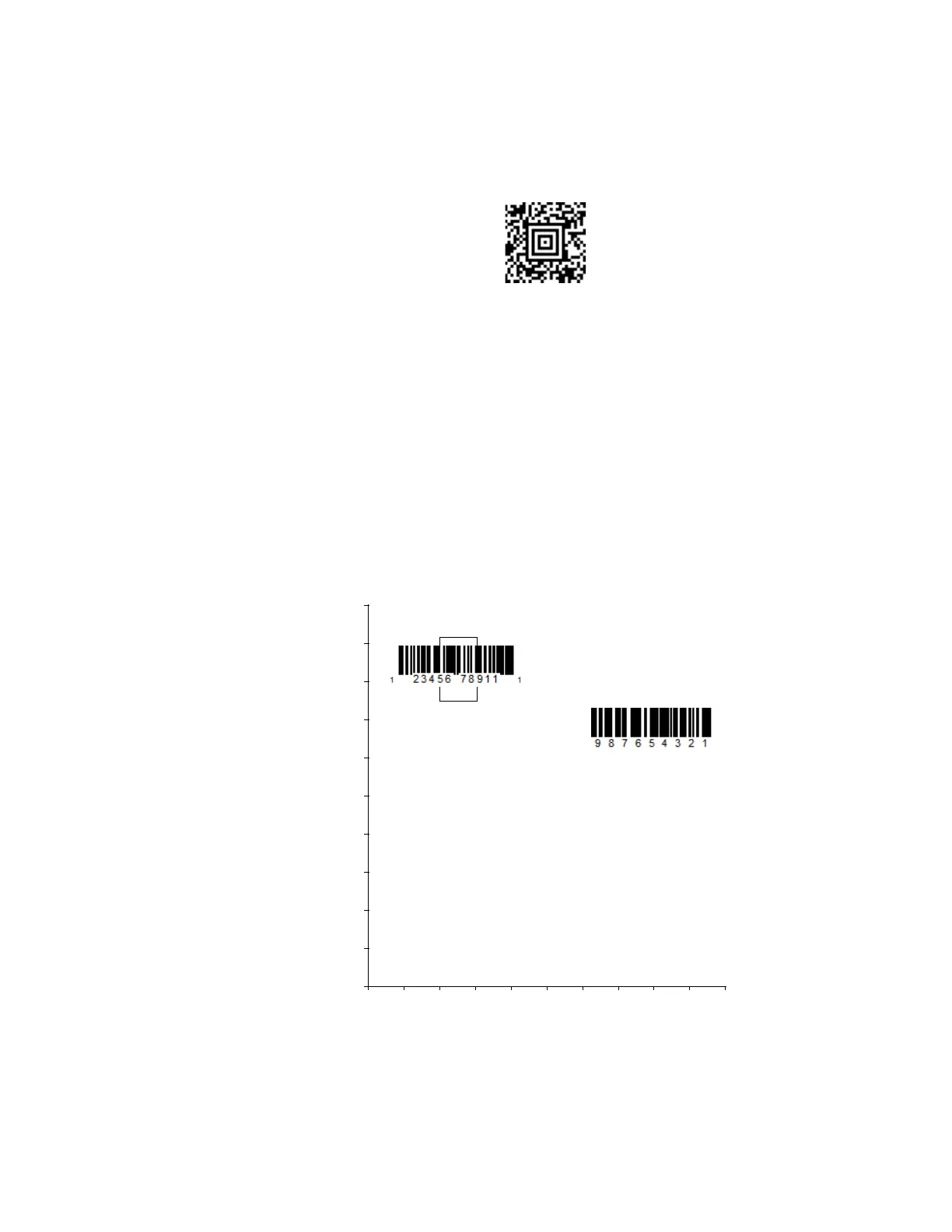

In the example below, the white box is the centering window. The centering window
has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1
passes through the centering window, it will be read. Bar Code 2 does not pass
through the centering window, so it will not be read.
Note: A bar code needs only to be touched by the centering window in order to be read. It
does not need to pass completely through the centering window.
Single Code Centering
0
Bar Code 1
Bar Code 2
10 20 30 40 50 60 70 80 90 100%
100
90
80
70
60
50
40
30
20
10
0%

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g
