Honeywell 8680i User Manual

8680i User Guide 75
Chart, beginning on page 235. For example, 50 characters is entered as
0050.
Note: 9999 indicates all lengths.
Step 6. Editor Commands
Refer to Data Format Editor Commands (page 76). Scan the symbols that
represent the command you want to enter.
Step 7. Scan Save to save your data format, or Discard to exit without saving your
changes.
Other Programming Selections
• Clear One Data Format
This deletes one data format for one symbology. If you are clearing the primary
format, scan 0 from the Programming Chart, beginning on page 235. If you are
clearing an alternate format, scan 1, 2, or 3, depending on the format you are
clearing. Scan the Terminal Type and Code I.D. (see Symbology Charts on page
221), and the bar code data length for the specific data format that you want to
delete. All other formats remain unaffected.
• Clear all Data Formats
This clears all data formats.
• Save
Exit and save your data format changes.
• Discard
Exit without saving any data format changes.

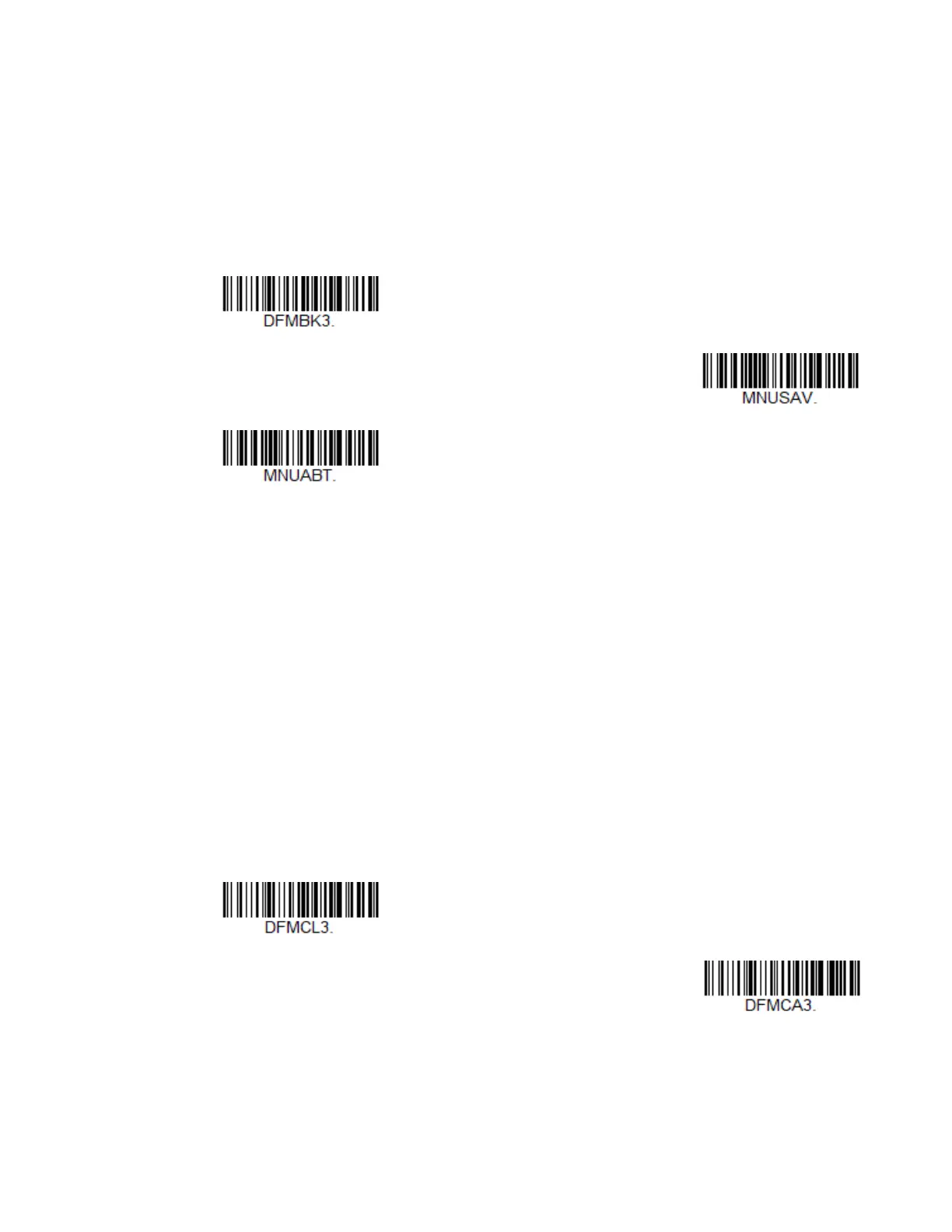

Enter Data Format
Save
Discard
Clear One Data Format
Clear All Data Formats

Honeywell 8680i Specifications

General

Type	Wearable bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Motion tolerance (cm/s)	584
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417
Bluetooth version	4.1
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Product color	Black
Built-in display	No
International Protection (IP) code	IP54
Charging time	4 h
Battery voltage	3.6 V
Power source type	Battery
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	81 mm
Width	56 mm
Weight	- g
