8680i User Guide 169

Intelligent Signature Capture - IMGBOX

IMGBOX allows you to configure the size and location of a signature capture area

relative to its proximity to a bar code. This allows you to tailor a signature capture

area to a specific form. In order to use IMGBOX, you need a set form where the sig-

nature box location is in a known location relative to a bar code. You can input the

overall size of the signature area, as well as specify how far the signature area is

from the bar code, vertically and horizontally. You can also set the resolution and

file format for the final output of the signature capture image.

Note: IMGBOX commands can only be triggered by one of the following types of bar codes:

PDF417, Code 39, Code 128, Aztec, Codabar, and Interleaved 2 of 5. Once one of

these symbologies has been read, the image is retained for a possible IMGBOX

command.

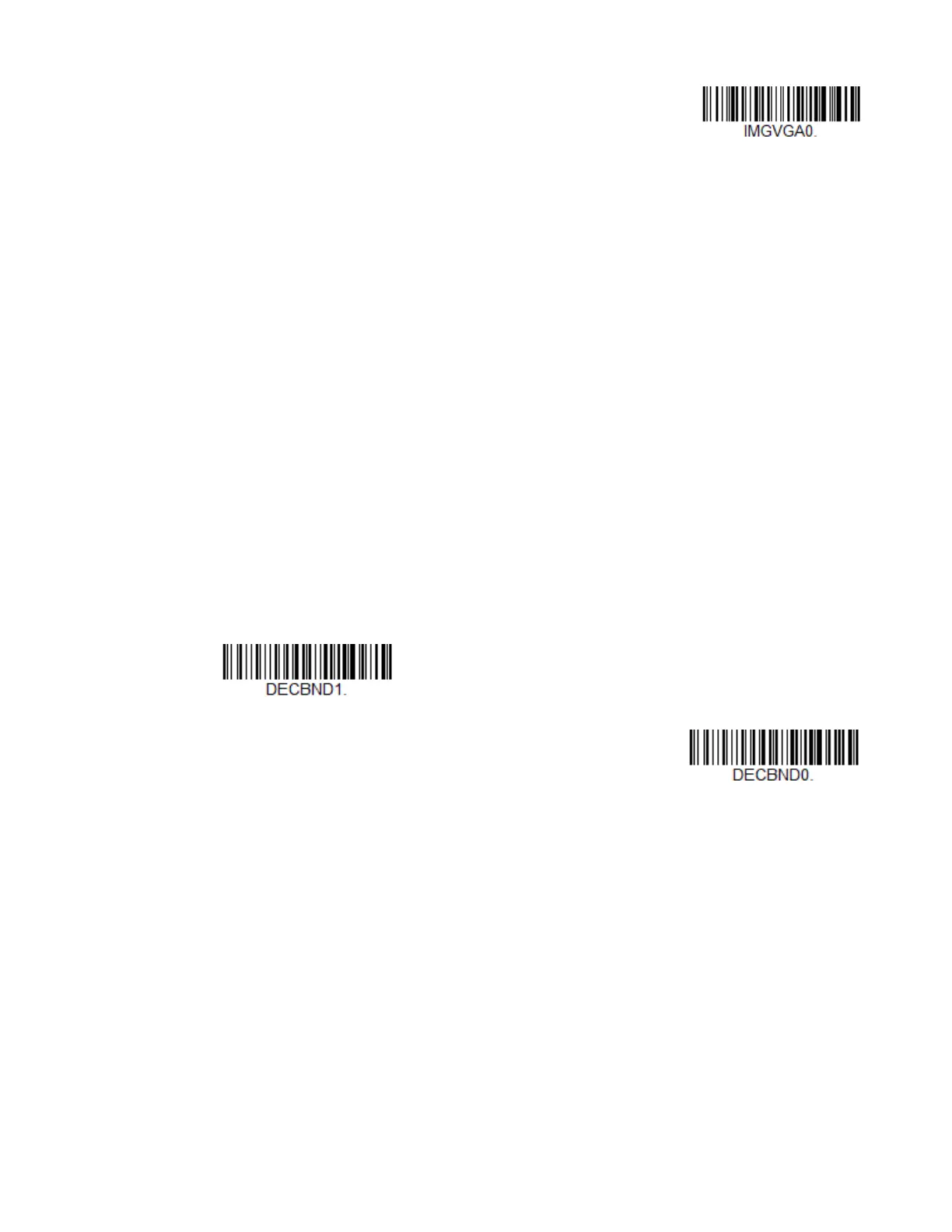

Signature Capture Optimize

If you will be using your 8680i to capture signatures frequently, you should opti-

mize it for this purpose. However, the speed of scanning bar codes may be slowed

when this mode is enabled. Default = Off.

Below is an example of a signature capture application. In this example, the aiming

pattern is centered over the signature capture area and the trigger is pressed. A

single beep is emitted, indicating that the 8680i has read a Code 128 bar code and

the data has been transferred to the host. An IMGBOX command may now be sent

from the host to specify the coordinates of the signature capture area below that

code, and indicating that only that area containing the signature should be trans-

ferred as an image to the host.

* Native Resolution

Optimize On

* Optimize Off
