4.3 Internal Checks
When all PCBs have been installed and all cabling has
been successfully checked, the following jumper links
allow the implementation of panel software or
configuration updates, as described below.
4.3.1 Jumper Link Options
Software Upgrade (J4)
The Software Upgrade Jumper in conjunction with the
Upgrade kit is used to upgrade the panel operating
software. To enable the panel upgrade, fit a link to J4
and connect the appropriate cable. The link J4 must be
removed on completion of the upgrade (see 997-415,
ID50 Series Panel - Upgrading Instructions). This
jumper is situated to the right of the Digital/ÜE terminal
block (TB8).
Configuration Lock (J9)
The Configuration Lock Jumper is used to lock and unlock
the system configuration. If the link is fitted the system
configuration is locked and changes will NOT be allowed.
If the link is removed system configuration is possible.
The panel can only be configured with the Configuration
Lock (J9) in the unlocked position. The jumper is situated
to the left of the Digital / ÜE terminal block (TB8).

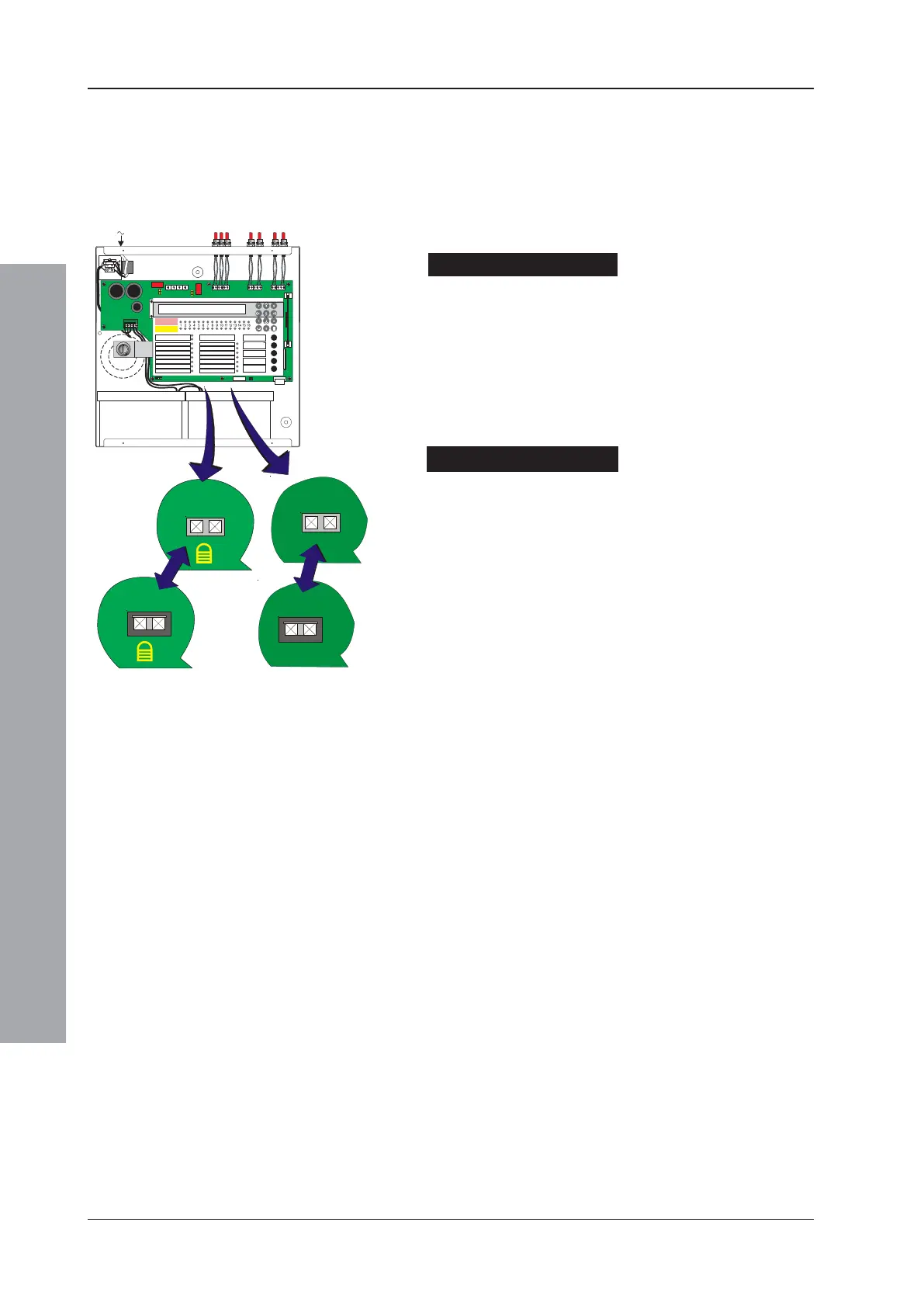

J9
J9
J4
J4
ENABLED
LOCKED
DISABLEDUNLOCKED
