ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
85 997-263-000-11, Issue 11
January 2010
5.7.2 Filter-by-Type
This option is available with the Fire, Fault, Pre-alarm
and the Extinguishing System rules. The Filter-by-type
option has five selections with Fire and Fault categories:
ANY, OTI, AVS, MCP and MON and three with Pre-alarm:
ANY, OTI and AVS. The Filter-by-type option, when used
with the Extinguishing System category has seven
selections: Smoke/Heat, Sensor and MCP/ZMX, VIEW/
Sensor, Any Two Zones, Any Two Sensors, Any Single
Sensor and Any Single Module. Refer to Section 5.7,
Control-by-Event Output Rules for further information.

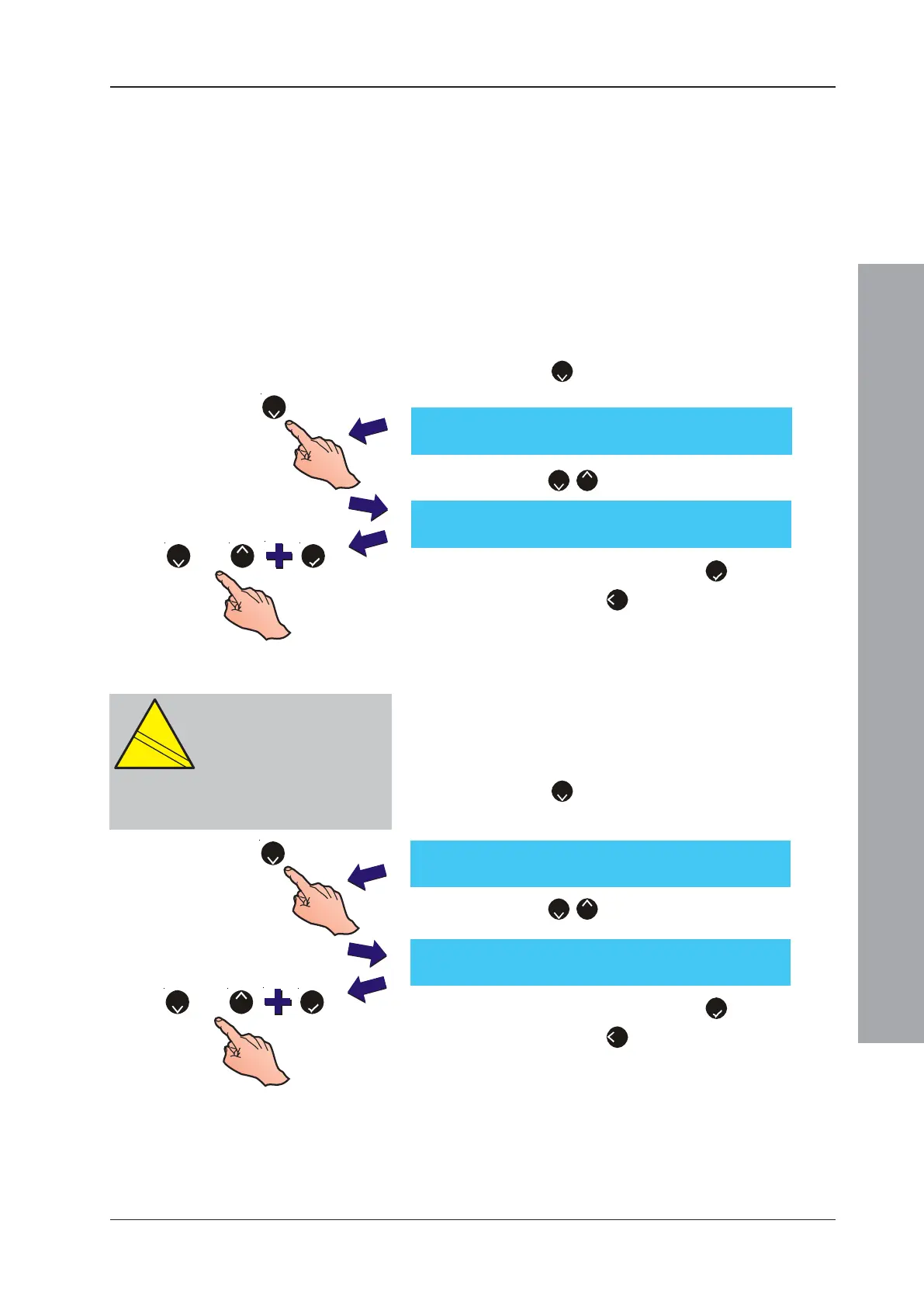

To select the type filter for Fire, Fault or Pre-alarm:
1 Press the ‘
2
’ button (using the numeric keypad) to
select the Filter option from the menu below.
2 Press the ‘
2
/
8
’ buttons to select the required filter.
3 Confirm the selection by pressing the ‘
5
’ button. To cancel
the selection, press ‘
4
’ button.
Extinguishing System
To select the type filter for Extinguishing System:
1 Press the ‘
2
’ button (using the numeric keypad) to
select the Filter option from the menu below.
2 Press the ‘
2
/
8
’ buttons to select the required filter.
3 Confirm the selection by pressing the ‘
5
’ button. To cancel
the selection, press ‘
4
’ button.
CBE Rule:01 1:Type 2:Filter 3:Evac
4:Silence 5:Interrupt ¦ : More
CBE Rule:01 Current Filter Type =[ANY]
: Accept ¦ : Change Filter Type < : Cancel
5
2
or
82
CBE Rule: 01 1:Type 2:Filter
8:Soak Timer 9:Zones
CBE Rule:nn Ext. System Filter = [One sensor]
: Accept ¦ : Change Filter Type < : Cancel
5
2
or
8
2
CAUTION:
This product is not compliant
with EN 12094-1.
EN
12094-1
!
Fire extinguishing installations in
Europe are required to be certified as
compliant to this standard.
To Next Page
