ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
39
997-263-000-11, Issue 11
January 2010
5.5 Setup Options
The Setup options menu allows the configuration of all
site-specific panel settings. These configurable settings
are sub-divided into the following categories:
a. Panel Options
b. Site Details
c. Device Options
d. Peripheral Options
e. Day/Night Settings
With the Commissioning menu displayed and using the numeric
keypad, press the ‘
1
’ button to display the Setup menu:
Use the numeric keypad to select the appropriate option
from the Setup menu as described below.
5.5.1 Panel Options
This allows you to set or change the basic panel
configuration settings such as the user interface options
and operator access settings. The Panel Options menu
comprises the following configurable options:
a. Language (See Note 1)
b. Date Format
c. Control Keys Access Level
d. LED 1H Mode (See Note 2)
e. LED 2C Mode (See Note 2)
f. Un-mute
g. Mains Fault Delay
h. Diagnostic Mode
i. VdS Compatibility
j. Automatic Re-sound
With the Setup menu displayed, press ‘
1
’ to select Panel
Options. Use the ‘
2
/
8
’ buttons to cycle through the options.
Notes:
1 The default panel language is English. The default
language can also be changed at initial power up
of the panel.
2 Text inserts are provided for both LED configuration
options - refer to Section 5.5.1.4 LED 1H Mode
and Section 5.5.1.5 LED 2C Mode.

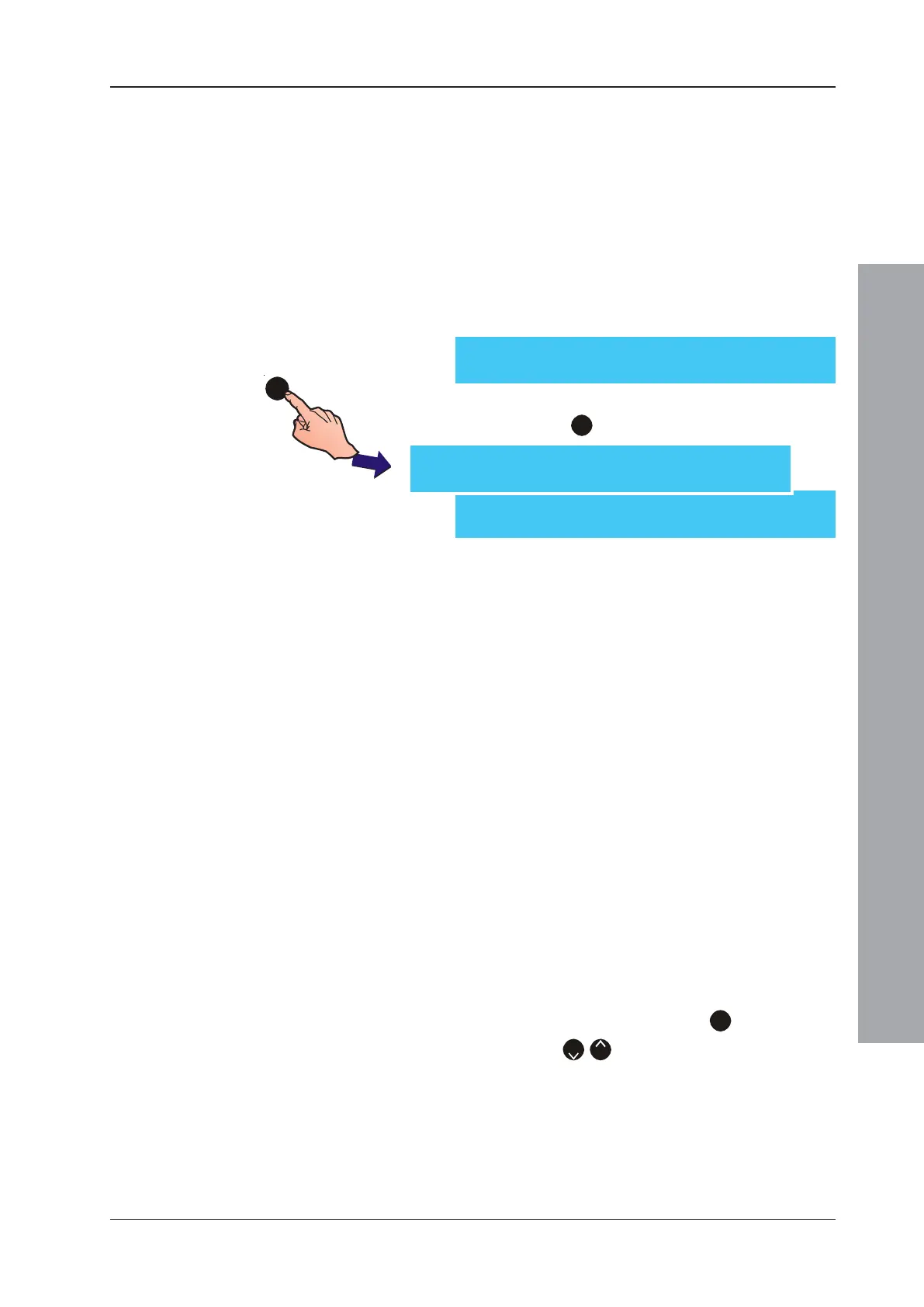

[S1 COMM] 1 : Setup 2 : Circuit
3 : CBE Rules 4 : Zones 5 : Access ¦ : More
[S1 Setup] 4: Peripheral Options
5: Day / Night Settings ¦ : More
[S1 Setup] 1: Panel Options
2: Site Details 3: Device Options ¦ : More
1
To Next Page
