ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
84997-263-000-11, Issue 11
January 2010
CBE Rule:01 6:Class Change 7:Two Zone
9:Zones ¦ : More

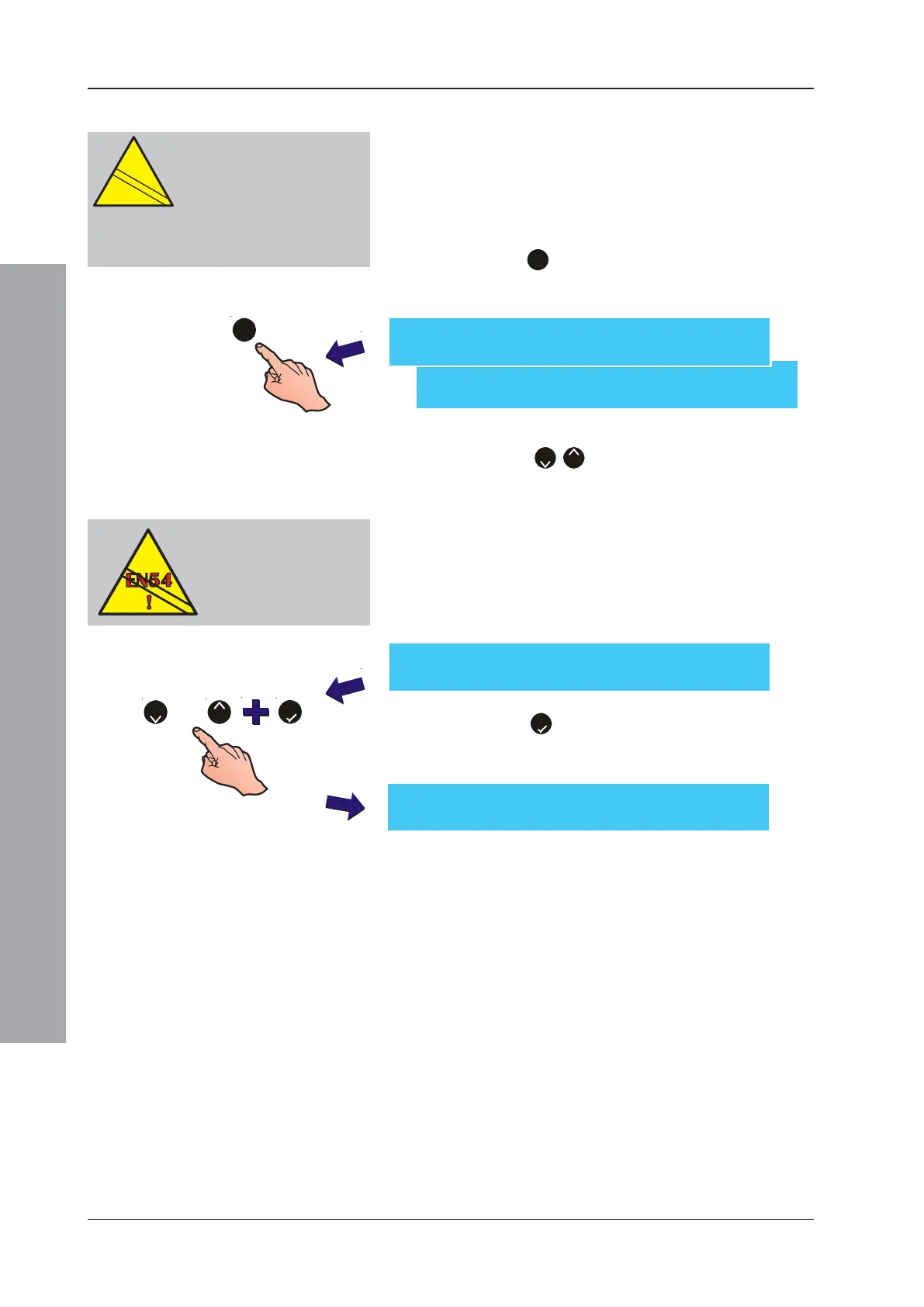

5.7.1 Output Type
Twelve (12) CBE Output Rule types are available. This
menu allows the type to be selected. The current
attributes of the selected Rule are displayed and can be
edited. To change the Rule type, from the CBE Output
Rules menu proceed as follows:
1 Press the ‘
1
’ button on the numeric keypad to select
the Type option from the menu. The LCD displays
the Type menu:
2 Using the ‘
2
/
8
’ buttons, step through the CBE
Output Rule types until the required type is displayed
on the upper line, i.e. FIRE, INPUTS, FAULT, PRE-
ALARM, PLANT, FTR (Fire Transmission Relay),
RESET, DAY MODE, EXT SYSTEM, DISABLE,
THERMAL, ES SYSFLT (ES System Fault).
Note: If a fault-routing output is configured, a fault-
routing output indication must be configured - refer
to Section 5.5.1.5 LED 2C Mode.
3 Press the ‘
5
’ button to confirm selection. The LCD
displays only the appropriate editable settings for the
selected rule, for example:
To change any of the settings on the CBE Output Rules
refer to Sections 5.7.2 Filter-by-type, 5.7.3
Evacuation, 5.7.4 Silence, 5.7.5 Interrupt Delay, 5.7.6
Class Change, 5.7.7 Two Zone, 5.7.8 Zones, 5.7.9
Device Inputs and 5.7.10 Soak Timer.
CBE 01[FIRE ][ANY] 1--------------------16
1 : Change [EvSlln ] YYYYNNYYNDDNCCNN
CBE Rule:01 Current Type = [FIRE ]
¦ : Change Rule Type : Accept < : Cancel
5
or
8
2
1
EN54-2 : 8.2.4 g)
If a fault-routing output is
configured, a fault-routing
output transmission circuit
fault indication must be
provided.
CBE Rule:01 1:Type 2:Filter 3:Evac
4:Silence 5:Interrupt ¦ : More
CAUTION:
This product is not compliant
with EN 12094-1.
EN
12094-1
!
Fire extinguishing installations in
Europe are required to be certified as
compliant to this standard.
