ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
53
997-263-000-11, Issue 11
January 2010
5.5.4 Peripheral Options
This option is used for setting up the connection of
peripheral equipment via the RS232 and RS485
communication ports.
Select either RS485 or RS232 and then one of the specific
equipment options available.
If RS485 is selected, the repeater protocol options
available are:
a. NOTIFIER
b. ARP50/RP50
c. BFT/LLT (for use with Swedish repeaters only)
d. DISABLED
Refer to Section 5.5.4.3 for further details on repeater
protocol selection.
If RS232 is selected, the protocol options available are:
a. PRINTER
b. THIRD PARTY
c. GSM MODEM (for use with GSM Communications
Module)
Refer to Section 5.5.4.6 for further details on RS232
protocol selection.
5.5.4.1 Communications Port Selection
The Communications Port selection is made through the
Peripheral Options screen.

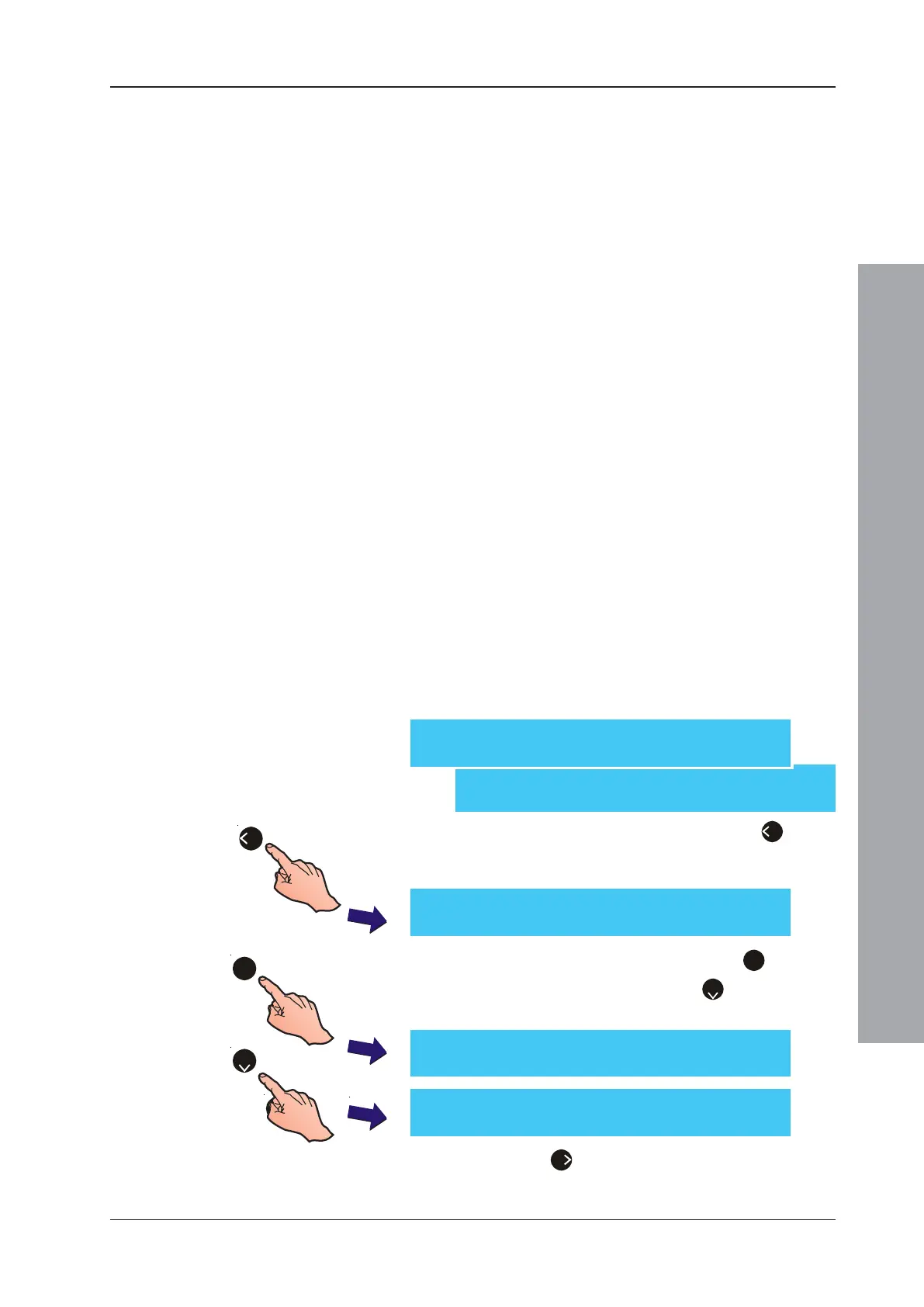

1 From the Setup menu screen, press the ‘
4
’ button
on the numeric keypad to display the Communications
Port Selection screen:
2 Using the numeric keypad, press the ‘
1
’ button to
select RS485 port options or the ‘
2
’ button to select
RS232 port options:
3 Press the ‘
6
’ button to select an alternative RS485
or RS232 protocol option (refer to Sections 5.5.4.3
and 5.5.4.6 for further details).
4
or
2
1
2
[S1 Peripheral Options] 1: RS485
2:RS232
[S1 Setup] 4: Peripheral Options
5: Day / Night Settings ¦ : More
[S1 Setup] 1: Panel Options
2: Site Details 3: Device Options ¦ : More
[Setup] RS485 Protocol = NOTIFIER
> : Change ¦ : More < : Exit
[Setup] RS232 Protocol = PRINTER
> : Change ¦ : More < : Exit
