ID50 Series Panel - Installation, Commissioning & Configuration Manual

Configuration Mode

89 997-263-000-11, Issue 11

January 2010

5.7.8 Zones

The Zones option determines the output response when

a zone detects an alarm. Each zone can be configured

as Yes (Y), No (N), Pulse (P), Coincidence (C) or Delay

(D) - see Section 5.7 for definitions of these parameters.

If Day Mode is enabled (Section 5.5.5.1, Day Mode

Activity) delays do NOT occur unless manually

activated. Manual activation can occur at any time of

day - it does not have to be during the set Day Mode

period. Delays are automatically de-activated with the

end of the day mode period.

To change the CBE Rules: Zone Setting from the CBE

Rules: Output menu, follow the described procedure

below:

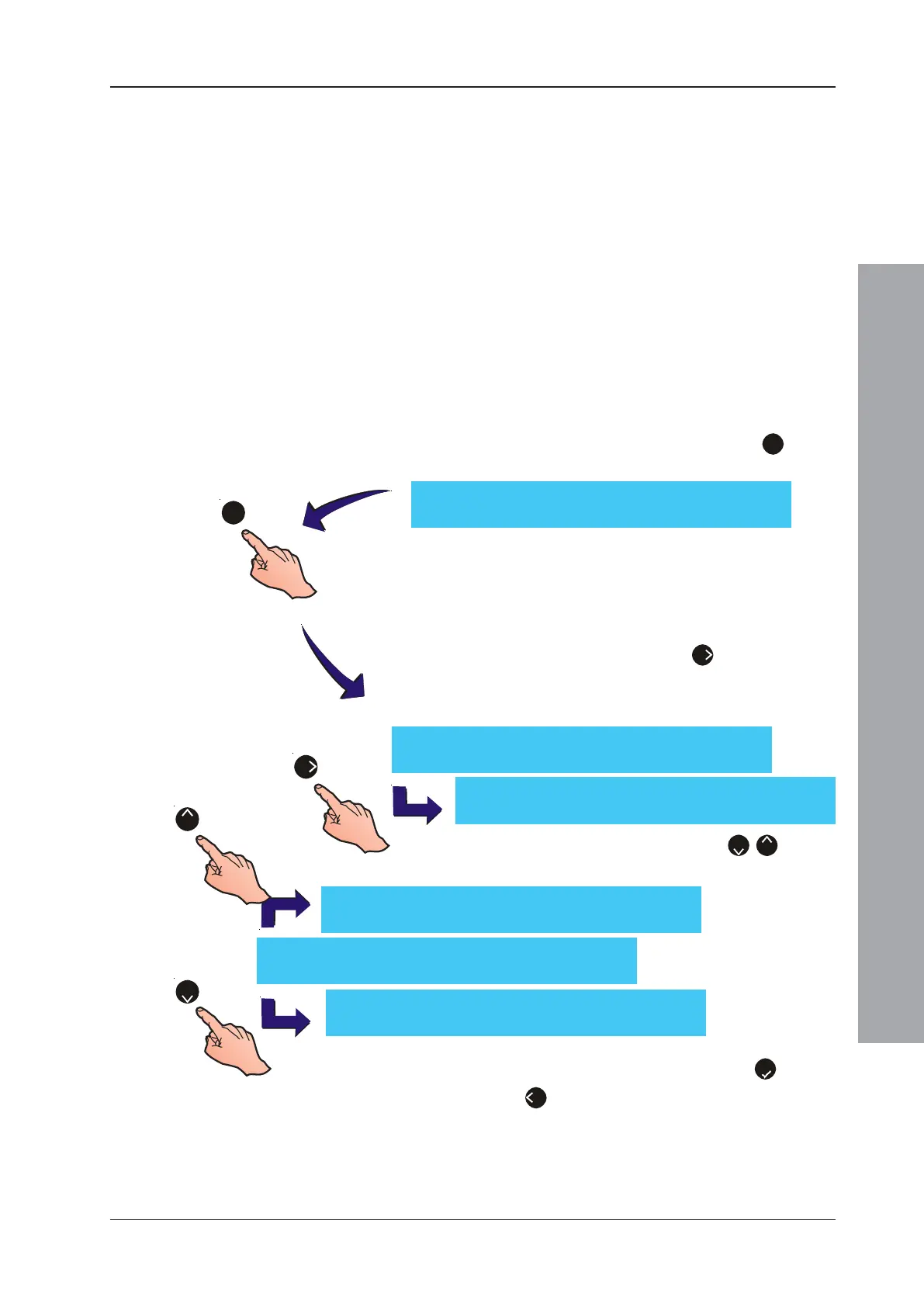

1 From the menu options below, press the ‘

’ button

to select the Zones option.

2 The LCD displays the pattern number and zone range

(either 1 to 16 for fire alarms or 17 to 32 for plant

alarms) on line 1. Line 2 of the LCD displays the

selected zone’s number, the full description of its

current status and the zone’s flashing editable status.

To select a zone, press the ‘

’ button until the

appropriate zone number appears on line 2 in the

left-hand corner. The display cycles from 16 to 1 and

32 to 17.

3 To change a zone’s status, press the ‘

’ buttons

until the required state is displayed.

4 Confirm the changes by pressing the ‘

’ button.

Press ‘

’ to cancel any changes.

CBE Rule:01 6:Class Change 7:Two Zone

9:Zones ¦ : More
