ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
67
997-263-000-11, Issue 11
January 2010
[Sensor] Enter Address____
5.6 Circuit Options
The Circuit options menu offers the facility to individually
auto-configure, manually learn or view the following circuits:
a. Signalling Line Circuit - SLC (loop)
b. On-Board Output Circuits - including sounder, control
and relay circuits.

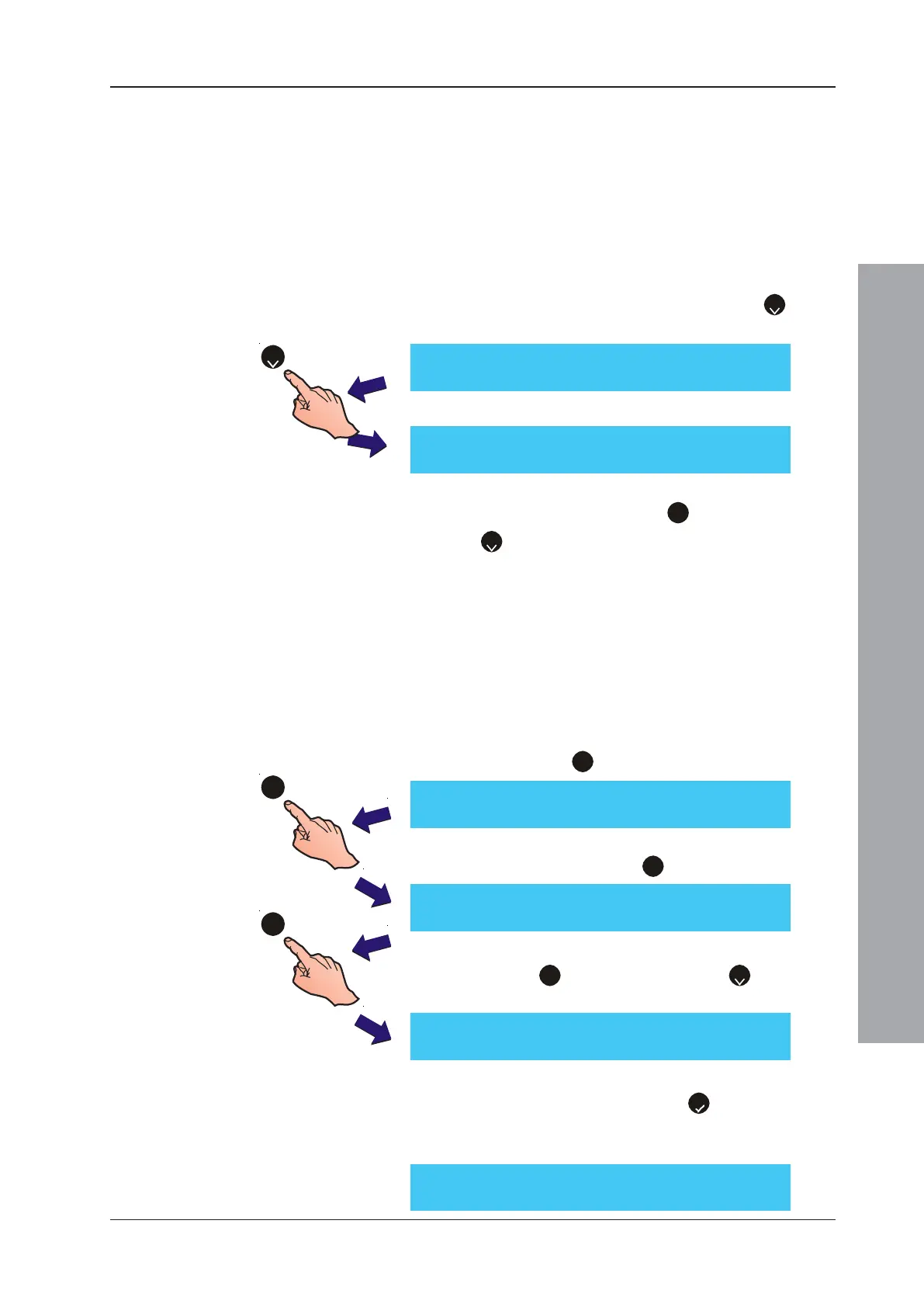

To select the Circuit options menu:
1 From the Commissioning menu, press the ‘
2
’ button
on the numeric keypad to access the Circuit option menu.
2 The LCD displays the Circuit options available.
3 Select the number corresponding to the type of circuit
that requires changing, i.e. ‘
1
’ for the SLC Loop, or
‘
2
’ for On-Board.
The LCD then displays the appropriate Circuit menu
display.
5.6.1 Signalling Line Circuit (SLC) - Devices
This option enables the manual configuration of devices
to a pre-configured analogue addressable SLC loop.
To manually learn devices on the SLC loop:
1 From the Circuit menu screen, below, using the numeric
keypad press ‘
1
’ to select the SLC loop configuration.
2 The LCD displays the Devices and the Learn options. Using
the numeric keypad, press ‘
1
’ to select the Devices menu.
3 Select a device option by using the numeric keypad and
pressing ‘
1
’ to configure sensors or ‘
2
’ to configure
modules (see Input Modules and Output Modules overleaf).
4 At the prompt, using the numeric keypad enter an address
number and confirm using the ‘
5
’ button. When the
required device address has been entered, the LCD shows
the current settings and the available editing functions.
[S1 COMM] 1 : Setup 2 : Circuit
3 : CBE Rules 4 : Zones 5 : Access ¦ : More
[S1 Circuit] 1 : SLC Loop 2 : On-Board
[S1 Circuit] 1 : SLC Loop 2 : On-Board
[S1 SLC] 1 : Devices 2 : Learn
[S1 Device] 1 : Sensors 2 : Modules
2
1
1
