5.7.10 Soak Timer
The Soak Timer allows the extinguishing output to be
activated for a specified time. If enabled, the
extinguishing output is activated for the period specified
by the Ext. System Soak Timer panel Setup option (see
Section 5.5.3.2 Extinguishing System Soak); if
disabled, the CBE rule activates associated outputs until
the panel is reset.
This option also affects the operation of device type MRL.
If enabled, associated MRL inputs will start the CBE Rule
extinguishing system delay (Section 5.5.3.1); if disabled,
the MRL inputs will start the CBE Rule immediately (for
Fire rules, will start the day mode delay, if active).

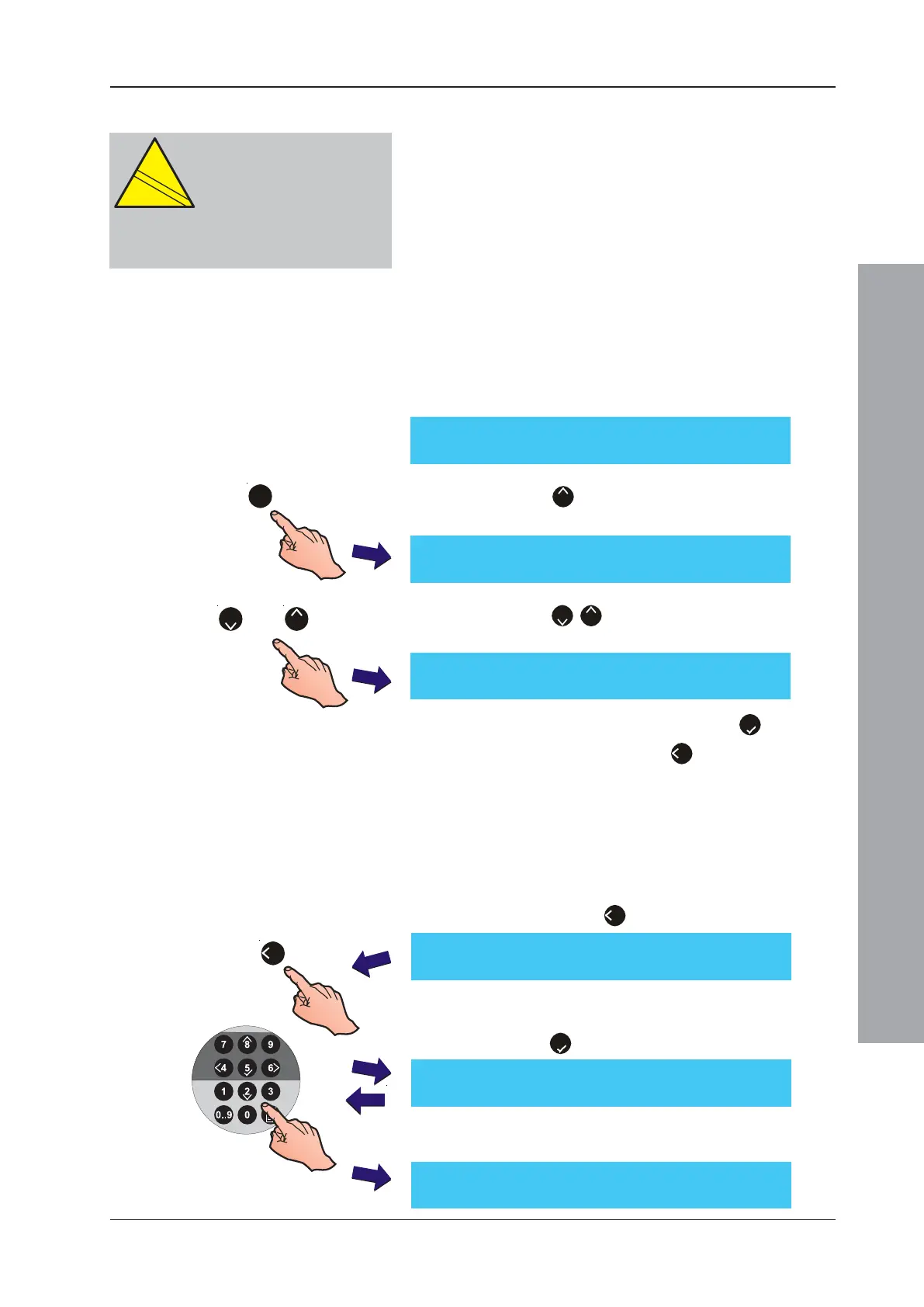

To enable/disable the Soak Timer:
1 Press the ‘
8
’ button (using the numeric keypad) to
select the Soak Timer option from the menu below.
2 Press the ‘
2
/
8
’ buttons to selectY(es) or N(o) for
Soak Timer Enable.
3 Confirm the selection by pressing the ‘
5
’ button. To
cancel the selection, press ‘
4
’ button.
5.8 Zone Texts
The Zone Texts menu enables the editing or viewing of
text associated to a selected zone. To view or edit any
zone text descriptions, proceed as follows:
1 At the main Commissioning menu, using the numeric
keypad press the ‘
4
’ button.
2 The Zone Text menu is displayed. Enter the zone
number required using the numeric keypad, then
press the ‘
5
’ button to select the zone.
3 The LCD then displays the existing 20-characters of
text assigned to the zone on the upper line.
[S1 COMM] 1 : Setup 2 : Circuit
3 : CBE Rules 4 : Zones 5 : Access ¦ : More
[<blank/existing text >] ¦ : Char : Done
>:Next <:Previous u1:Delete u3:Insert
[Zone Text] Select Zone No __
4
CBE Rule:nn Soak Timer Enable = [N]
> : Change : Accept < : Cancel
CBE Rule: nn 1:Type 2:Filter
8:Soak Timer 9:Zones
CBE Rule:nn Soak Timer Enable = [Y]
> : Change : Accept < : Cancel
1
or
2 8
