Routine Maintenance and Scheduled Testing
MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 106 Technical Handbook

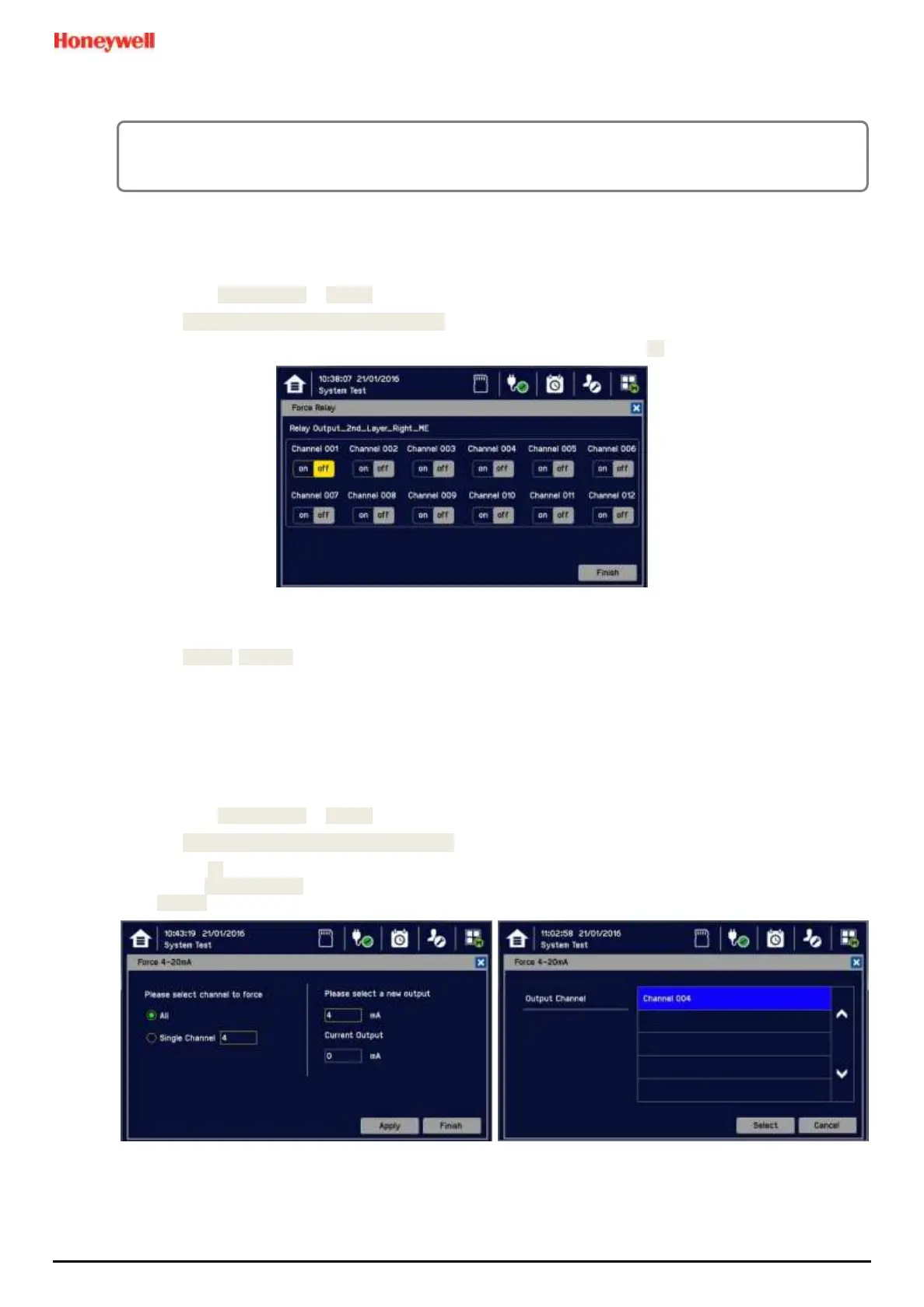

8.2.2 Exercising the Relays
Relay output channels can be tested by forcing the relays to an active state:
1) Ensure that relay activated output systems (i.e. emergency deluge / sirens etc.) are isolated before starting the
test.
2) Login as an Administrator or Service.
3) Touch Menu>System Test>Force Relay.
4) Touch the active (yellow) Relay Output Channels to be tested, and toggle them on.
5) Check the selected relay output contact power switching using a suitable test tool or voltmeter.
6) Touch [Finish]>[Cancel] and all selections will turn off.
7) Proceed to the next step.
8.2.3 Checking the mA Outputs
Milliamp (mA) output channels can be tested by forcing the mA output:
1) Ensure that relay activated output systems (i.e. emergency deluge / sirens etc.) are isolated before starting the
test.
2) Login as an Administrator or Service.
3) Touch Menu>System Test>Force 4-20mA.
4) Touch the All radio button and check the mA output value; touch the mA box to change it. For single channels
touch the Single Channel number box and then scroll through the list and touch the required channel followed
by [Select].
