3.1 How to Open and Close the Enclosure
1) Ensure that it is safe to open the enclosure and, if necessary switch off and isolate electrical power.
2) Unscrew the two x 3 mm Hex socket security screws (1) until they become loose (2).
3) Pull the handle until it comes free (3). Do not apply undue force.
4) Open the enclosure door fully.

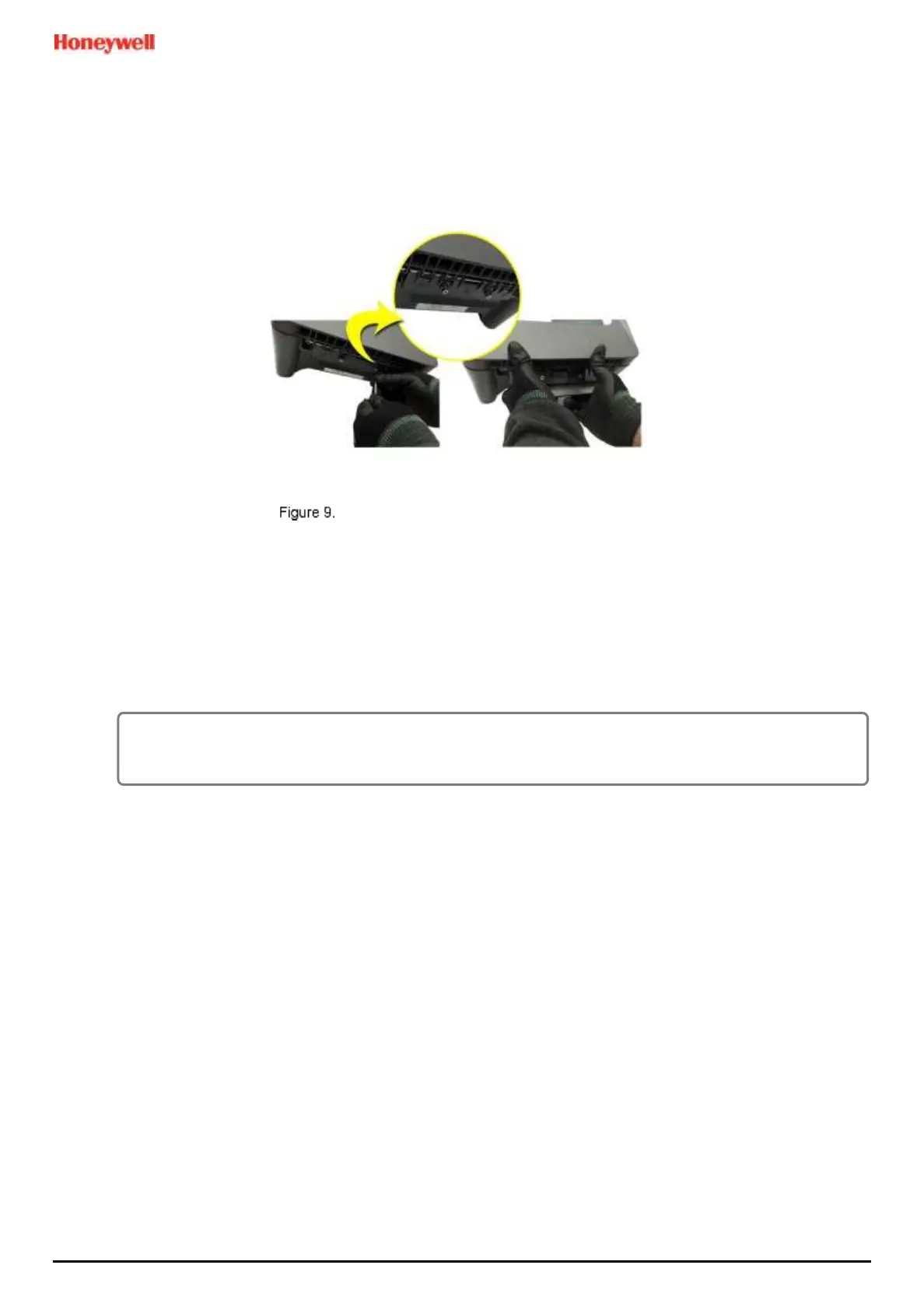

Undoing the Two Security Screws and Opening the Enclosure
5) Closure is the reverse of this procedure, but care must be taken not to exert undue force, and you must not press
on the membrane or touch screen areas.
Note: The door recess has an environmental seal that requires some pressure to close the door correctly. The
enclosure handle is the primary method of applying this pressure but you can assist it by pressing firmly on the door
edge directly above the handle as you press on the handle itself.
1
2
3
CAUTION
TPPL enclosures must be fully closed and secured during normal operation.
