Honeywell Touchpoint Plus Technical Handbook

Repairs, Replacements and Upgrades
MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 114 Technical Handbook
9.3 How to Add a New I/O Module
The Touchpoint Plus system can easily be expanded by adding additional I/O modules.
Refer to Ch.3.3.1 and Ch.3.3.2 for full populated I/O modules
9.3.1 To Add a New Module
1) Login as an Administrator or Service.
2) Touch Menu>Maintenance>Power off>Yes.
3) Isolate the power supplies and switch the battery to (if there is a back-up battery installed).
4) Fit the new module to an empty slot, ensuring that that the module is the correct way up and with the label
towards you.
5) Electrically connect the new module.
6) Switch the battery to (if there is a back-up battery installed).
7) Switch on the Touchpoint Plus and wait for the system to stabilise.
8) Login as an Administrator or Service.

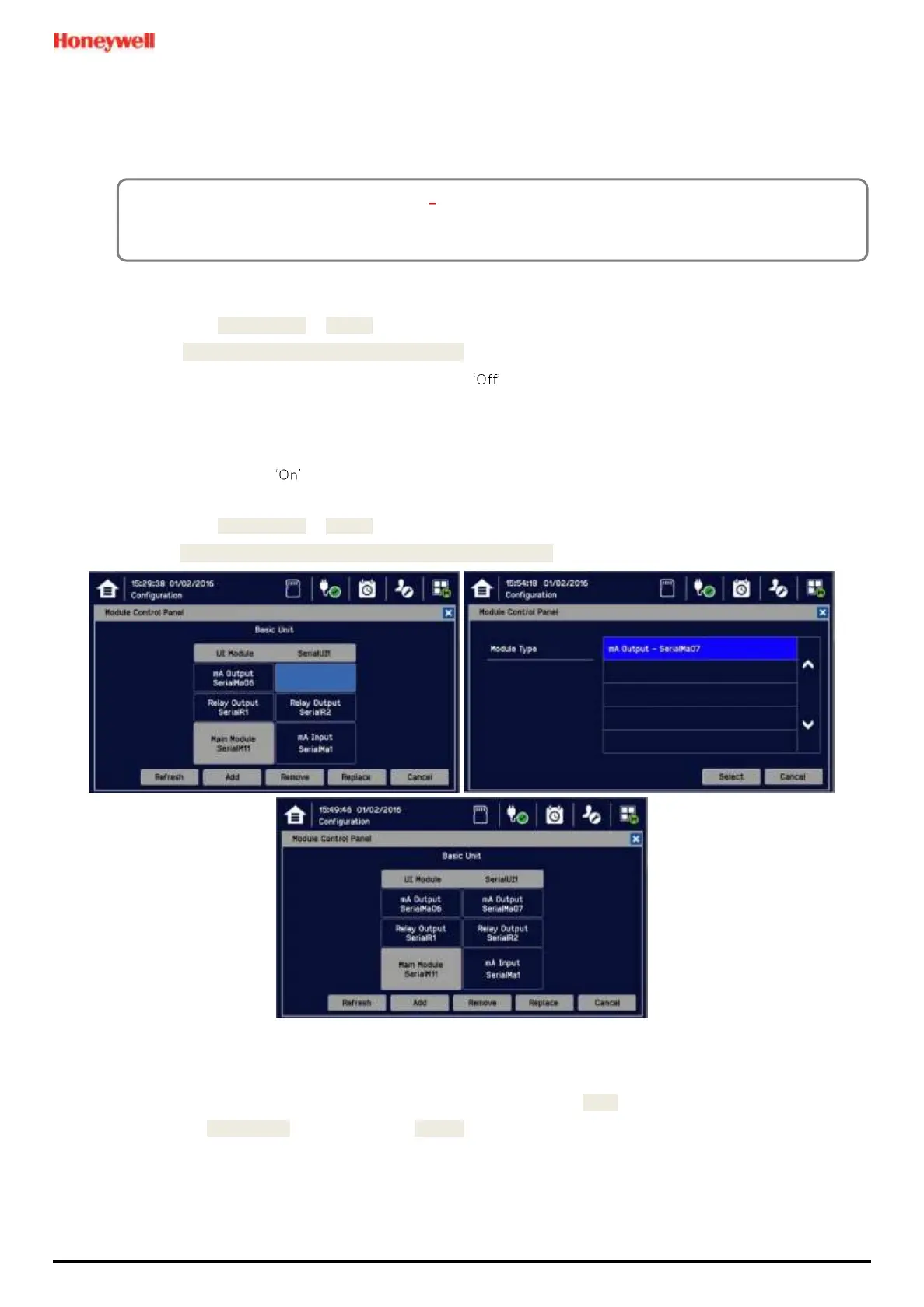

9) Touch Menu>Configuration>Module Control Panel.
10) Touch the empty block corresponding to the new module and touch [Add].
11) Select the Module Type to add, then touch [Select] and wait for the update to complete.
12) Commission each channel in turn.
13) Log out when finished.
Note: See Ch.6 Commissioning for detailed instructions for further information.
ANTI STATIC PRECAUTIONS
Antistatic Precautions are required to prevent severe damage to electronic components.
