• The system response time of Touchpoint Plus is 3 s. However, the gas response time of Touchpoint Plus will be
increased more of input sensor's time of response.
• Touchpoint Plus monitors the internal communication. In case of communication error detected, Touchpoint Plus will
generate the communication fault in 5 s.
7.7 Operating Overview
Refer to Ch.15 Icon Glossary for more information.
7.7.1 Touchscreen
The colour Touchscreen is activated using a finger or a soft stylus. Do not use sharp or abrasive objects as they may
cause irreparable damage.
All interactions are single tap (no gestures or swipes). Some actions open a new Window. Windows may be closed by
touching the X or [Cancel] button, or by touching the [Home / View] button.
7.7.2 User Interface Scr een

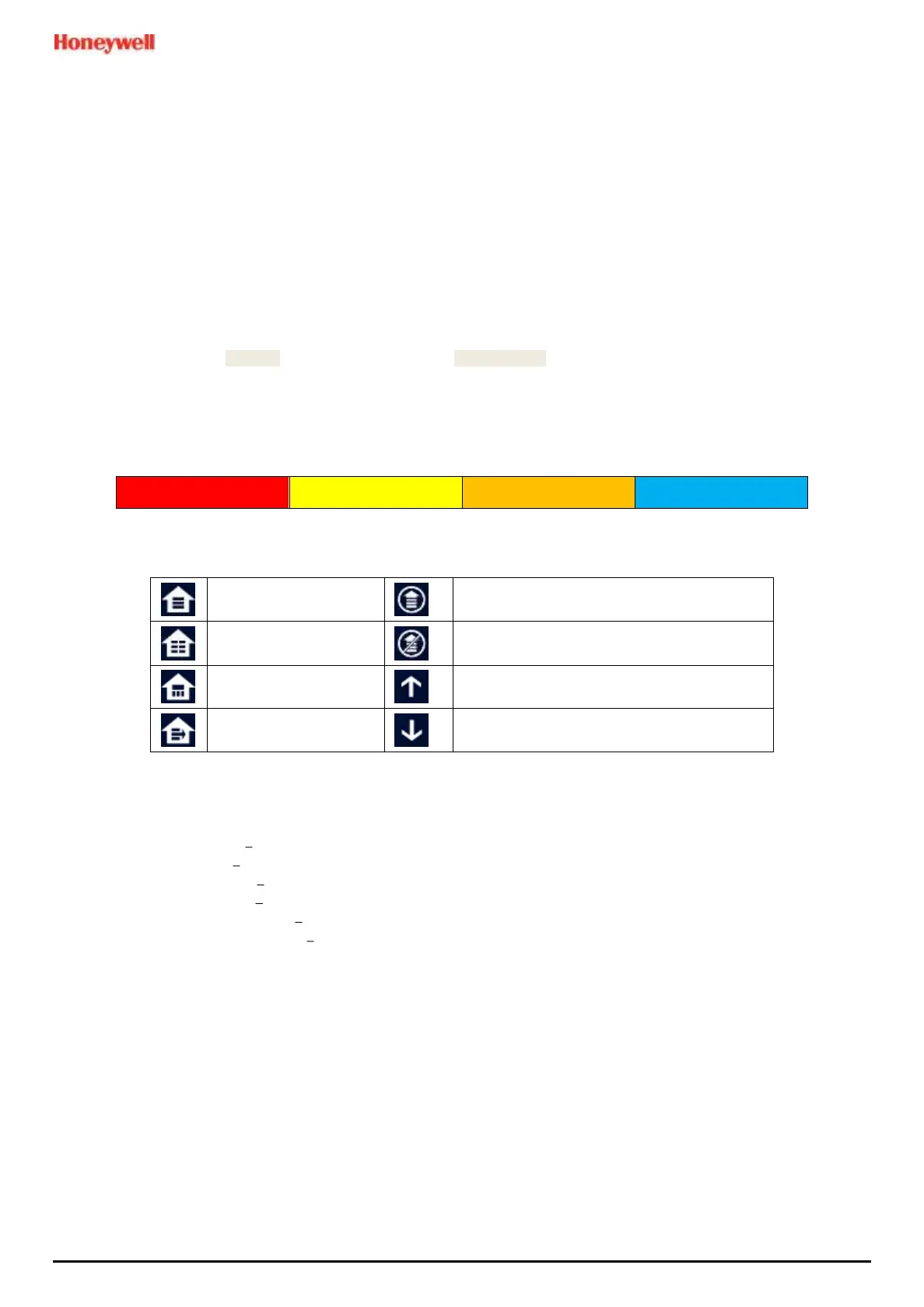

The icons in the navigation toolbar are used to toggle through the User Interface options, as shown in the tables
below.
Alarm Event
Fault Event
Inhibit Event
Warning Event
Channel List View
Manual Scrolling Toggle (the list and all events
can be manually scrolled)
Channel Tile View
Auto Scrolling Toggle (active events are locked
at the top of the list, other events scroll down)
Channel Summary View
Scroll the list up
Output Channel List
View
Scroll the list down
Table 15. Home Screen Icons
Notes:
• Flashing Colour New Events
• Steady Colour Acknowledged Events
• Channel List View Display shows up to six inputs and events with automatic or manual scrolling.
• Channel Tile View Display shows up to eight inputs and events.
• Channel Summary View Display shows total counts for alarm 1, alarm 2, alarm 3, fault, warning and inhibits.
• Output Channel List View Display shows up to eight outputs and events.
