System General Description
MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 21 Technical Handbook
Chapter 3.

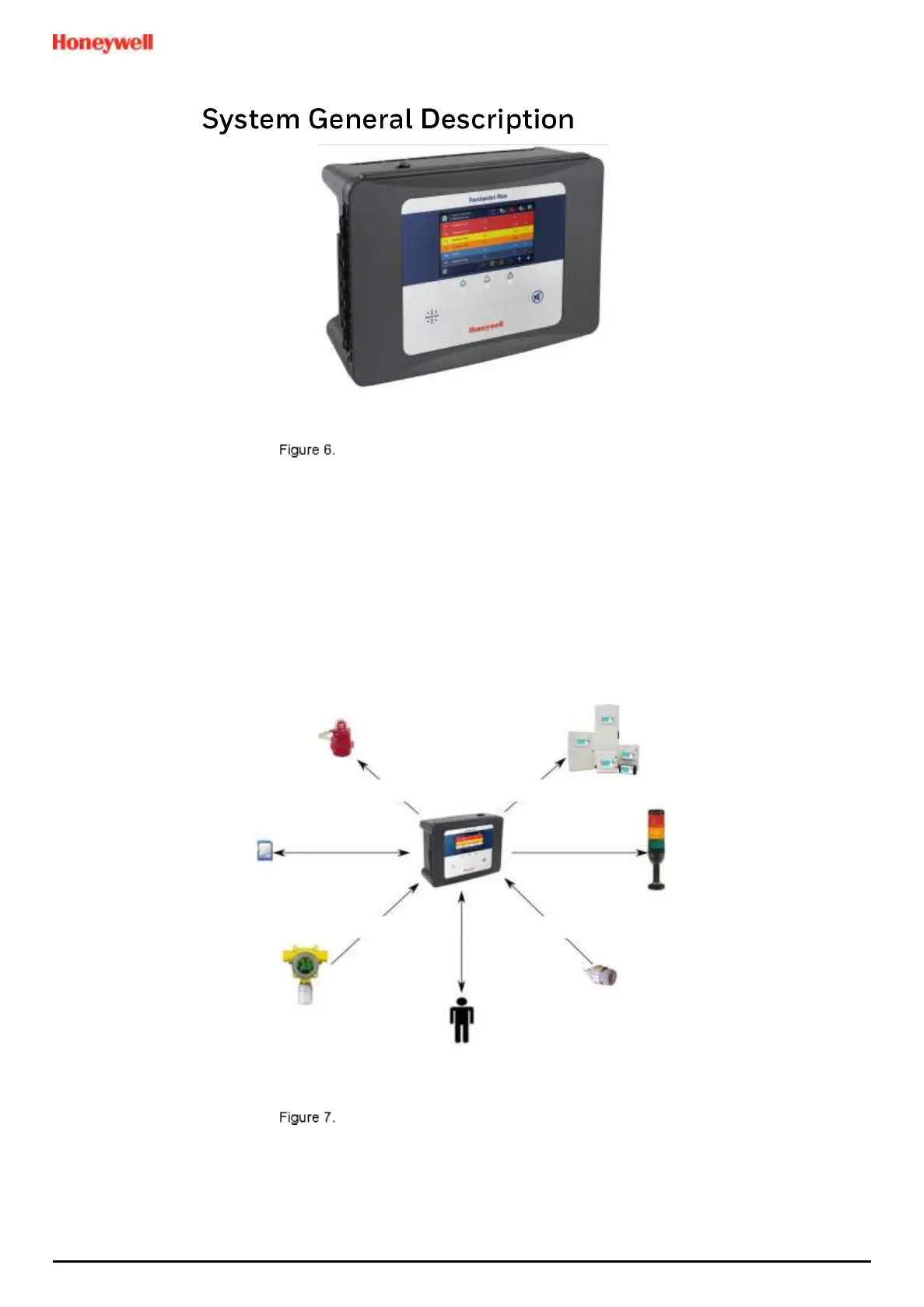

Touchpoint Plus Wall-Mounted Controller
The Touchpoint Plus is an entry level (or upgrade) touch-screen digital Controller for general industrial and
commercial gas detection systems. It has eight input channels, with a further eight channels available through an
optional expansion unit (see Note below).
It can handle a wide range of milliamp, millivolt, and catalytic sensors through analogue inputs, and it can control
various outputs such as audible and visible signals and solenoid valves.
The cabinets are constructed from high-impact plastic and have fully-sealed, easy opening access. They are supplied
with a wall mounting or can be directly mounted to any solid vertical surface or rack. Cable entry is via entry glands on
the lower side.
Touchpoint Plus is rated IP65, which means that it is dustproof and can be subjected to low-pressure water without
significant ingress. This makes it particularly suited to offices, control rooms and unheated boiler rooms.
Typical Installation Options
