5.2.9 Module / Field Device Connections

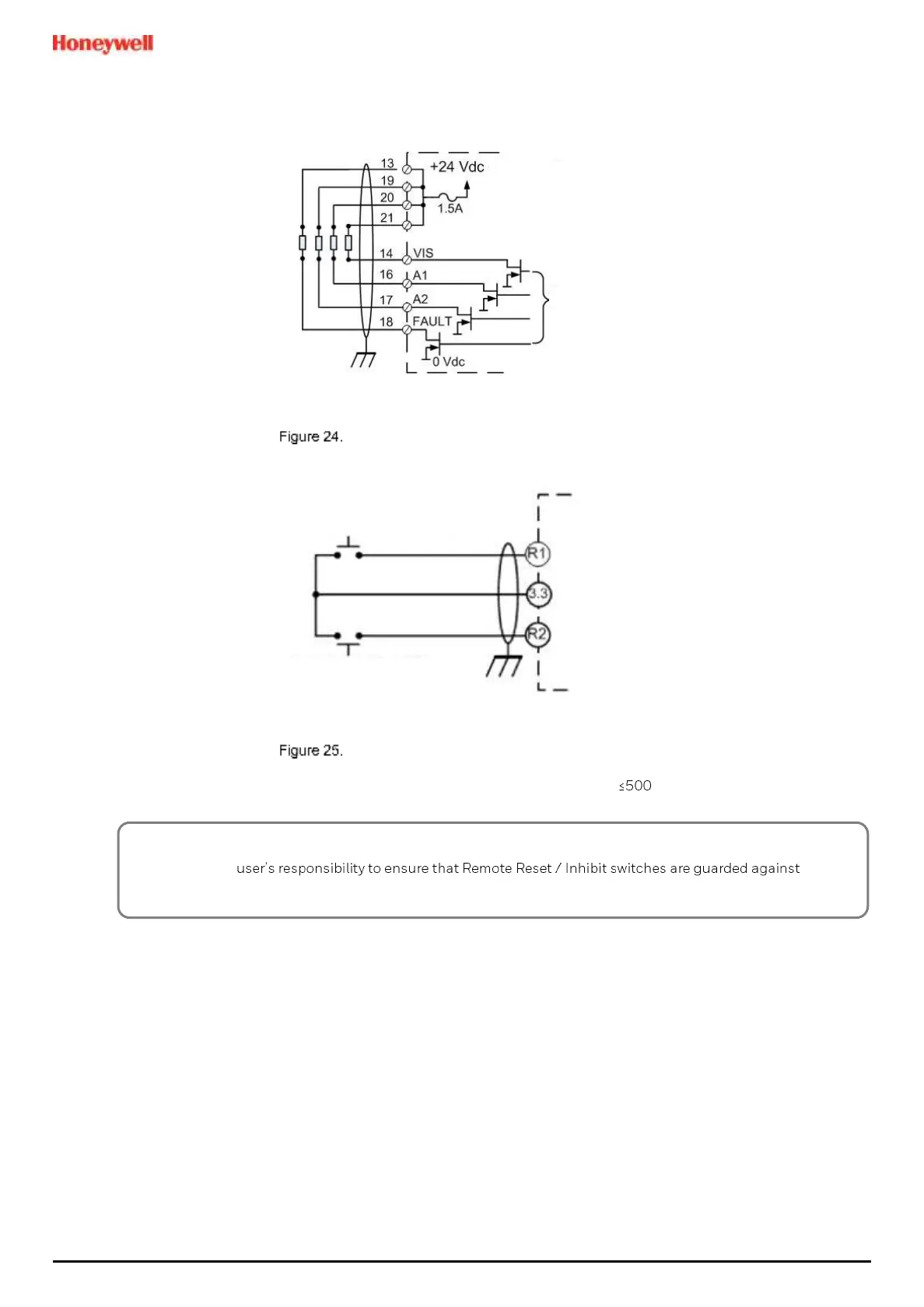

Dedicated Alarm Circuit Connections
Optional Remote Reset and Inhibit Switch Connections
Maximum R
loop
resistance for a remote reset/inhibit switch is 18 Ω, for instance m of 1 mm
2
shielded cable.
Touchpoint
Plus
Main Module
Open
Drain
R Load
Touchpoint Plus
Main Module
Reset
(NO non-latched Sw.)
Inhibit
(NO latched Sw.)
WARNING
It is the
unauthorised access or tampering.
