Command Builds
"
Where possible use sectored action instead of command build action.
¨
There can be up to 255 Command builds per panel
¨
a Command build can only be set up with one trigger (can be a range)
¨
a Command build can be triggered:
•
for reversible action (automatic deaction on removal of trigger)
•
or non-reversible action, (deactioned by another Command
build for a non-fire trigger or reset for a fire trigger).
¨
the Command build trigger for Zone tasks reside under the zone
menu/function
¨
Command builds that are triggered through a Sector fire event
will deaction on fire reset. This is independent of whether the
Sector is configured to deaction on silence alarms
¨
Command builds that are configured for turn Off actions have
no reverse action to turn On again, another Command build or
manual action is required
¨
Command builds can be used under fire and non fire conditions
to carry out pre-configured actions built up from the Control
menu command
¨
a Command build can only be set up to perform one action (can
be a range), any split range would require a second Command
build
¨
each Command build can be given a 40 character label to be
displayed and/or printed when triggered. If no label is given
then nothing will be displayed
¨
if a label is given, the local buzzer will operate for 1 minute
when the Command build is active
¨
Command builds are logged with an On/Off time, this
information can be viewed by selecting [info] -> <etc> ->
[Event]-> <etc> -> [Supervis]-> [Log] -> [Enter] and if still
On via [Info]-> [Event]-> <etc> -> [Supervis]-> [Active] ->
[Enter], this is only possible if a label has been given to the
Command Build
¨
when speed of operation is required the lowest number
Command builds should be used as these are processed first
¨
if a digital output line is to be actioned by a Command build,
the I/O line should not be assigned to a Sector as it may
deaction when the silence alarms is pressed regardless of the
Command build still being active
¨
a fire condition takes priority over a Command build
&
Take great care not to action a digital output to an
input line, as this will effectively disable the input.
Commissioning instructions
152 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.

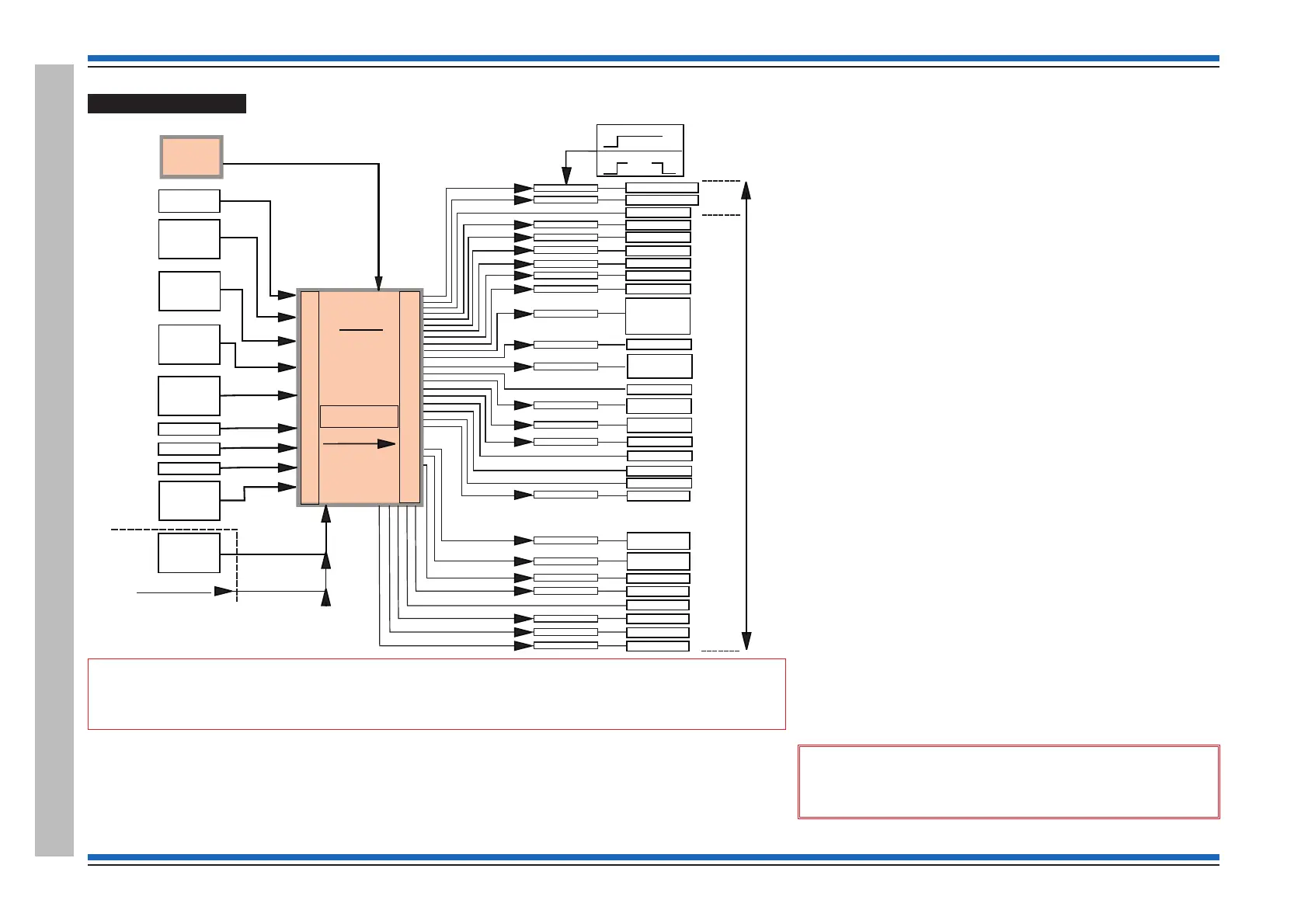

Appendix C - Guidelines for standalone system commands
