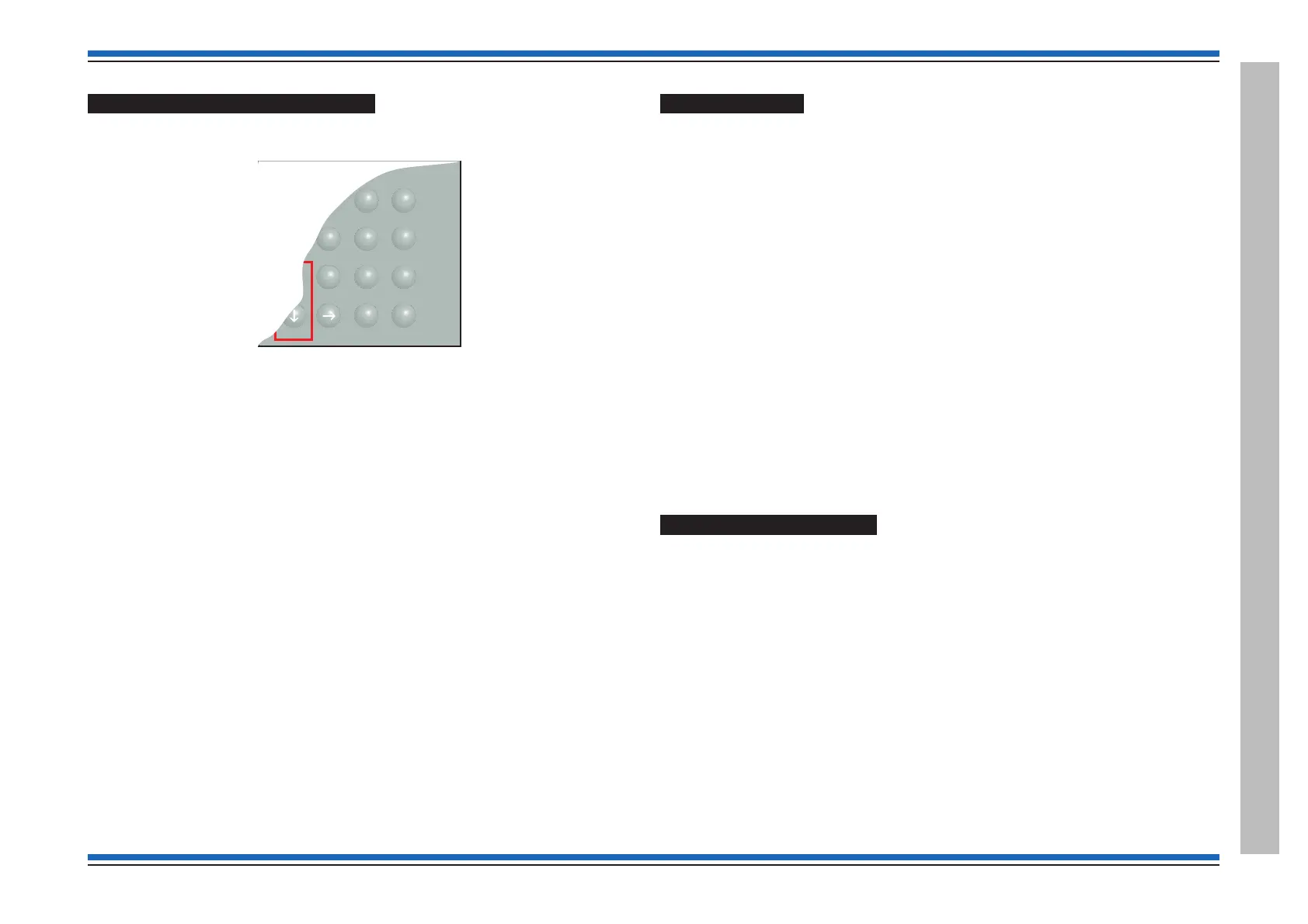

How to configure the 'U' buttons
The U1, U2, U3 and U4 buttons are active at access level 2, that is the buttons are accessible by
opening the panel outer door.
To operate a 'U' button first press the 'Shift' key and then the respective 'U' button. Each 'U' button
is linked with a command build:
¨
U1 button will trigger command build number 251
¨
U2 button will trigger command build number 252
¨
U3 button will trigger command build number 253
¨
U4 button will trigger command build number 254
During commissioning the required command build action must be configured.
Example
This example shows how to configure the U1 button such that pressing it will start the master alarm
sounders and pressing 'U1' button again or pressing the Silence alarm button will stop the
sounders.
The following procedures assume a password entry is not required.
# - will appear if a PIN is setup.
Press Menu On/Off button and select [SetUp] -> [Usercode]# , momentarily press <etc> to
select [SetUp] -> [Build] and type in the command build number 251, select [Action] -> [Start
MA] -> [Enter] -> [Reversbl] -> [Enter]. The U1 button is now configured to start the master alarm
sounders.
Factory settings
An EN Vigilon 4/6 loop control panel has the following factory settings:
System configuration
¨
All devices are assigned to Sector 1
¨
All devices are assigned to Zone 1
Port settings
¨
P3 - USB (on MCC)
Options:
P0 - RS232 - (Terminal card - terminals P4) when an optional IOC is fitted in slot P2 of backplane
P1 - RS485 - (Terminal card - terminals P4) when an optional IOC is fitted in slot P2 of backplane
Addresses
¨
Domain address - 1 for EN panel and 0 for BS Panel
¨
Panel (Node) address - 1
NVM protect
¨
Software 'write' allowed (NVM protect - disabled)
¨
Hardware 'write' allowed (NVM protect -disabled)
How to fit the outer door
To fit the outer door you will first need to close the inner door and secure it to the backbox using the
two fasteners located on the right edge of the inner door.
Fit the Outer door to the enclosure by hooking it onto the side hinge pins. The outer door may be
secured to the backbox using the key lock.
4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms. 33
Vigilon 4/6 loops & Compact (VA) panels & network nodes
Vigilon 4/6 loop Panels
0
+
:
,
-
;
.
)
P
U1
U2
U3
U4
Fire
Insert
Delete
Space
Enter
;
Part of the Keyboard
