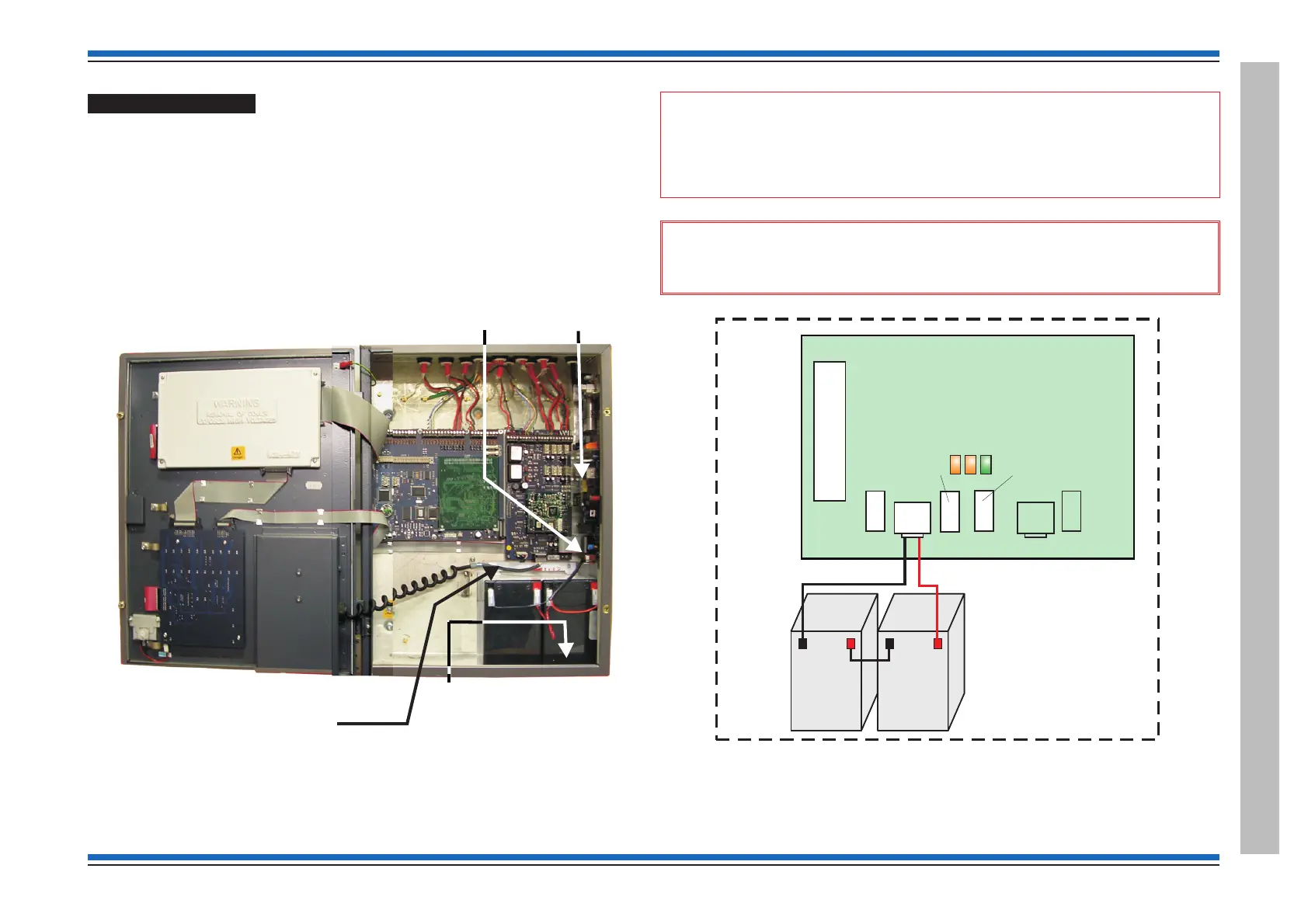

Battery Installation
¨
A battery lead supplied in the spares pack must be fitted to the Power supply board,
connector P7 labelled BAT1. The next step is to install the batteries inside the
enclosure, which requires removal of battery brackets from the backbox and then
installation of the batteries in correct orientation, standing on the small side with
terminals at the top facing outwards. Secure the batteries by refitting the battery
brackets.
¨
Switch On the mains supply to the panel and then make the connections to the battery.
"
The panel makes use of sealed lead acid type batteries which can have a
useful life of 5 years or more from the date of manufacture. It is strongly recommended
that batteries are replaced after 4 years of use.
All batteries must be disposed of as per
recommendation made by the battery manufacturer and in accordance with local regulations.
&
Always use the recommended replacement battery, as there is a risk of
an explosion if incorrect batteries are used.
4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms. 49
Vigilon 4/6 loops & Compact (VA) panels & network nodes
Vigilon Compact Voice Alarm Panel - (legacy product)
Battery brackets
secured with two nuts
Battery lead connects
to PSU board P2 Bat1
Battery brackets
secured with two screws
Panel with doors open
PSU
Black
Red
2 - 12V 12Ah battery
P3
43V
FS6
1A
24V FS4 - 1A
P7
BAT1
Bat1 - FS1 - 3.15A
+
-
Y1 Y2 G1
PANEL
PSU BOARD
-
+
-
+
