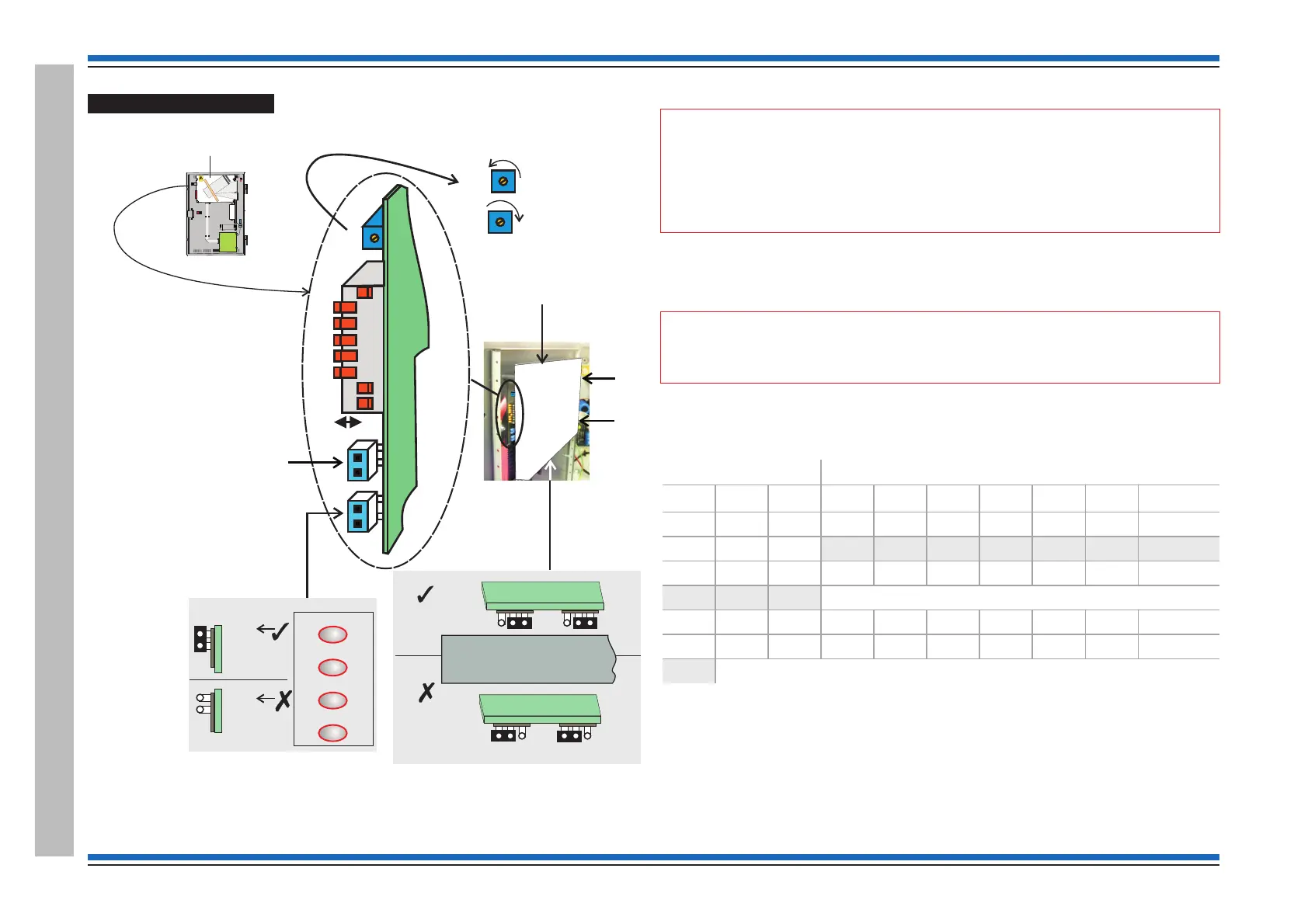

Setting the DKC card
The links, pot and switch on the DKC are factory configured as shown below.
Control buttons
"
The emergency control buttons must always be left in an enabled state, with the 'control
buttons' link fitted.
There is no indication given at the panel when the link is set for inactive controls.
Display Contrast
¨
The display contrast is set using the Pot RV1 on the DAC, which is factory adjusted
for optimum contrast. You can also adjust the contrast using the menu option under
[Test/Eng], see Appendix A menu maps.
"
The contrast adjustment function using the menu options may not be
applicable for some older build of panels.
Domain Address and baud rate settings
Typically the Baud rate set using these switches should be the same as the setting made using the
[TestEng] menu. The baud rate set must be backed up to the NVM. Where a baud rate value that
can only be achieved by [Test/Eng] menu, this must be set using the menu and backed up to NVM.
Baud Rate Domain address
1
2 Baud
3
4
5678Address
Off Off 1200 Off Off Off Off Off Off 64
Off On 2400 Off Off Off Off Off On 1
On Off 9600 Off Off Off Off On Off 2
On On 19200 etc
On On On On On Off 62
On On On On On On 63
Factory set domain address - 1 with 19200 baud (see SHADED cells)
Zone indicators
The Zone indicators are enabled for normal operation at an EN control panel and must NOT be
disabled.
The zone indicators are not applicable on a Network node nor on a BS Control panel. On these
products the 'zone indicator' links are set in the 'disable' position.
Commissioning instructions
26 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Vigilon 4/6 loop Panels
DKC ASSEMBLY
WARNING
REMOVAL OF COVER
EXPOSES HIGHVH
VOLTAGES
Inner door assembly
Danger
RV1
Sound Alarms
Silence Alarms
Reset
Verify
Control buttons
Inner door
1234
17 18 19 20
Zones
With Zone
indicators
(EN)
Display and
keyboard Card (DKC)
Without Zone
indicators
(BS) panel or
Network node
P6
P1
Buttons
enabled
Buttons
disabled
Factory setting
is with link fitted
8
7
6
5
4
3
2
1
ON
SW1
RV1
LCD Contrast adjust
OFF
Clockwise -
Darker
Anti-Clockwise -
Lighter
Link is NOT USED
leave link fitted.
It is for special use
with keyswitch
application
