Commissioning instructions
46 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Vigilon Compact Voice Alarm Panel - (legacy product)

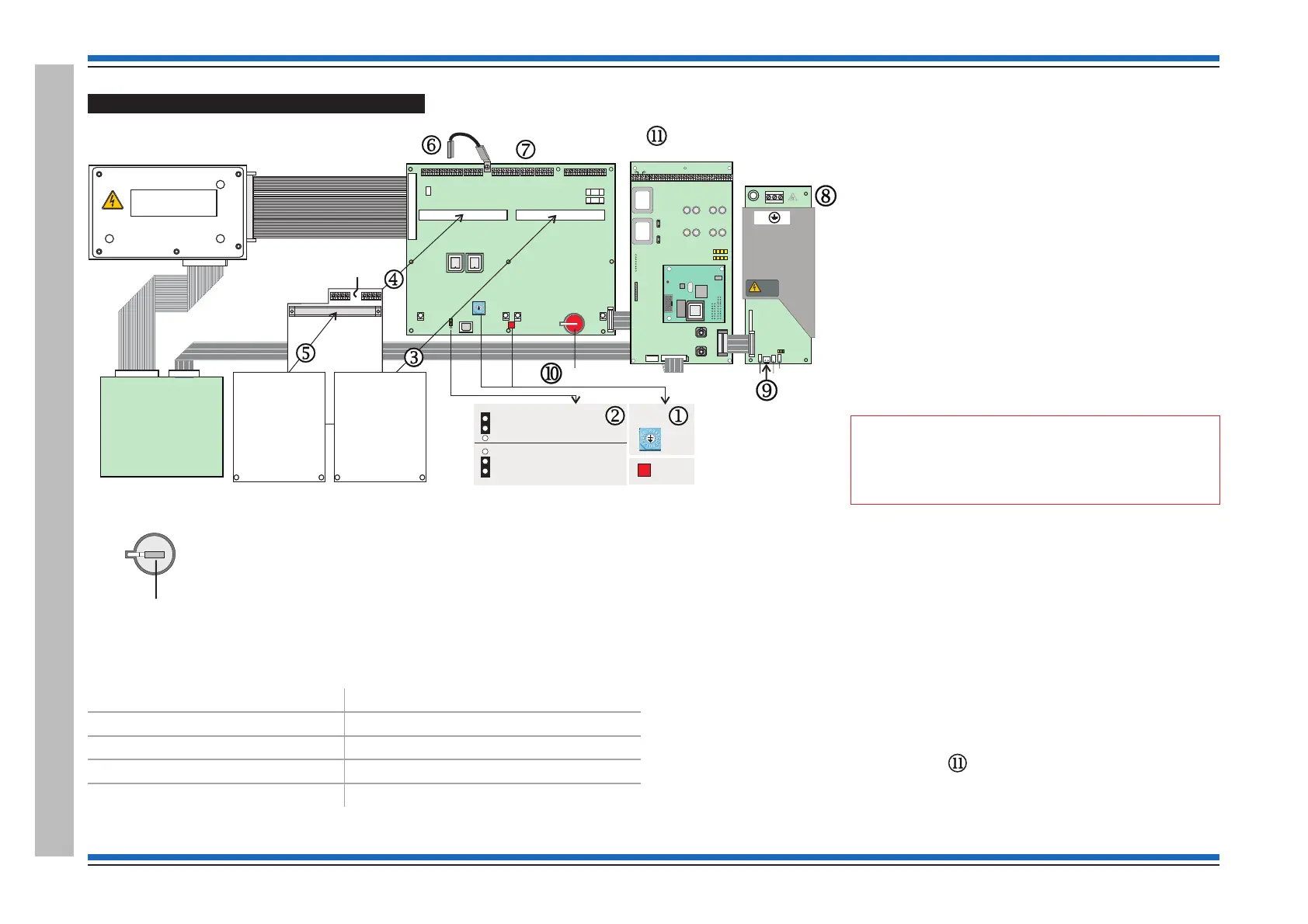

Cards and internal cables of the panel
Battery
The lithium battery s is disconnected on leaving the factory by means of an insulation disk over the top
connector. The insulation disk must be removed before powering up the system.
Setting the Rotary switch SW2
This switch is set to the required position for the panel build on leaving the factory. Before installing the Loop and Network cards into
the MCB ensure the rotary switch
j SW2 is set to an appropriate setting if it is used as a replacement in an existing panel.
Firmware in socket IC3 of MCB Applicable setting of switch SW2 on MCB
2211-148 0
2211-146 1
2211-136 2
2211-127 3
NVM hardware link P13
The NVM can be enabled or disabled by setting the hardware link
P13
k on the MCB. If the NVM protect is hardware disabled
then it is possible to software enable or disable the NVM using
the [Protect] option under the [Setup] menu at the panel.
Unprotect: Normally during commissioning the NVM is disabled
(unprotected) and writing to NVM is allowed.
Protect: Once the configuration is backed up to the NVM, the
hardware link must be placed in the enabled position to disallow
writing to the NVM.
Installing the Cards
The MCB can accommodate two Loop Cards. One Loop card l
can be fitted into the slot labelled CARD1 and the other Loop
card
n into the slot labelled CARD2.
" A networkable system has a Network Card m
fitted into the slot CARD 2 on MCB and additionally the
Network Card can accommodate the second Loop card.
Earth Link lead
An earth link lead o is supplied with the Network Card. This link
must be fitted to the spade connector on the top edge of MCB
with the other end to the spade connector on the Network Card.
Terminals
The terminal blocks p on the top edge of the MCB are used for
wiring external fire system circuits. The terminal block
q on the
top edge of the PSU is used for wiring the mains supply to the
panel. The connector
r located on the bottom edge of the PSU
board is used to accept battery cable. The terminals on the top
edge of the ACC are used to connect to the audio circuits.
Audio Control Card
Controls and indicators
WARNING
REMOVAL OF COVER
EXPOSES HIGH VOLTAGE
KEYBOARD INDICATORS AND DISPLAY
L2-
0V
L2+
L1-
0V
PB1A PB1B
P2
PP2
Network Card
Loop Card 2
P13
P13
SW1
RESET
SW2
MODE
NVM Protect - [Disabled]
NVM Protect - [Enabled]
BATT3
PB15 PB6
PB9
P2 CARD 1
IC3
KEYBOARD
IC16
POWER
SUPPLY
P12
MA2 - FS2 250mA
MA1 - FS1 250mA
P1 CARD 2
P16
P13
SW1
RESET
24V B A
0V
TX1RX1
0V
PB8
MA1+
MA1- MA2+
MA2-
0V
MIPNC C
NO
FIRMWARE
BACKUP
PB10
PB7
L1 0V L2 0V
24V
FS3 200mA
TX2 RX2
PB14
L1 0V L2 0V
NC
C
NO
NC
C
NO
NC
C
NO
PB11
Master Control
Board (MCB)
Remove
insulation disk
SW2
MODE
Loop Card 1
L1+
Audio Control Card (ACC)
Power Supply Unit
(PSU)
P2
P1
N
E
L
FS3 3.15A(T)
Mains fuse
P3
DANGER
FS6
1A TE5
43V
FS4 - 1A TE524V
P7
BAT1
FS1 - 3.15A TE5Bat 1
L
N
Warning
Removal of
cover exposes
live parts
DANGER
P6
P9
P2
P15
R
AB
PTT
0V
P10
PA2 PTT2
0V
P13
O/A O/B I/A I/B
AUDIO
LOOP 2
P12
O/A
O/B I/A I/B
AUDIO
LOOP 1
BGM
PA MI C 1
L
24V
P14
P4
AUDIO LOOP 1
AUDIO 1
AUDIO 2
P1 -
P3
SMT
P2
P9
-SMT
P4
LD1
0V
PA MI C2
BGM MPG MIC PA
MICROPHONE
P11
AUDIO LOOP 2
FS2
FS1
TE5 1A0
TE5 1A0
