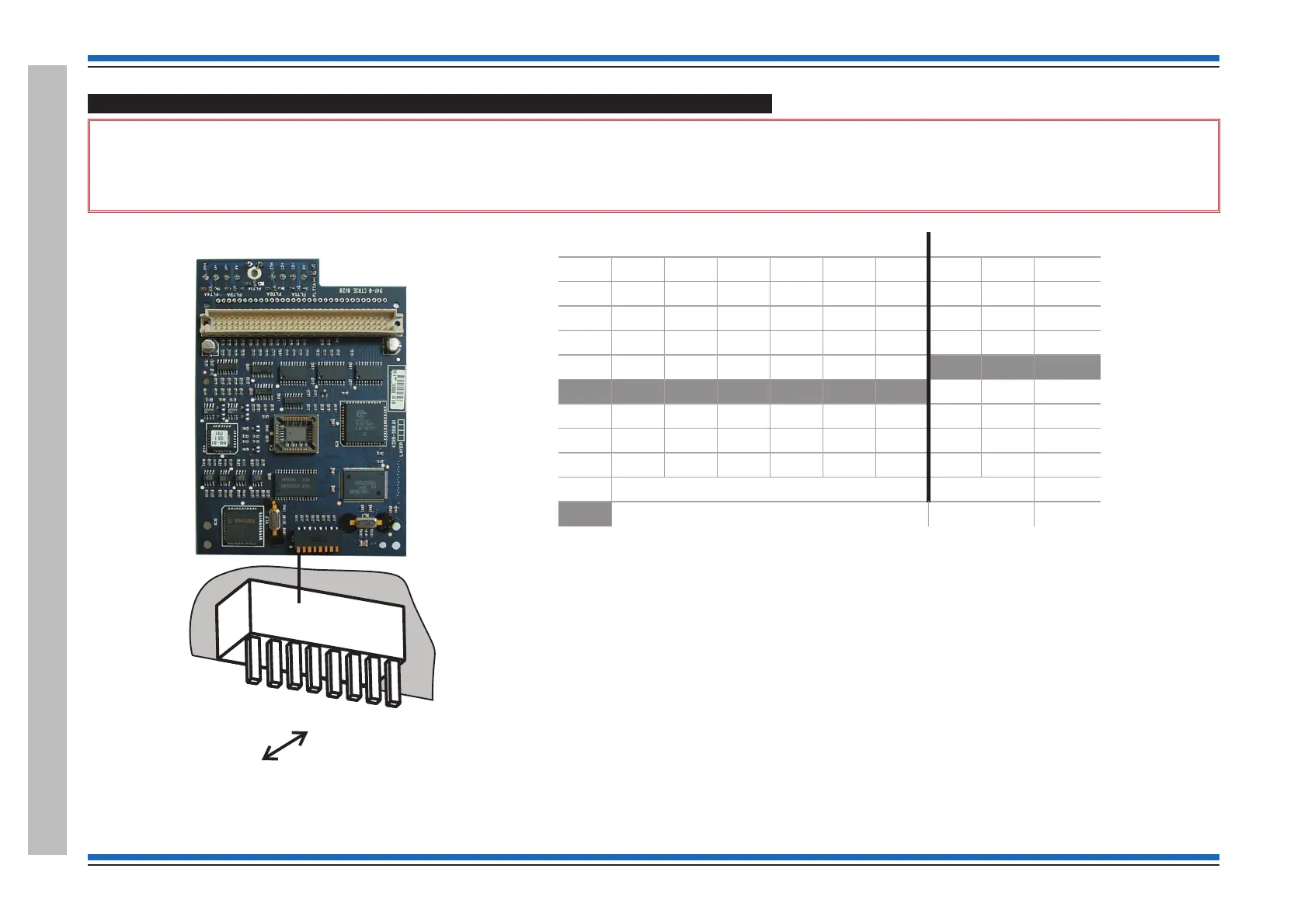

Network Card for VIGILON Compact - baud and node address switch settings

The copper network card for use in a Vigilon Compact panel is factory set to 38.4K baud with node address 4. Both node address and Baud rate can be

changed to another other setting by configuring the switches on the Network card.

Node address Baud rate

87654321

64 off off off off off off off off 2400

1 on off off off off off on off 9600

2 off on off off off off off on 19.2K

3 on on off off off off on on 38.4K

4 off off on off off off

63 on on on on on on

Address Baud

- factory settings

Commissioning instructions

86 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.

Vigilon Compact Network

12345678

off

Component side
