Appendix C - Guidelines for standalone system commands
Fire Protection Equipment (FPE)
¨
There can more than one Interface configured FPE application in a Vigilon System.
FPE Interface can be a MV Interface unit S4-34411, but can be also be a S4-34415 or S4-34420.
Other interface units can also be configured as FPE, these include S4-34440-02, S4-34440-12, S4-34401 and
S4-34404.
¨
a FPE Interface device is automatically placed in plant Sector 32 (as default) and is unaffected by operation of
SOUND ALARMS control
¨
a FPE Interface device may be Enabled or Disabled from the panel menus select:
Menu On/Off button to select: [Control] -> [Enable] / [Disable] -> <etc> -> <etc> -> <etc> -[FPE] -> [E].
"
Where a FPE interface is required to be disabled
then use the FPE device disablement option.

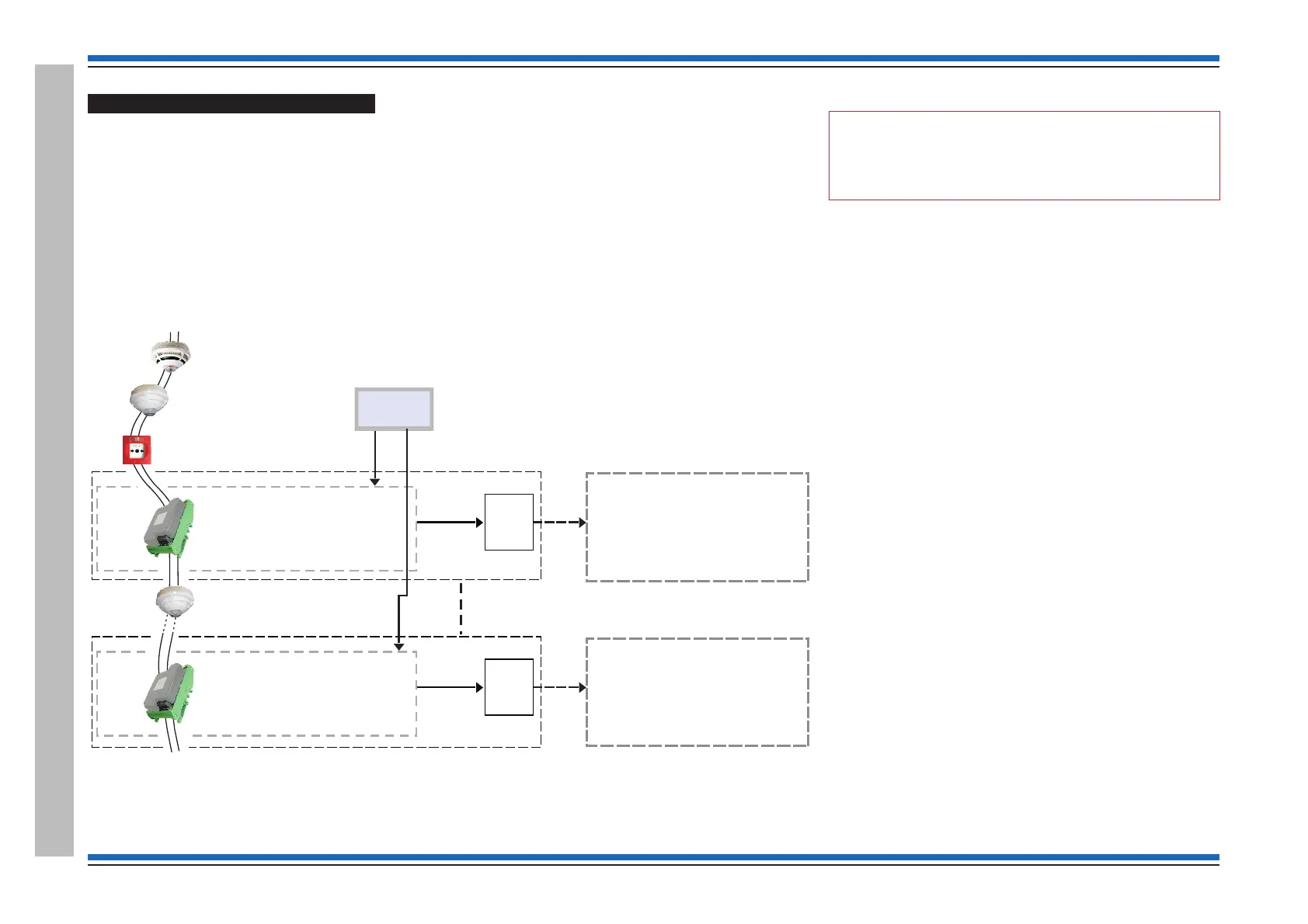

H
MCP
INTERFACE #
MORE THAN ONE INTERFACE #
DEVICE IN A VIGILON SYSTEM
CAN BE SET UP TO OPERATE AS
FIRE PROTECTION EQUIPMENT (FPE)
Sensor
Alarm
device
Duct mounted fire Dampers,
Fixed fire fighting system,
Sprinkler or water spray system
Smoke and Heat control system or
Hold open device for fire / smoke doors
FPE
ENABLED OR
DISABLED
ACTION
SETUP
as FPE
Vigilon loop
INTERFACE #
Duct mounted fire Dampers,
Fixed fire fighting system,
Sprinkler or water spray system
Smoke and Heat control system or
Hold open device for fire / smoke doors
ACTION
SETUP
as FPE
# - Can be a MV Interface unit S4-34411 or S4-34415
FPE
MORE THAN ONE INTERFACE #
DEVICE IN A VIGILON SYSTEM
CAN BE SET UP TO OPERATE AS
FIRE PROTECTION EQUIPMENT (FPE)
