S-Cubed Mark I
"
The S-Cubed Mark 1 strobe outputs is not
compliant to EN54 part 23. The S-Cubed Mark 3 Visual
Alarm Devices are compliant to EN54 part 23.
¨
An S-Cubed device can operate in Tone or Voice
mode dependent on type.
¨
All S-Cubed in a system can share a common start
volume setting from a range between 16% to 100%
sound output.
¨
All S-Cubed in a system can share a common soft
start facility, if set the sound output will increment
the volume every 0.25s from a defined start level to
maximum output.

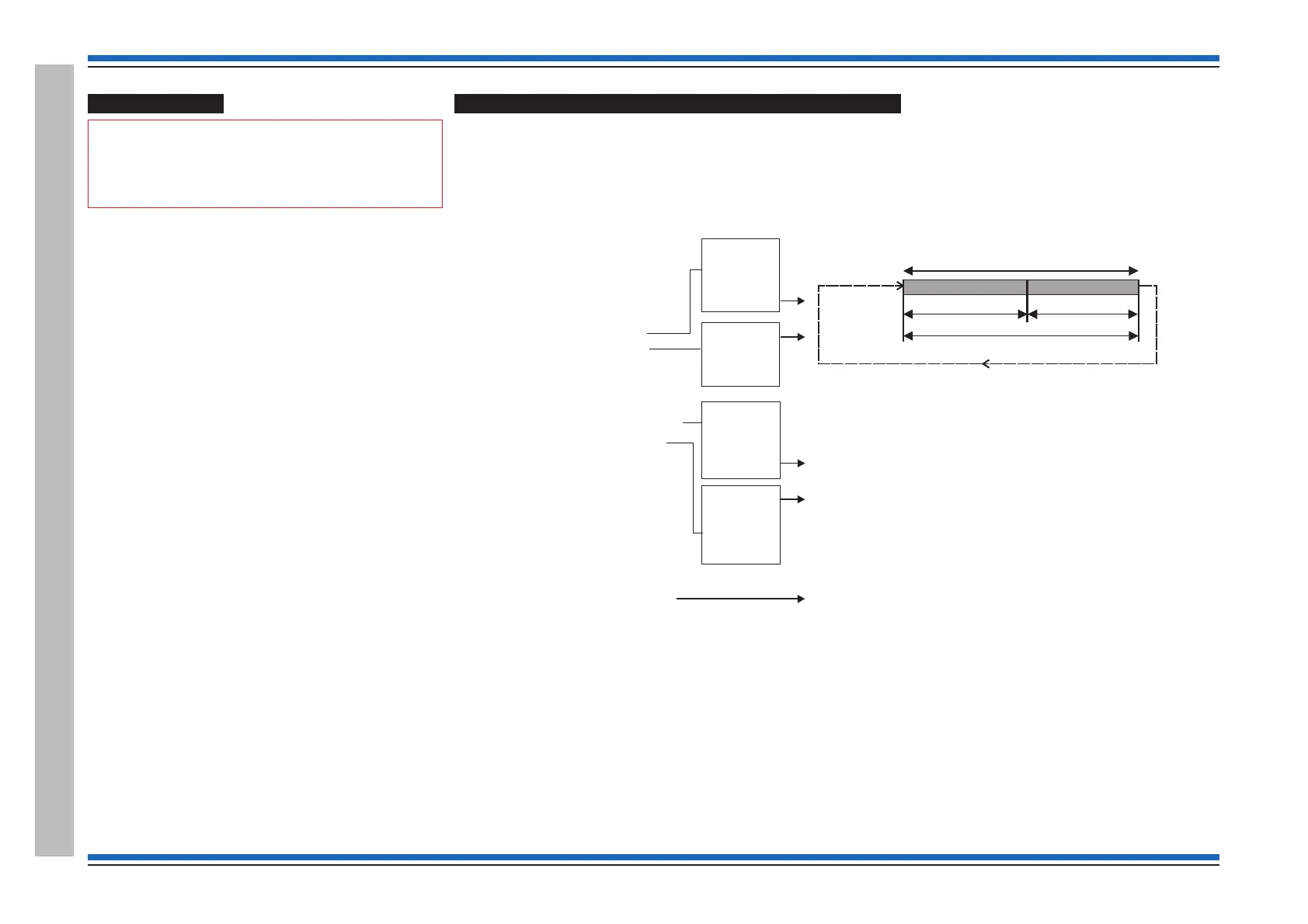

Voice and Sounder mode pluse VAD/Strobe action
¨
S-Cubed/S-Quad operating in tone mode allows selection from a range of low and high frequency tones that are
outputted according to FAB/SAB settings, see sounders configurations section.
¨
S-Cubed/S-Quad set for Voice mode operation allows selection from a range of tones and messages that span over 10
seconds duration. The tones and messages are those held in respective S-Cubed/S-Quad device.
Commissioning instructions
158 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Appendix C - Guidelines for standalone system commands
Voice
The Sounder provides
sound output over a duration
as defined by the FAB/SAB
held at the control panel
The Speech only
provides voice message
with tone output.
If actioned:
VAD:
Signal 1, Signals 2 or Signal 3 will provide VAD output at 1Hz.
Strobe:
Signal 1 will provide strobe output at 0.5Hz
Signals 2 or Signal 3 will provide strobe output at 1Hz.
Standard Tone
Tone 1
Tone 2
“
“
Tone 7
Standard Tone
Tone 1
Tone 2
“
“
Tone 15
Message 1
Message 2
“
“
Message 7
Standard Tone
Tone 1
Tone 2
“
“
Tone 15
Attention tone Speech Message
StdtoneorTonen
10 seconds period
Message
Tone + Message
Tone only
Tone
The sequence repeated until Sounder is silenced
FAB/SAB is output, see Sounders
configuration held at the control panel
The VAD / Strobe output is
defined by what signal is being
actioned on the S-Cubed.
Sounder
VAD / Strobe
