169

[DeviceA-nqatplt-dns-dns] reaction trigger probe-pass 2

# If the number of consecutive probe failures reaches 2, the operation fails. The NQA client notifies the

feature of the operation failure.

[DeviceA-nqatplt-dns-dns] reaction trigger probe-fail 2

TCP template configuration example

Network requirements

As shown in Figure 56, configure a TCP template for a feature to perform the TCP operation to test

whether Device A can establish a TCP connection to Device B and process the server's response.

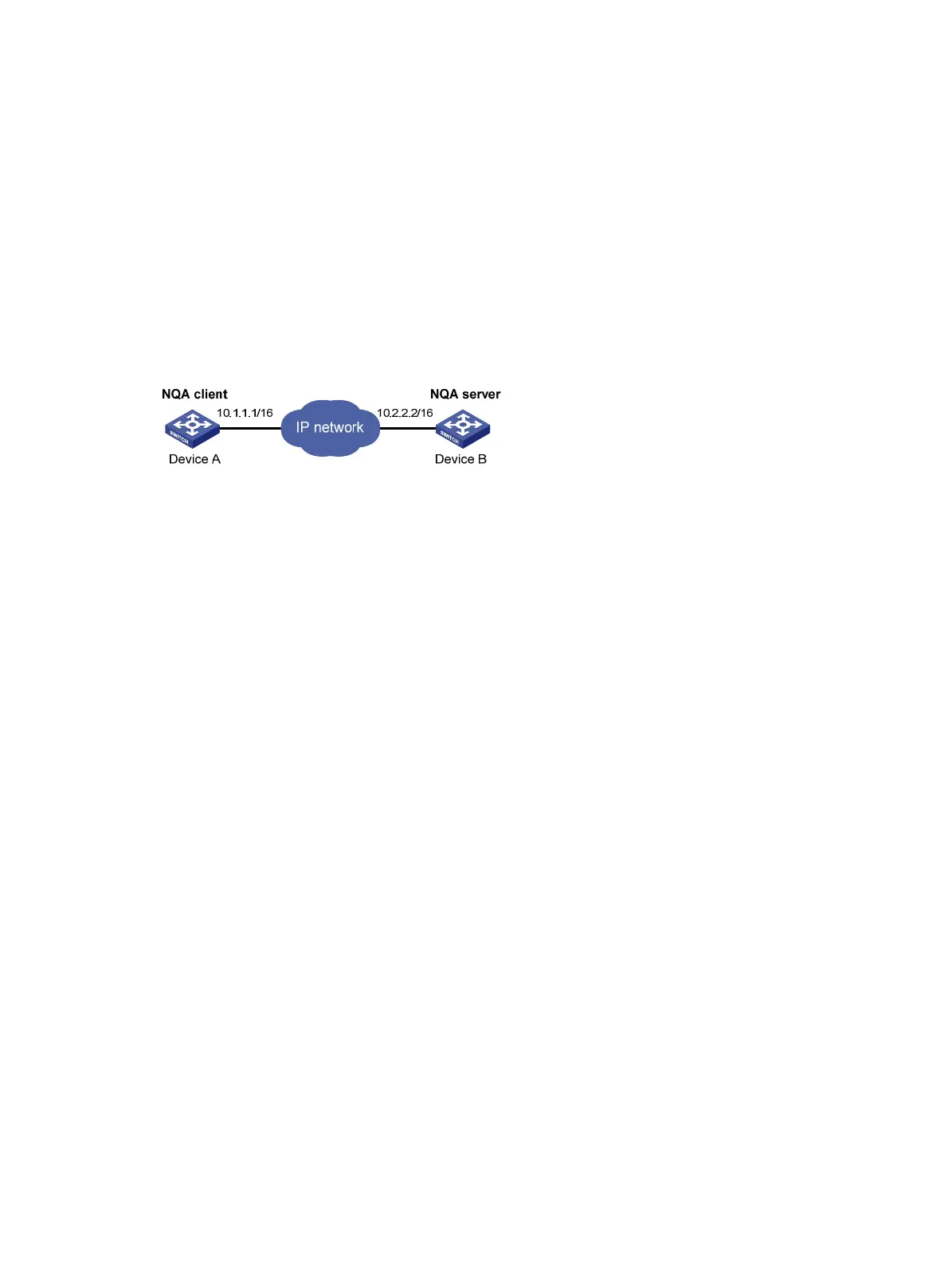

Figure 56 Network diagram

Configuration procedure

1. Assign each interface an IP address. (Details not shown.)

2. Configure static routes or a routing protocol to make sure the devices can reach each other.

(Details not shown.)

3. Configure Device B:

# Enable the NQA server, and configure a listening service to listen to the IP address 10.2.2.2 and

TCP port 9000.

<DeviceB> system-view

[DeviceB] nqa server enable

[DeviceB] nqa server tcp-connect 10.2.2.2 9000

4. Configure Device A:

# Create TCP template tcp.

<DeviceA> system-view

[DeviceA] nqa template tcp tcp

# Configure 10.2.2.2 as the destination IP address and port 9000 as the destination port.

[DeviceA-nqatplt-tcp-tcp] destination ip 10.2.2.2

[DeviceA-nqatplt-tcp-tcp] destination port 9000

# If the number of consecutive successful probes reaches 2, the operation succeeds. The NQA

client notifies the feature of the successful operation event.

[DeviceA-nqatplt-tcp-tcp] reaction trigger probe-pass 2

# If the number of consecutive probe failures reaches 2, the operation fails. The NQA client

notifies the feature of the operation failure.

[DeviceA-nqatplt-tcp-tcp] reaction trigger probe-fail 2
