Processor load order
The server holds up to two dual-core or quad-core processors on the system board. The sockets on
the system board are labeled Module 0 and Module 1. If the server has only one processor, it is
installed in socket 0. Install the second processor in socket 1.
See Figure 2 (page 10) for the processor socket numbers.
Table 7 Processor load order
SocketProcessor
Module 00
Module 11
Installing a processor and heat sink module
CAUTION: The pins on the processor socket are very fragile. Any damage to them might require
replacing the system board.
CAUTION: To avoid damage to the processor, verify that the plastic tabs on the processor are
pulled fully out before installation.
CAUTION: To avoid damage to the processor, handle the processor only by the edges. Do not
touch the bottom of the processor, especially the contact area.
CAUTION: To prevent possible server malfunction and damage to the equipment, multiprocessor
configurations must contain processors with the same part number.
CAUTION: To prevent thermal instability and damage to the server, do not separate the processor
from the heat sink after assembling.
The processor and heat sink ship as separate units and are coupled during installation into the
server.

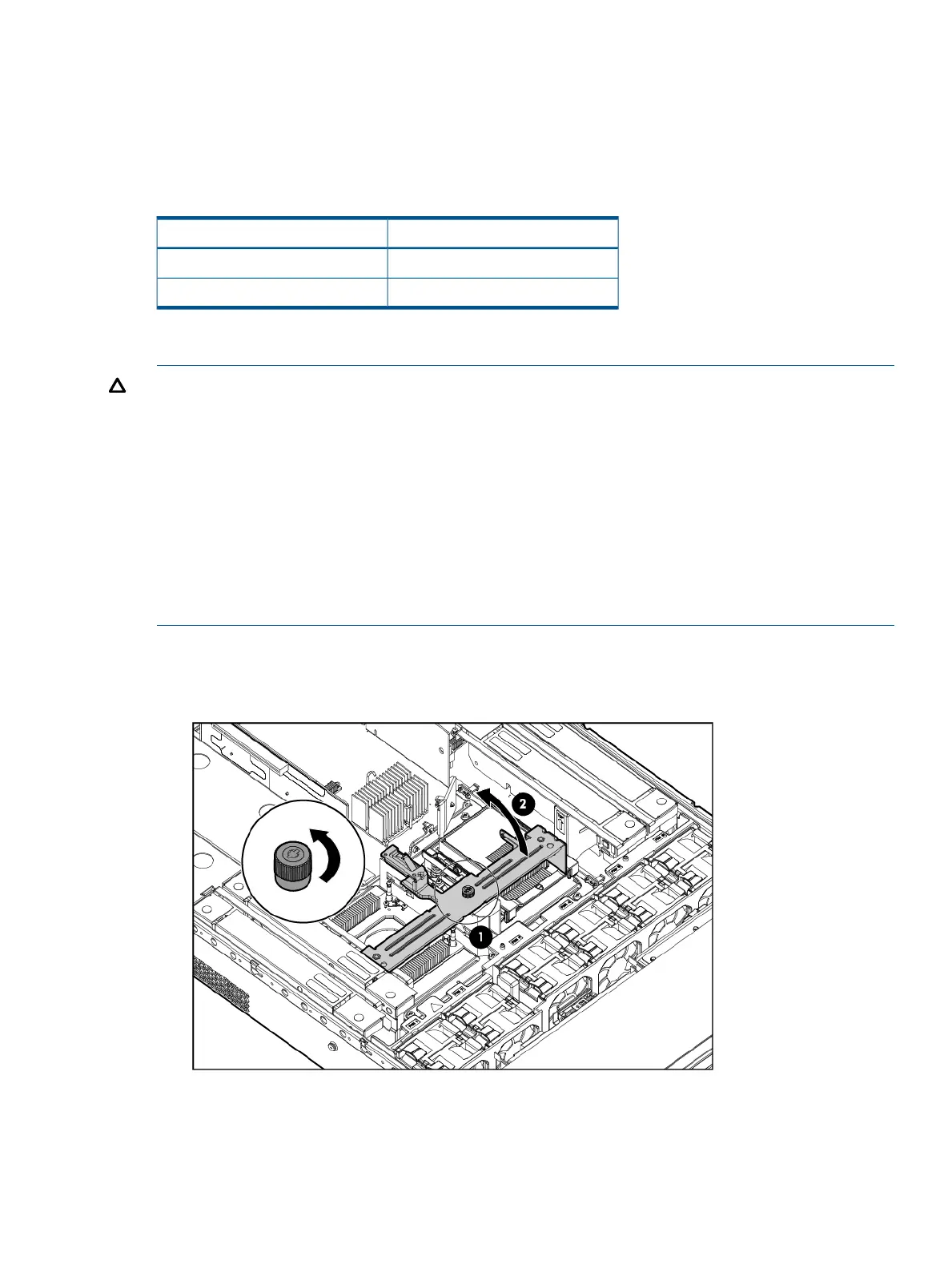

1. Open the processor cage.
2. Remove the processor airflow baffle.
Installing a processor 51
