Rear panel components

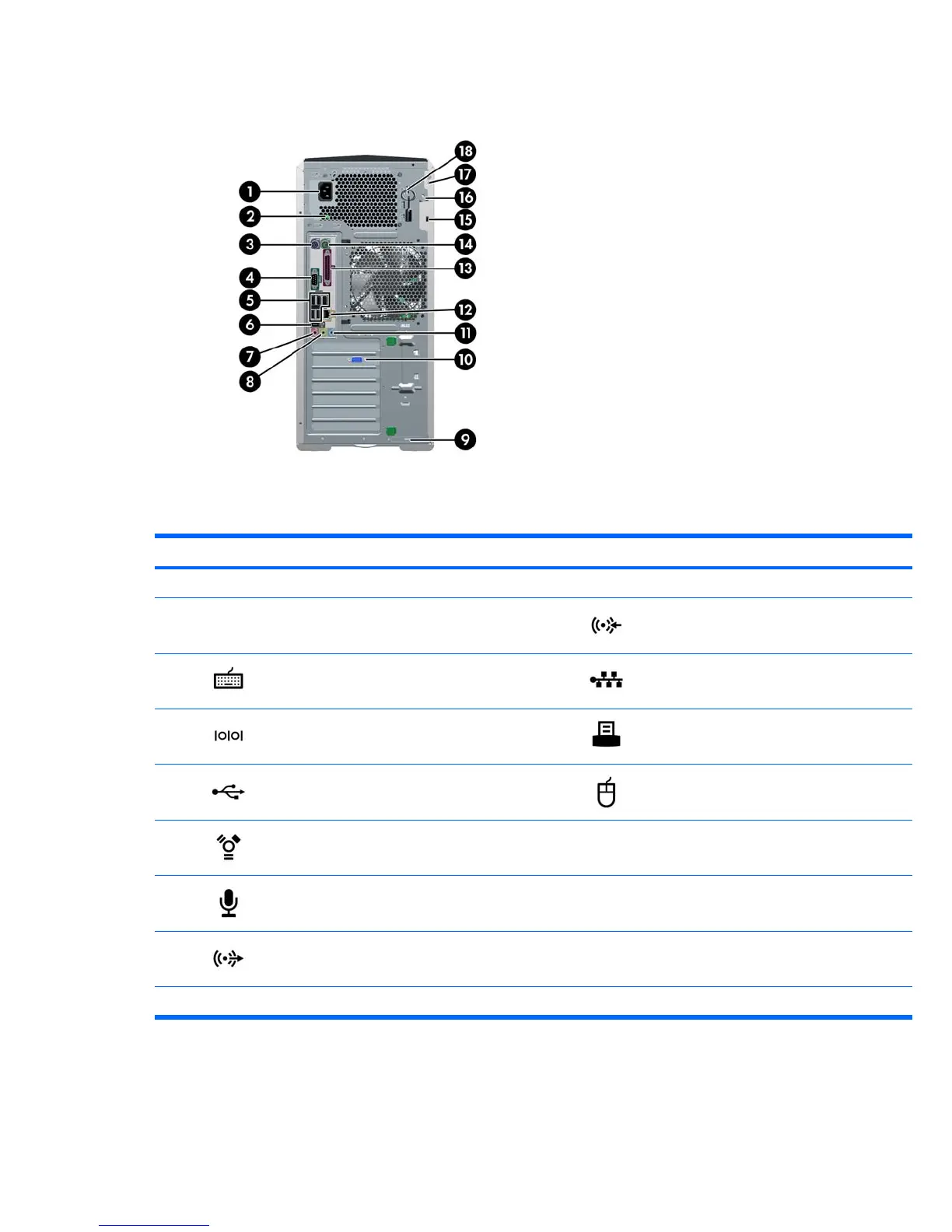

Figure 1-3 Rear panel components
Table 1-3 Rear panel components
Item Symbol Description Item Symbol Description
1 Power cord connector 10 Graphics adapter
2 Built In Self Test (BIST) LED 11 Audio line-in connector
3 Keyboard connector 12 RJ-45 network connector
4 Serial connector 13 Parallel connector
5 USB 2.0 ports 14 Mouse connector
6 IEEE-1394a connector 15 Cable lock slot
7 Microphone connector 16 Padlock loop
8 Audio line-out connector 17 Universal chassis clamp opening
9 MiniSAS 4–port connector (optional) 18 Access panel key
The rear panel connectors are labeled with industry-standard icons and colors to assist you in connecting your peripheral devices.
4 Chapter 1 Product overview ENWW
