HP XW8400 User Manual

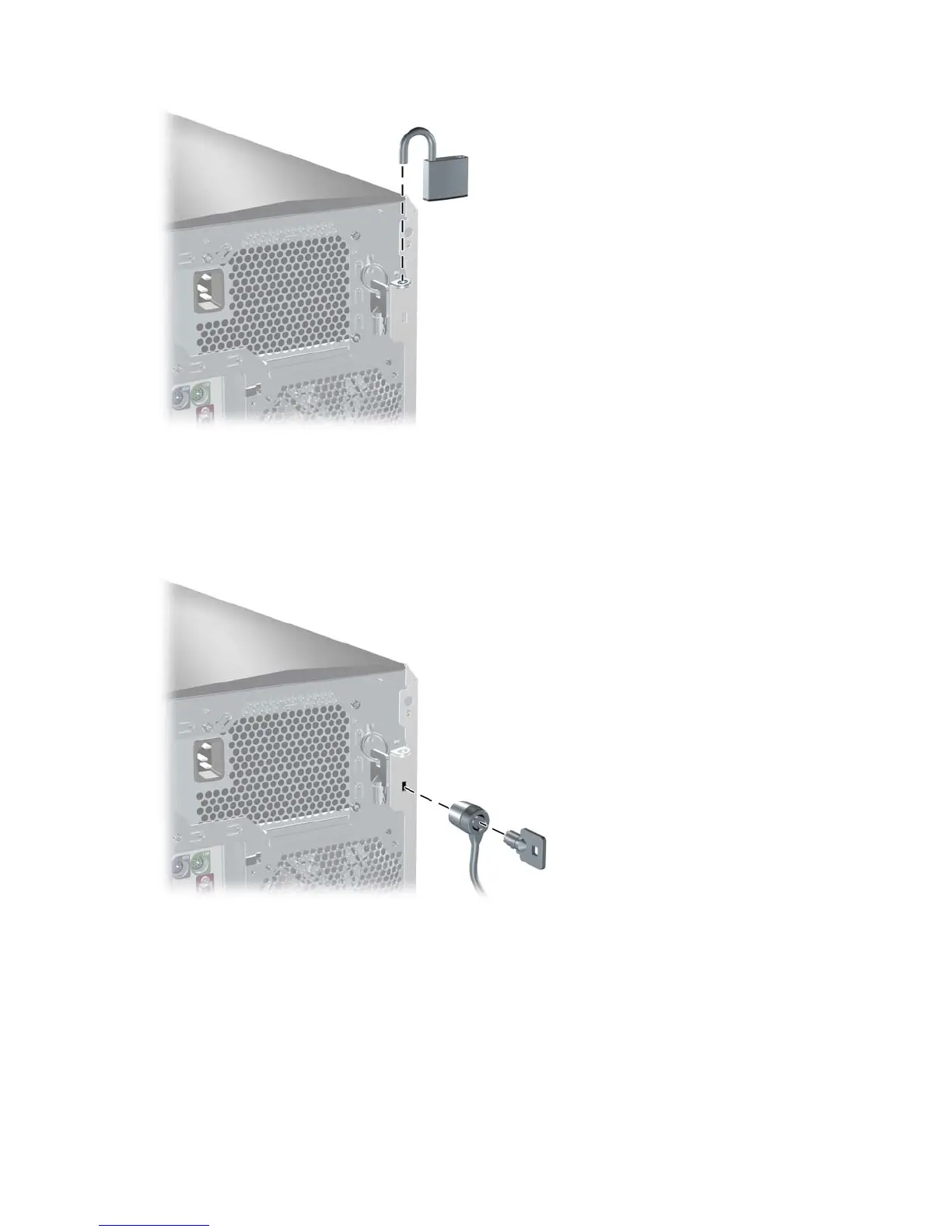

Figure 4-3 Removing the security lock
Removing the cable lock (optional)
If a cable lock is installed, remove it before servicing the unit. To remove the cable lock, unlock it and
pull it out of the cable lock slot as shown in the following image.
Figure 4-4 Removing the cable lock
Access panel
Before accessing the internal components of the workstation, the access panel must be removed.
To remove the access panel:
58 Chapter 4 Removal and replacement procedures ENWW

HP XW8400 Specifications

General

Processor Speed	Up to 3.0 GHz
Chipset	Intel 5000X
Power Supply	800W
Form Factor	Tower
Processor	Intel Xeon (Dual-core or Quad-core)
Memory	Up to 32 GB DDR2
Storage	SATA or SAS Hard Drives
Graphics	NVIDIA Quadro
Expansion Slots	2 PCI Express x16, 2 PCI
Operating System	Windows XP Professional
Optical Drive	DVD-ROM
USB Ports	7 USB 2.0
Network	Integrated Gigabit Ethernet
