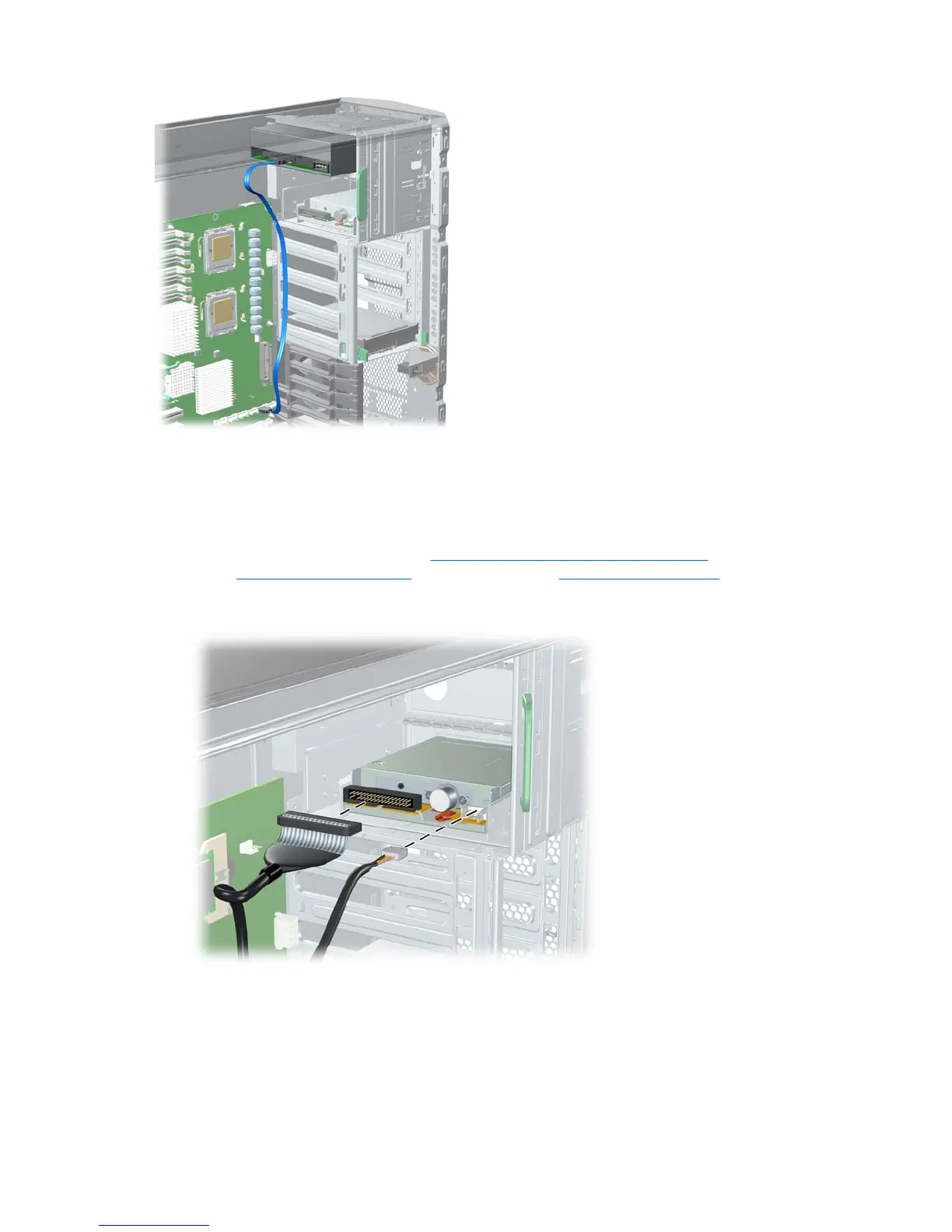

Figure 4-31 Connecting the SATA optical drive cable to the system board
Diskette drive (optional)
To remove a diskette drive:
1. Disconnect power from the system (
Pre-disassembly procedures on page 53). Remove the access
panel (
Access panel on page 58) and the front bezel (Front bezel on page 59).
2. Disconnect the cables from the back of the diskette drive.
Figure 4-32 Disconnecting cables from the diskette drive
80 Chapter 4 Removal and replacement procedures ENWW
