Device name Device class Position
number
Controller name Device
number
Two examples of how to use the worksheet are:
●
Three device installation
●
Four device installation
Example 1: Three device installation sample
A system has three devices: Ultra ATA-100 hard drive, CD-ROM drive, and a DVD drive. Using the
Device Class Table, the devices can be identified as:
●
Ultra ATA-100 hard drive = Class 1
●
DVD drive = Class 2
●
CD-ROM drive = Class 3

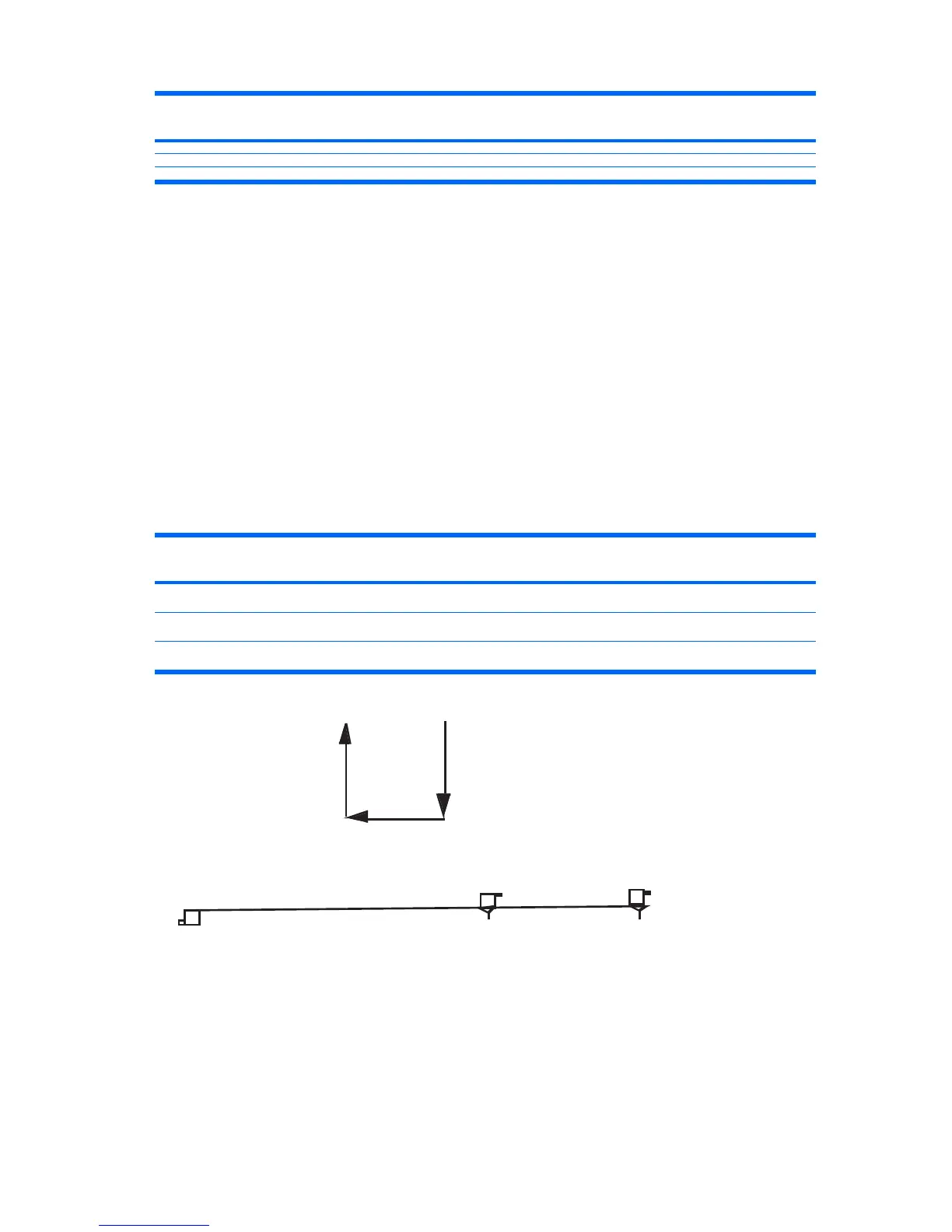

Table C-4 Attach sequence worksheet—Three device installation (sample)
Devicen ame Device class Position
number
Controller name Device
number
Ultra ATA-100 hard drive 1 1 Primary 0
DVD drive 2 2 Secondary 0
CD-ROM drive 3 3 Secondary 1
3
Primary
Controller*
41
Installing drive order (2)
Table C-3 Attach sequence worksheet (continued)
148 Appendix C Appendix C — Ultra ATA devices ENWW
