HP XW8400 User Manual

4. Press down on the ribbed portion of the system fan housing (3), rotate the fan housing down, and
lift the unit out of the chassis.

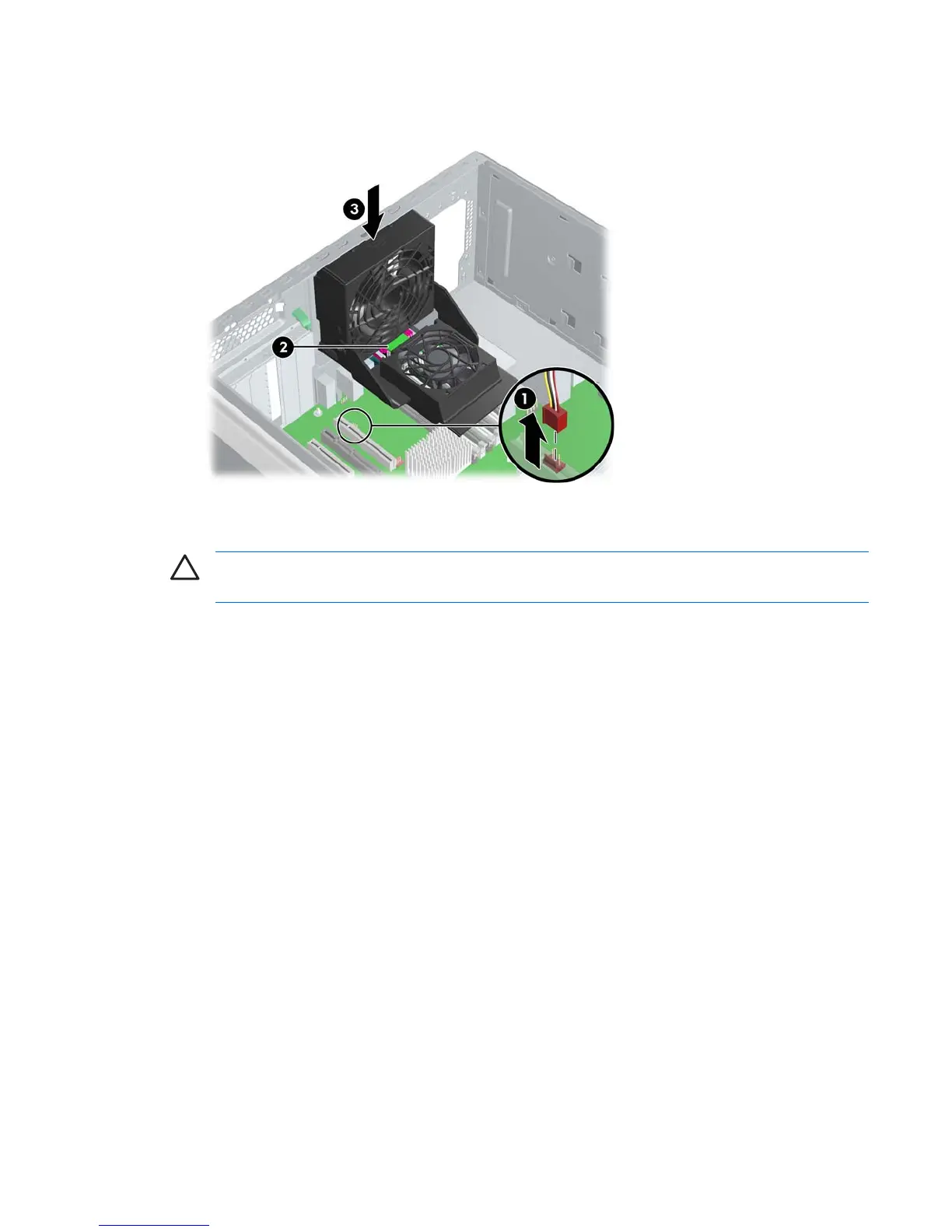

Figure 4-12 Removing the system/memory fan assembly
To replace a system/memory fan assembly, reverse the previous steps.
CAUTION When installing the system/memory fan assembly, be sure that the fan is situated
so that the airflow direction is going out of the chassis to avoid overheating.
Memory
Memory module features
●
Eight memory slots for DIMMs
●
512–MB, 1-GB , 2-GB, 4-GB pairs
●
32 GB maximum configuration with 4-GB DIMMs
●
Configurable for Single Channel (one DIMM), Dual Channel (two DIMMs), or Quad Channel (four
to eight DIMMs)
●
DDR2-667 or DDR2-533, Fully Buffered DIMMs (FBD)
●
No support for mirroring
●
No spare DIMM support
●
Standard FBD, ECC (72-bit ECC)
Memory module requirements
●
Use only PC2-5300F, FBDs. Certified and warranted HP memory is recommended.
●
Match DIMM pairs by size and type.
ENWW Removing and replacing components 65
