Eclipse Additional Information Page 33

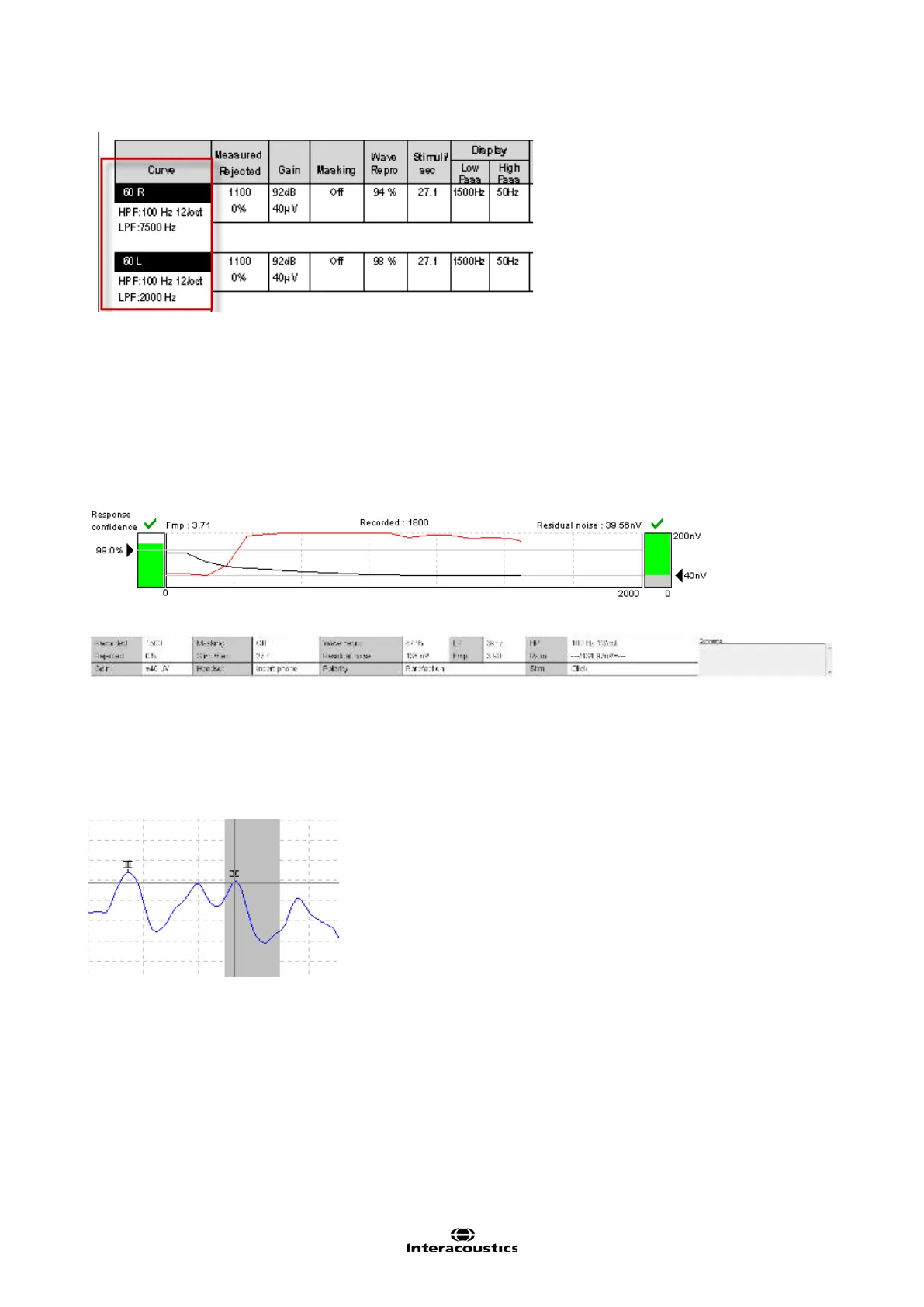

3.5.4 Show Condition / show Fmp Graph
It is possible to toggle between Show Fmp graph and Show Conditions in the Edit tab. By clicking Show
Conditions the summary of the test settings shown below appear. At the right of the table is the comments
box. Here you can add comments for each curve separately. These comments will be displayed only when
the corresponding curve is highlighted. All entered curve comments will be printed out on the Curves Condi-
tions page.
Show Fmp view:
Show condition view:
3.5.5 Latency Template
If latency templates are entered in the System Setup shaded areas indicating the template values will appear
during assignment of the various Waveform Markers.
Note Data for gender and age are taken from the database to provide a correct selection of the correspond-
ing latency template.
