Eclipse Additional Information Page 36
3.7 System Setup
3.7.1 Auto Protocols
From the File menu it is possible to enter the System Setup. From here it is possible to modify existing proto-
cols and create new protocols.
NOTICE Features not included by your license will be dimmed or not visible.
Here it is described how you can change and modify your test protocol in general. Please refer to the chapter
describing each test for information about protocols settings for a specific test.
Note. The Auto protocols tab is only available from the current session, and not from historic sessions. Refer
to the condition tab to see what parameters were used for the selected session.
3.7.1.1 Predefined protocol settings

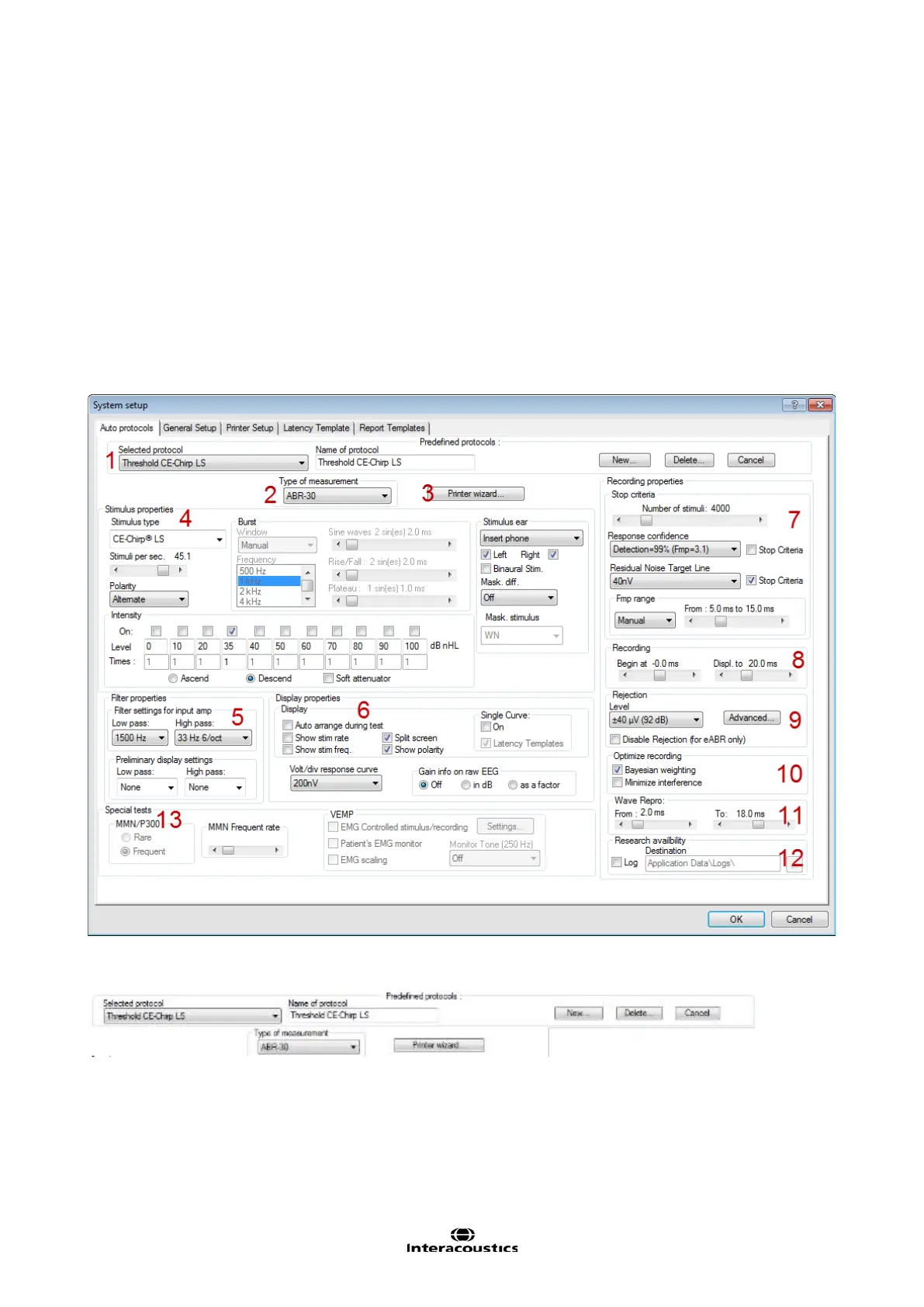

Select the icon New to create a new auto protocol as per all the options in this measurement setup box. En-
ter the name of your new test in the Name of protocol box. Please note that if no test has been made yet, the
New button is automatically pressed when this dialog box is entered which means that you do not need, and
cannot press New.
