4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 5
• Separate the generator from the engine.
• Remove the support rubber nut from engine foot side.
• Remove the support rubber while raising the engine.
INSTALLATION
3. Support Rubber
• Install the support rubber while raising the engine.
• Tighten the fixing nuts to the specified torque.
Engine foot side N∙m(kg∙m/lb∙ft)
82(8.4/61)
Crossmember side N∙m(kg∙m/lb∙ft)
40(4.1/30)

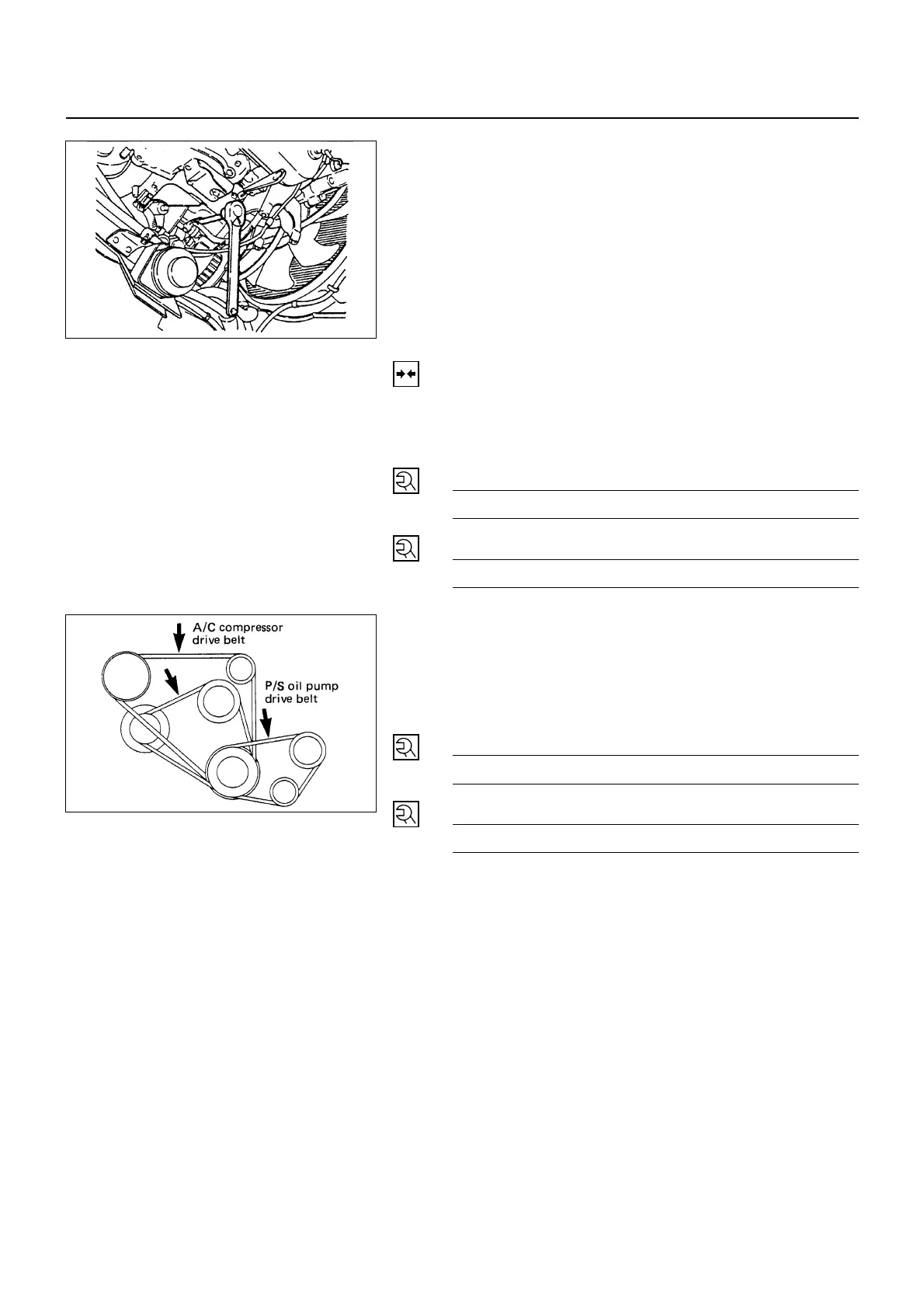

2. Fan Belt
• Install the fan belt.
• Depress the fan belt mid-portion with a 98N
(10kg/22lb) force.
• Tighten the fixing bolt to the specified torque.
Adjust plate lock bolt N∙m(kg∙m/lb∙ft)
19(1.9/14)
Generator fixing bolt N∙m(kg∙m/lb∙ft)
40(4.1/30)
1. Fan Shroud
• Install the fan shroud and clip the reservoir tank hose.
6A1-5-1.tif
6A1-5-2.tif
