6B - 6 ENGINE COOLING
ON-VEHICLE SERVICE
WATER PUMP
REMOVAL
Preparation:
• Disconnect battery ground cable.
• Drain coolant
1. Fan Shroud
• Remove the reservoir tank hose, bypass hose and fan
guide.
2. Cooling Fan Assembly
• Remove lock nut and take out cooling fan assembly.
3. Power Steering Pump Drive Belt
• Loosen the idler pulley lock nut and loosen adjust bolt,
and remove the drive belt.
4. A/C Compressor Drive Belt
• Loosen A/C compressor idler pulley lock nut and
adjust bolt and remove the drive belt.
6B-5-2.tif
6B-5-3.tif
6B-5-1.tif

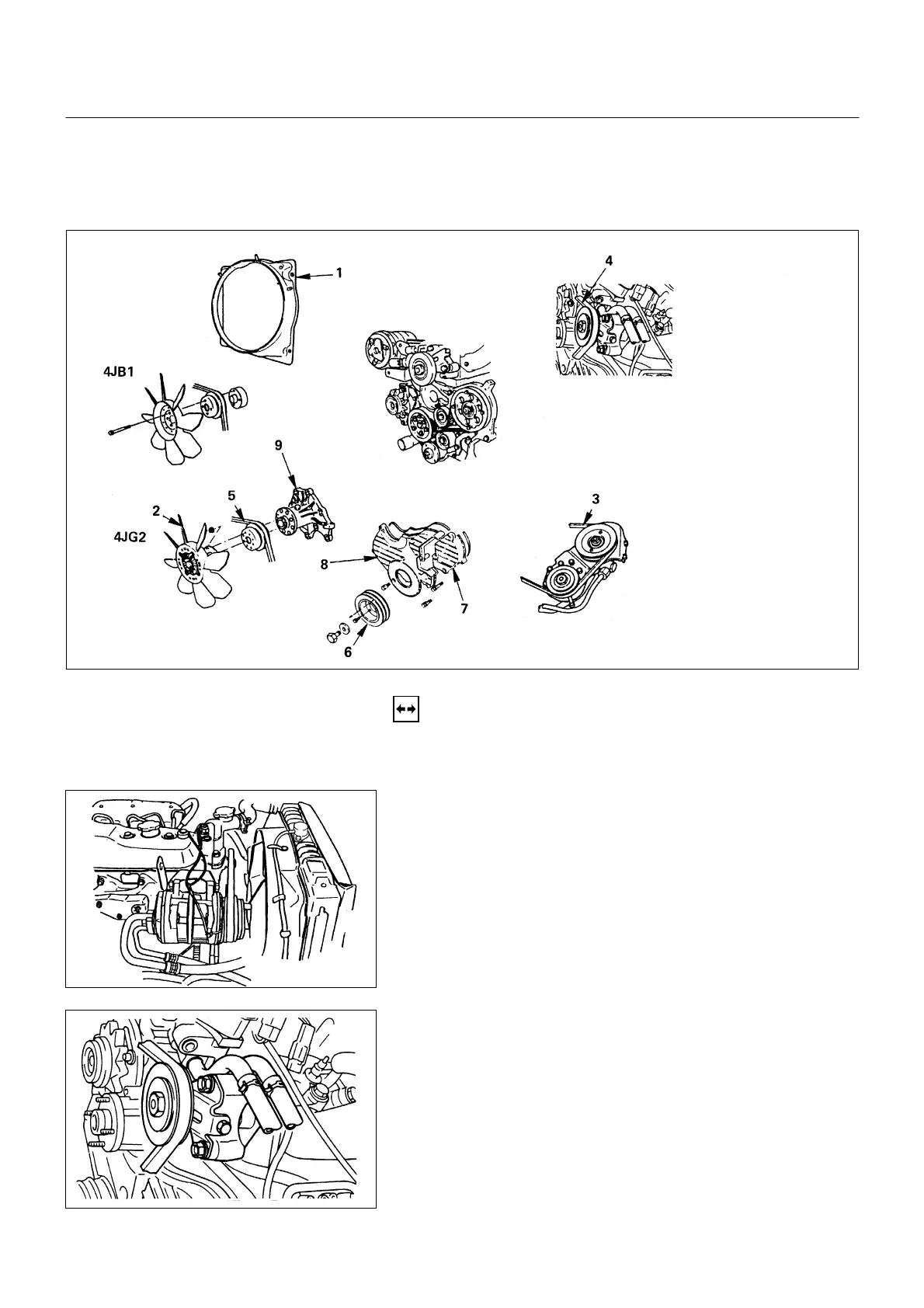

Removal steps
1. Fan shoroud
2. Cooling fan Assembly
3. Power steering pump drive
belt
4. A/C compressor drive belt
5. AC generator drive belt
6. Crankshaft damper pulley
7. Timing pulley upper cover
8. Timing pulley lower cover
9. Water pump Assembly
Installation steps
To install, follow the removal
steps in the reverse order.
To Next Page
