6C - 60 ENGINE FUEL

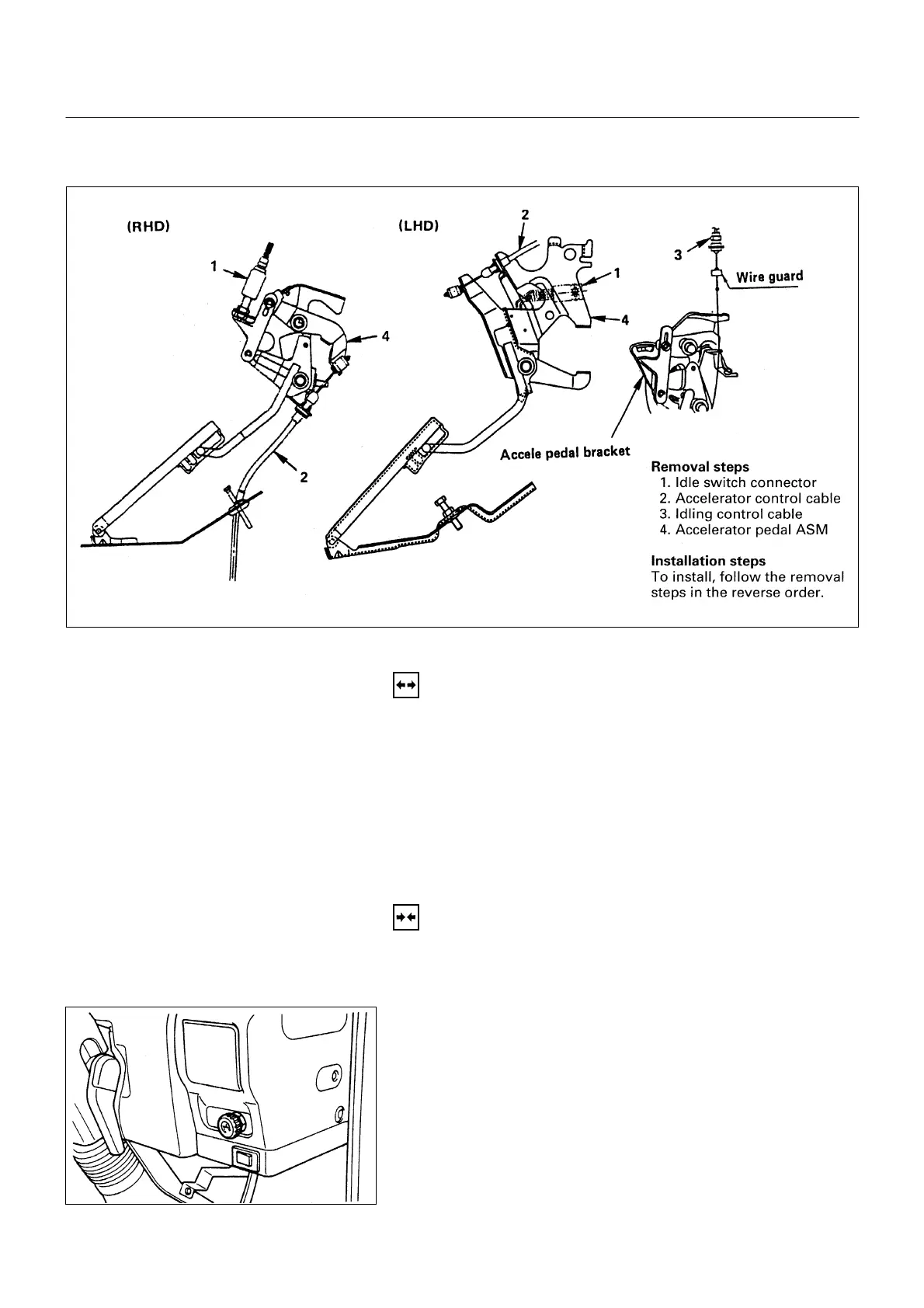

ACCELERATOR PEDAL

REMOVAL

1. Idle Switch Connector

2. Accelerator Control Cable

• Remove control cable from Accelerator pedal bracket.

3. Idling Control Cable

• Remove control cable from accelerator pedal bracket.

4. Accelerator Pedal Assembly

• Remove accelerator pedal assembly from brake pedal

bracket.

INSTALLATION

4. Accelerator Pedal Assembly

• Apply the sliding section with grease, and install it to

the brake pedal bracket.

3. Idling Control Cable

• Install the cable to the lever of the accelerator pedal

bracket.

2. Accelerator Control Cable

• After confirming that the idling control knob is fully

turned to the left, install the accelerator control cable.

1. Idle Switch Connector

6C-59-1.tif

6C-59-2.tif
